Byj-150 Tablet/Capsule Inspection Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
BYJ-150
Customized:
Non-Customized
Condition:
New
Warranty:
1 Year
Capacity:
120,000 PCS/Hour Tablet 50kg/Hour
Power Supply:
220V 50Hz
Machine Material:
Stainless Steel
Inspection Range:
Hard and Soft Capusle, Plain and Coated Tablets
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Type:
Medicine Detecting Instrument
Finished Dosage Form:
Tablet
Precision:
High Precision
Certification:
GMP, ISO
Voltage:
220V
Computerized:
Computerized

Product Description

working principle:

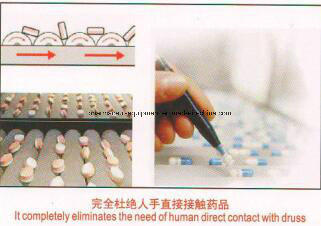

the product flows the feed hopper into a vibratory chute and continues to go through inspection stage in the form of single layer. then the perforated screen in vibratory chute eliminates coarse dust and chips which are collected in a container. the capsules and tablets from the vibratory chute are placed on rotating rollers and are continuously turned&moved front of the operator, who can uses the adjustable mirror to inspect the opposite parts of the products, and therefore a reliable all rounded inspection is achieved. the rotation speed of the inspection rollers is adjustable individually, independent of the inspection speed.

Byj-150 Tablet/Capsule Inspection Machine

Technical Parameters:

inspection range	hard and soft capsules, plain and coated tablets, circular and cylindrical objects, etc, mini thickness 3mm
capacity	capsule:120,000pcs/hour, tablet 50kg/hour
hopper volume	30L, 60L
voltage	220V/50hz, single phase or 110V/60hz, single phase
Overall dimensions	1400X650X1250mm(LXWXH)
power input	0.6kw
weight	125kg
Compressed air	6 bar
