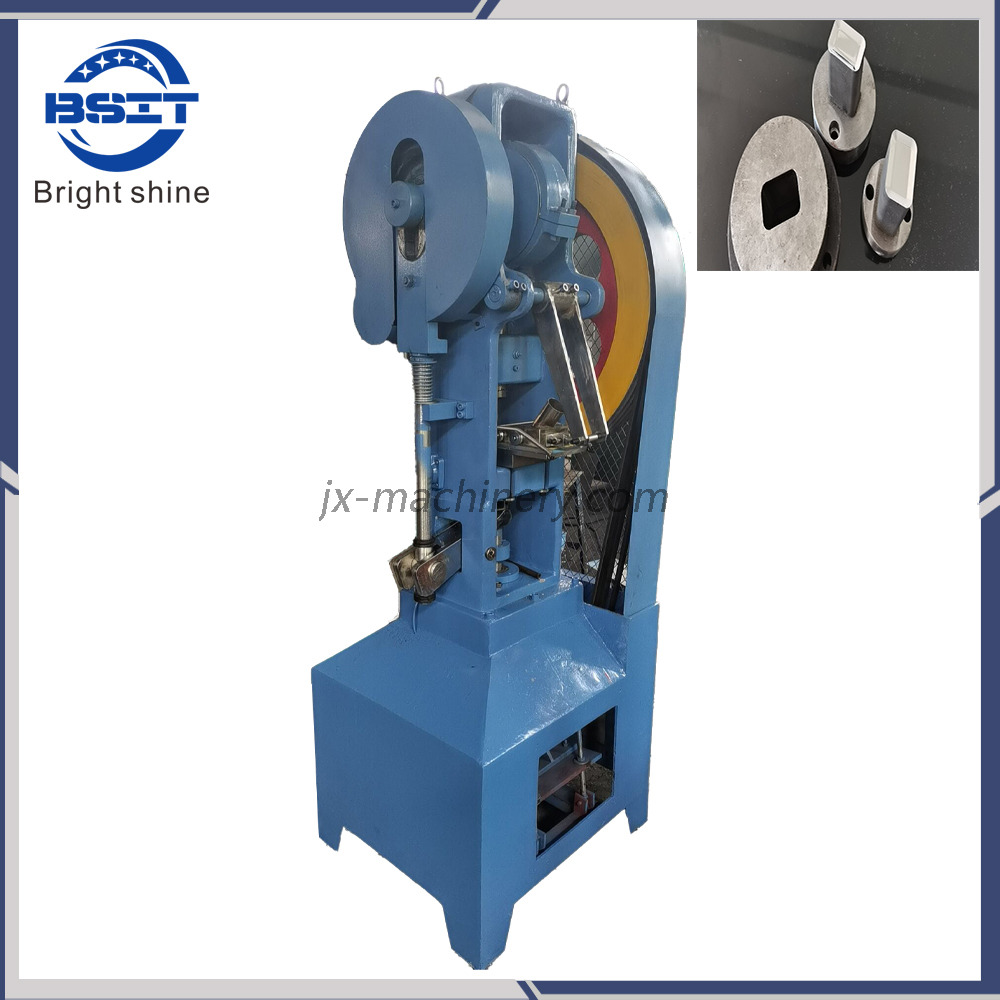

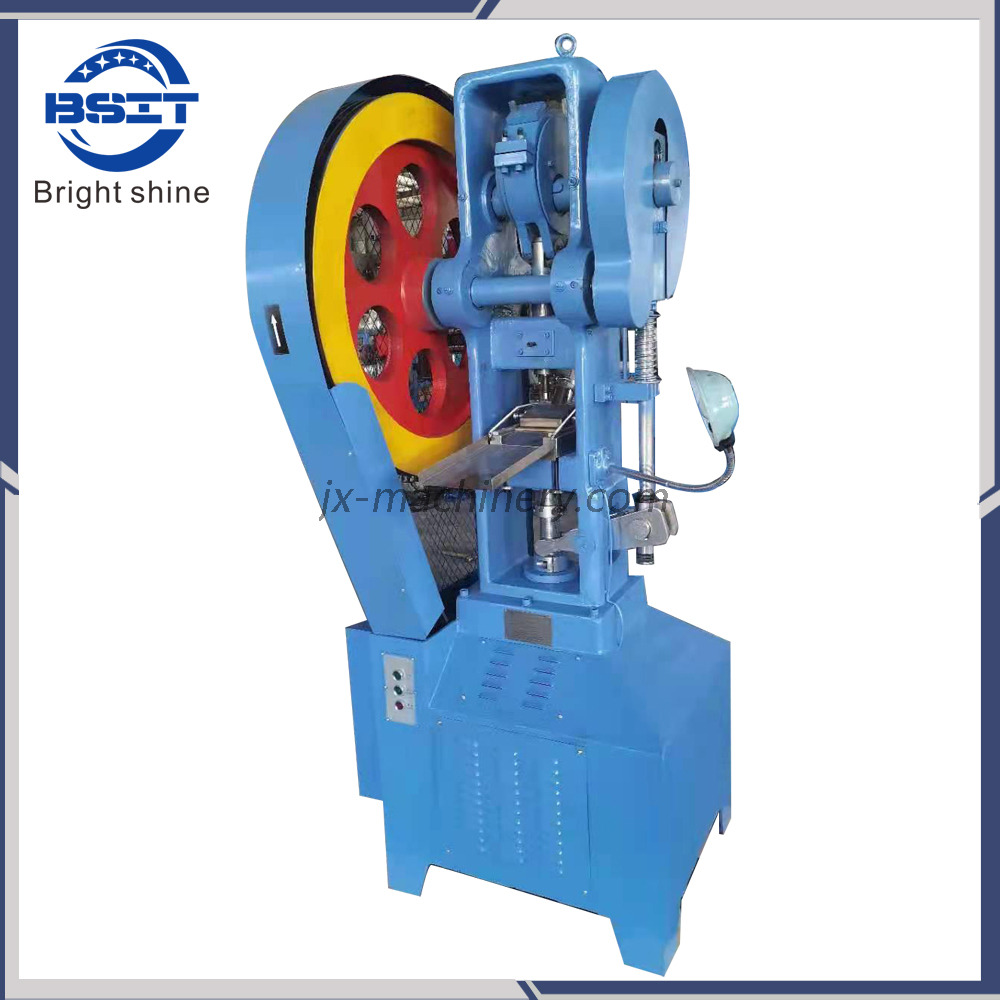

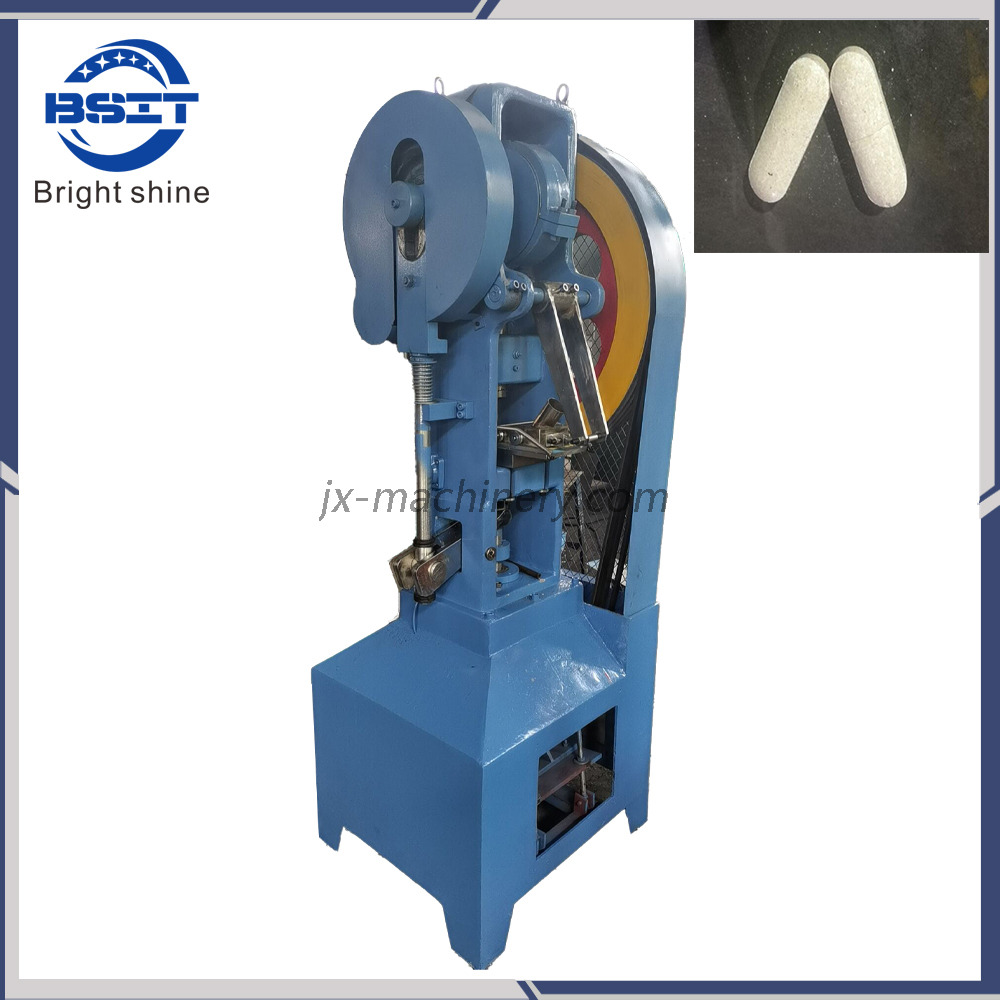

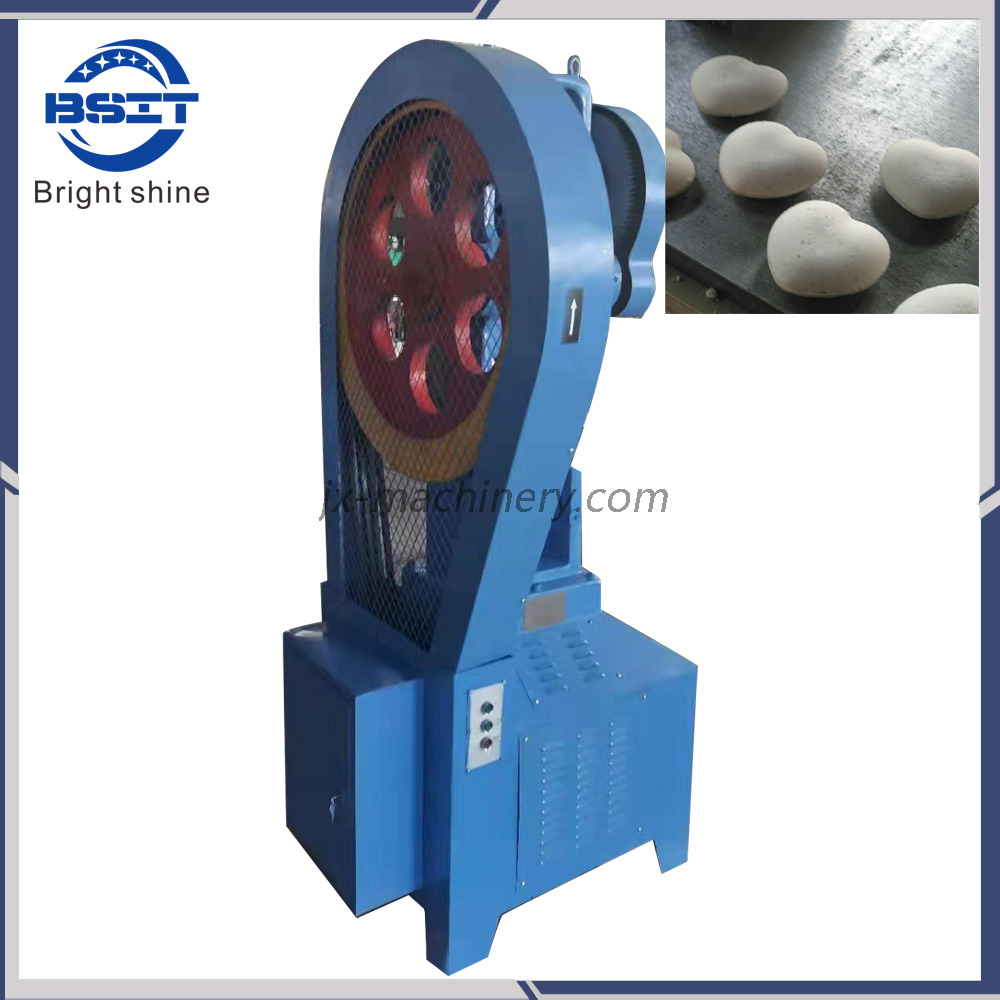

Big Pressure Pill Making Tablet Press Machine (THP -30)
Main application:
This machine is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
Suitable product:
Candy, coffee block, chocolate, seasoning block, chicken tablets, tea-leaves, preserved fruit, cheese and other material's molding . it can press any powder/granules into tablet or blocks.
All kinds of powder forming in Sanitizer, water purification salt block, bath salt tablet and other corrosive materials. toilet articles, industrial salt tablet, chemical powder, ceramic, chicken essence powder.
Related tablet press as following :
THP-30 flower basket big pressure tablet press
THP-6/10/15/20/30/45/60 type Tablet press applies for pressing variety of corrosively materials such as bath salt, chemical fertilizer, disinfectant etc. The machine surface all adopts stainless steel, which has high corrosion resistance. The machine improves the safety production capability also save time and labor. The machine has high accuracy, stable performance and wide usage, which is the best choice for customer.
Main Technical specification:
Model | THP-6 | THP-10 | THP-15 | THP-20 |
Working Pressure (kN) | 6T | 10T | 15T | 20T |
Max. dia. of tablet (mm) | 35mm | 50mm | 55mm | 65mm |
Upper punch max travel(mm) | 80mm | 100mm | 100mm | 100mm |
Loading height(mm) | 40mm | 50mm | 50mm | 50mm |
Lower mold diameter(mm) | 20mm | 60mm | 35mm | 50mm |
Production times(times/min) | 25 | 25 | 25 | 25 |
Product error | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
Motor power | 1.5 | 3KW | 3 | 3 |
Size | 700*800*1600 | 800*900*2100 | 800*900*2100 | 900*800*2300 |
Weight | 0.3T | 1.2T | 1.3T | 1.5T |
Model | THP-25 | THP-30 | THP-45 | THP-60 |
Working Pressure (kN) | 25T | 30T | 45T | 60T |
Max. dia. of tablet (mm) | 80 | 85mm | 90mm | 100 |
Upper punch max travel(mm) | 120 | 130 | 140 | 110mm |
Loading height(mm) | 90 | 100 | 120 | 60mm |
Lower mold diameter(mm) | 130 | 140 | 100 | 100mm |
Production times(times/min) | 25 | 25 | 25 | 20 |
Product error | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
Motor power | 4 | 4 | 5.5 | 5.5 |
Size | 2180*1020*1080 | 2240*1100*1040 | 2330*1165*1080 | 900*1000*2600 |
Weight | 1.6T | 1.7T | 2.1T | 2.4T |
