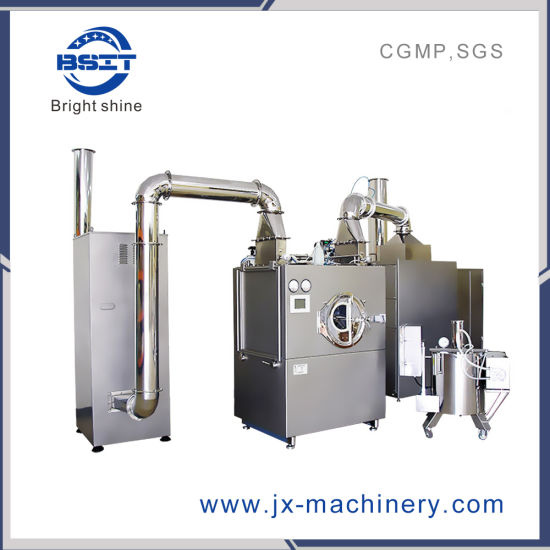

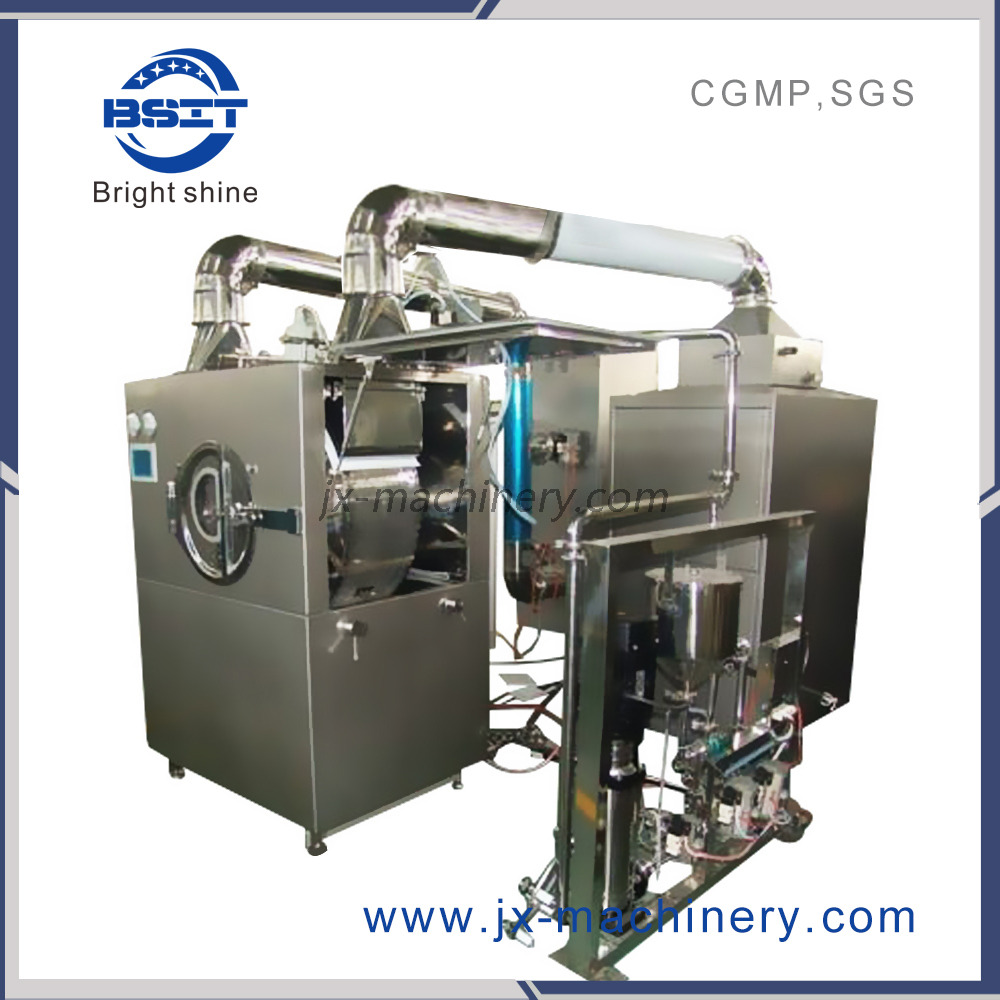

Automatic High -Efficiency Tablet Film-Coating Machine with CIP Washer Online for Bgb-D
Feature:
With CIP online cleaning system, the D- type coating machines in addition to possess all the functions and characteristics of the C-type machine, but also have the following characteristics:
1. Different parts of the main machine collocated with a number of nozzles for cleaning machine on-line.
2. Configured the independent cleaning liquid booster distribution station to make sure the pressure of cleaning liquid form every spray header get up to 0.6Mpa and wash the coating machine effectively.
3. Configured the cycle cleaning and drainage systems for the cleaning process to choose
4. Under the control of the PLC, can program a number of cleaning procedures
5. Under the control of the PLC, dry the remanent water of each nozzle by compressed air.
6. Under the control of the PLC, implement fully automatic washing and drying process.
Main technical parameters of BGB-D type coating machine (with CIP):
| model | BGB -350C | BGB -150C | BGB -75C | BGB -10C |
| Production capacity (kg/run) | 350 | 150 | 75 | 10 |
| Speed-adjusting range of filmcoating drum (rpm) | 2~11 | 3~15 | 4~19 | 6~30 |
| Motor power of main machine(KW) | 4.0 | 2.2 | 1.1 | 0.55 |
| Temperature-regulating range of hot air (degree) | normal temperature~80 degree | |||
| Filtration accuracy of hot air ( mm) | 0.5μm(100000 grade) | |||
| Motor power of hot air machine(KW) | 2.2 | 1.1 | 1.1 | 0.75 |
| Motor power of exhaust machine(KW) | 7.5 | 5.5 | 3 | 2.2 |
| Motor power of vibration dust- cleaning device(KW) | 0.37 | 0.37 | 0.37 | 0.37 |
| Motor power of peristaltic pump(KW) | 0.18 | 0.18 | 0.18 | 0.18 |
| Overall dimension of main machine (L×W×H)(mm) | 2000x1560 x2300 | 1570x1260 x2000 | 1350x1010 x1630 | 1100x750 x1540 |
| Weight of main machine(kg) | 1650 | 900 | 550 | 380 |
All kinds of tablet sample :
