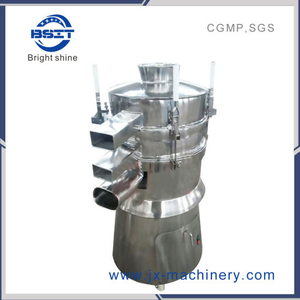

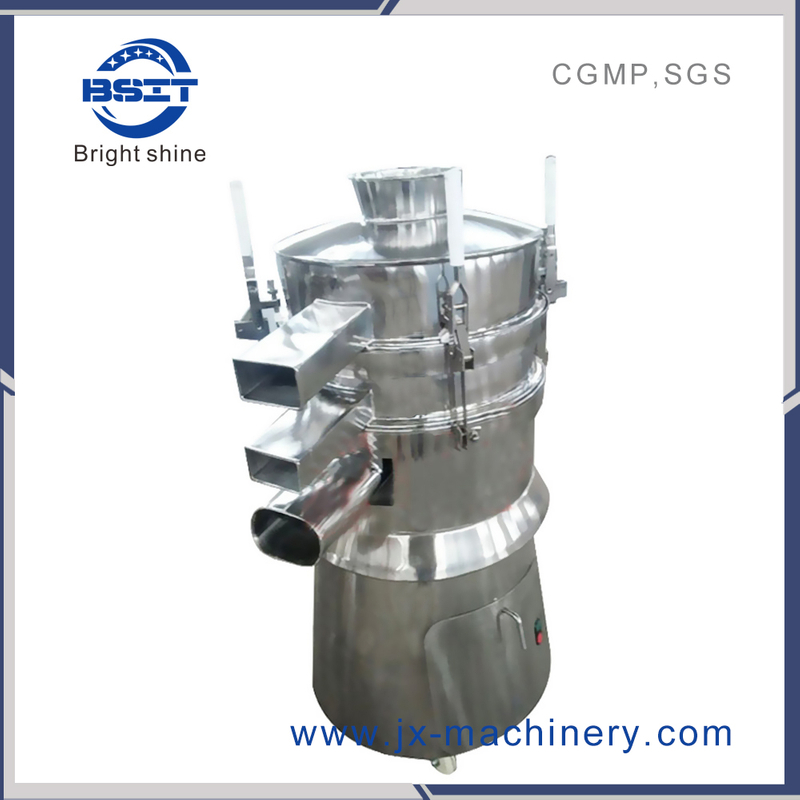

ZS-350/ZS-515/ZS-650 Vibrating Sieve
why choose our machine?
The machine is suitable for flow operation, and is the ideal equipment for sifting out the granules in different size and proportion and for continuous material delivering.
Main advantage:
Suitable for pharmaceutical, food, chemical,
meet with GMP standards
all machine guarantee for 1 year
it is SUS304 contact with product
Structure& Performance :
This machine is consisted of the hopper, vibration chamber, cluth, motor ect. The vibrating chamber is equipped by eccentric wheel, rubber soft pieces, Man shift, bearing etc. When the adjustable eccentric weight passed its gravity to the central line of main shift by the driving of motor to break the balance, then under the centrifugal force, the orbit spire of target materials is forced to change its way in the chamber, the size of swing of the weight regulator can be adjusted according to different kinds of target material or the number of mesh. The whole machine has the specialties of compact structure, small volume, non-dust flying, low noise, and high output, low energy consumption, easy to be moved and maintained.
Technical parameter:
Model | ZS-350 | ZS-515 | ZS-650 | ZS-800 | ZS-1000 |
Capacity(kg/h) | 60-500 | 60-1300 | 180-2000 | 300-2500 | 500-3500 |
Number of mesh(mesh) | 12-200 | 12-200 | 12-200 | 12-200 | 12-200 |
Power (kw) | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 |
Speed of principal axis(rpm) | 1380 | 1370 | 1370 | 1500 | 1500 |
Overall dimension(LxWxH)(mm) | 540X540X1060 | 710X710X129 | 880x880x1350 | 1100x850x950 | 1350x1100x1100 |
Weight (Kg) | 100kg | 180kg | 250kg | 260kg | 380kg |
