High Quality Pharmaceutical Vibrating Screener Machine (ZS-650)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
ZS-650
Running Track:
Circular Vibrating Screen
Supporting Device:
Rubber Spring
Warranty:
1 Year
Customized:
Customized
Condition:
New
Zs350 Capacity:
60-500kg
Number of Mesh:
12-200 Mesh
Power (Kw):
0.5kw
Voltage:
380,220V
Speed of Principal Axis(Rpm):
1380
Overall Dimension:
540X540X1060mm
Weight (Kg):
100kg
Name:
Vibrating Screener
Keywords:
Screener
Materical:
SUS304
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP standard
Origin:
Made in China
HS Code:
8438800000
Type:
Circular
Function:
High Frequency Vibrating Screen
Transmission Structure:
Vibrating Screen
Works:
Rotary Vane Shaker
Object:
Food Processing
Shaft Number:
Single

Product Description

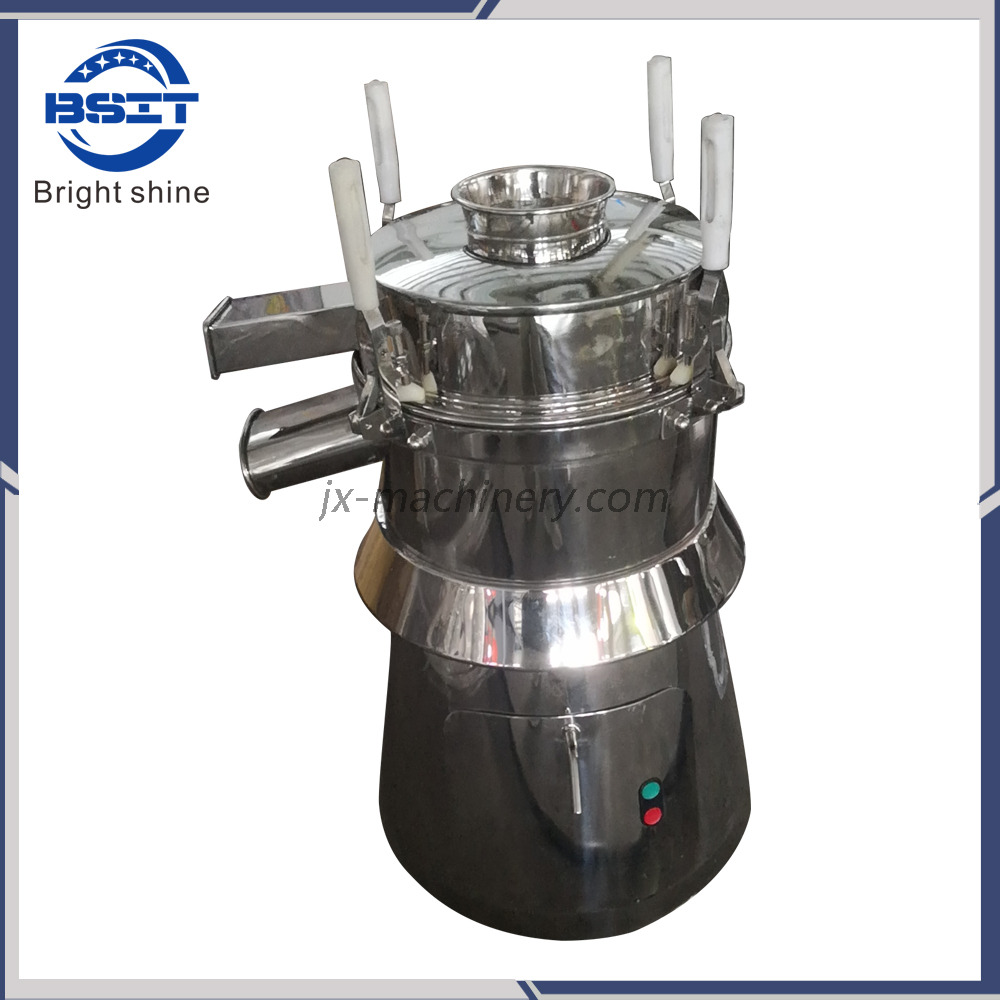

High Quality Pharmaceutical Vibrating Screener Machine (ZS-650)

Main advantage:

Model ZS series delaminate sieve is suitable for flow operation, that is the ideal equipment for sifting out the granules in different size and proportion and for continuous materials-delivering.

Structure& Performance:

This machine is consisted of the hopper, vibration chamber, cluth, motor ect. The vibrating chamber is equipped by eccentric wheel, rubber soft pieces, Man shift, bearing etc. When the adjustable eccentric weight passed its gravity to the central line of main shift by the driving of motor to break the balance, then under the centrifugal force, the orbit spire of target materials is forced to change its way in the chamber, the size of swing of the weight regulator can be adjusted according to different kinds of target material or the number of mesh. The whole machine has the specialties of compact structure, small volume, non-dust flying, low noise, and high output, low energy consumption, easy to be moved and maintained.

Technical parameter:

Model	ZS-350	ZS-515	ZS-650
Capacity(kg/h)	60-500	100-1300	180-2000
Number of mesh(mesh)	12-200	12-200	12-200
Power (kW)	0.55	0.75	1.5
Speed of principal axis(rpm)	1380	1370	1370
Overall dimension (L x W x H)(mm)	540x540x1060	710x710x1290	880x880x1350
Weight (Kg)	100	180	250
