Syrup Oral Pharmaceutical Liquid Filling and Capping Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
BYG
Filling Principle:
Atmospheric Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Oral Syrup/Liquid /Spray Bottle
Capacity:
30-50 PCS/Min
Name:
Syrup Oral Liquid Filling Machine
Material:
SS316 Stainless Steel
Various Kinds Bottle:
Plastic/Glass Bottle
Bottle Size:
Min. 20mm , Max:80mm
Filling Volume:
15~60ml, 30~125ml, 50~250ml
Filling Accuracy:
+-1%
Compress Air Require:
30L/Min, 4~6bar
Size:
2500X1000X1800mm
Weight:
800kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP standard
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

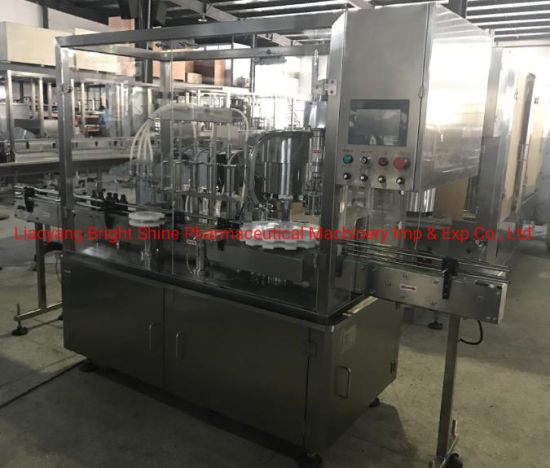

Syrup Oral Pharmaceutical Liquid Filling and Capping Machine

YG4/1 Automatic Filling and Capping Machine:

G4/1 Automatic Filling and Capping machine for the application of light liquid filling and capping for plastic or glass bottles. The machine is composed by a conveyor, SS316L volumetric piston pump, top-bottom filling nozzles, liquid buffer tank, bottle index wheel, capping system. The bottle loading/unloading through loading/unloading turntable (alternative Ø620mm or Ø900mm), or directly from an production line.

Syrup Oral Pharmaceutical Liquid Filling and Capping Machine

make this wooden case ready for export
Syrup Oral Pharmaceutical Liquid Filling and Capping Machine

Technical Features:

Kind of bottle	Various kinds of plastic/glass bottle
Bottle size*	Min. Ø 20mm Max. Ø80mm
Kind of cap	Alternative Screw on cap, alum. ROPP cap
Cap size*	Ø 20~ Ø45mm
Filing nozzles	4 heads
Speed	30~50bpm (e.g 40bpm@100ml)
Alternative Filling volume*	15~60ml, 30~150ml, 50~250ml, 150~500ml
Filling accuracy	±1~2%
Power*	220V 50/60Hz 1.5kw
Compress air require	10L/min, 4~6bar
Machine size mm	Length 2500, width 1000, height 1600
Machine weight:	800kgs
