Piston Pump Control 10ml Injection Vial Filling Capping Machine for SUS304



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
60-120/Min
Payment Terms:
L/C, T/T, Western Union, Paypal
Model NO.:
KGL
Customized:
Customized
Condition:
New
Warranty:
1 Year
Capacity:
60-120PCS/Min
Suitable:
1ml,2ml,5ml,10ml
Material:
SS316 Stainless Steel
Name:
Vial Capping Machine
Kind of Cap Alternative:
Alum. Cap, Plastic-Alum. Cap
Bottle Size:
Min. 20mm Max.80mm
Cap Size:
Diameter: 20~50mm
Capping Head:
1 Head,2 Heads
Power:
1.5kw
Weight:
650kg
Trademark:
BSIT
Transport Package:
Export Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422303090
Type:
Pharmaceutical Packaging Machinery
Finished Dosage Form:
Liquid
Precision:
High Precision
Certification:
CE, GMP
Voltage:
220V
Computerized:
Computerized

Product Description

General Features:

BKGL Automatic chuck capping machine for the application of plastic/glass bottles capping. The machine is composed by a load turntable, conveyor, bottle index wheel, cap unscrambler, cap chute &placer, cap crimpling system. The bottle loading/unloading through conveyor manually, or automaticdirectly from a production line. It is designed and made accordance to GMP regulation.

Piston Pump Control 10ml Injection Vial Filling Capping Machine for SUS304

Technical Features:

Kind of bottle	Various kinds of plastic/glass bottle
Kind of cap alternative	Alum. cap, plastic-alum. cap
Bottle size*	Min. Ø20mm Max. Ø80mm
Cap size*	Ø20~50mm
Capping head	Model 120: 2 heads Model 60: 1head
Speed	Model 120: 60~80bpm Model 60: 40~50bpm
Power*	220V 50/60Hz 1.5kw
Compress air require	5L/min, 4~6bar
Machine size mm	Length 1500, width 1000, height 1600
Machine weight:	650kgs

* Other sizes on request

Function and Technical Standard:

S/N	ITEM	DESCRIPTION
	Index wheel	Material: Nylon Index wheel changeable to fit to different bottle diameter Changeable without tool Index wheel is driven by high precision indexing cam box, ensure indexing bottle under right position of working station Index wheel overload protection installed
	Cap unscrambler	Type: vibrator Cap size on request Adjustable height to suit to different bottle height
	Alum. Cap Crimpling	3- crimpling knives capping head Adjustable knives to fit to different kinds of cap size Crimpling edge is smooth and good seal

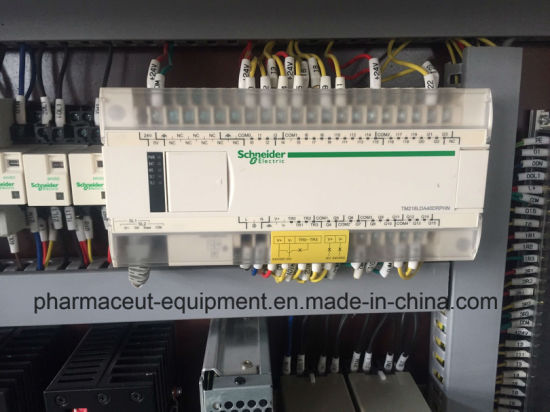

	PLC controller	PLC control + Schneider button panel No bottle no cap Machine stop-await when cap empty load Auto stop machine when index wheel overload/block Machine speed adjustable controlled by frequency inverter
	Machine frame	Frame in carbon steel with antirust coat profile SS304 sheet covering
	Optional parts:	Acrylic Safeguard hood(option) Interlock door open auto stop machine(option) Cap elevator(option)
	Accessories	Manual book: 1copy Qualification certificate: 1original Tool kit: 1unit Spare and wearing parts: + knives of capper: 1set
