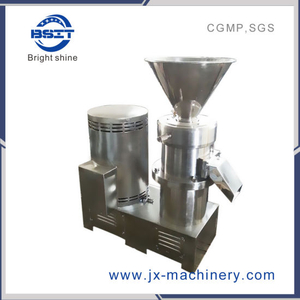

Stainless Steel Good Quality Peanuts Colloid Mill (JMS130)

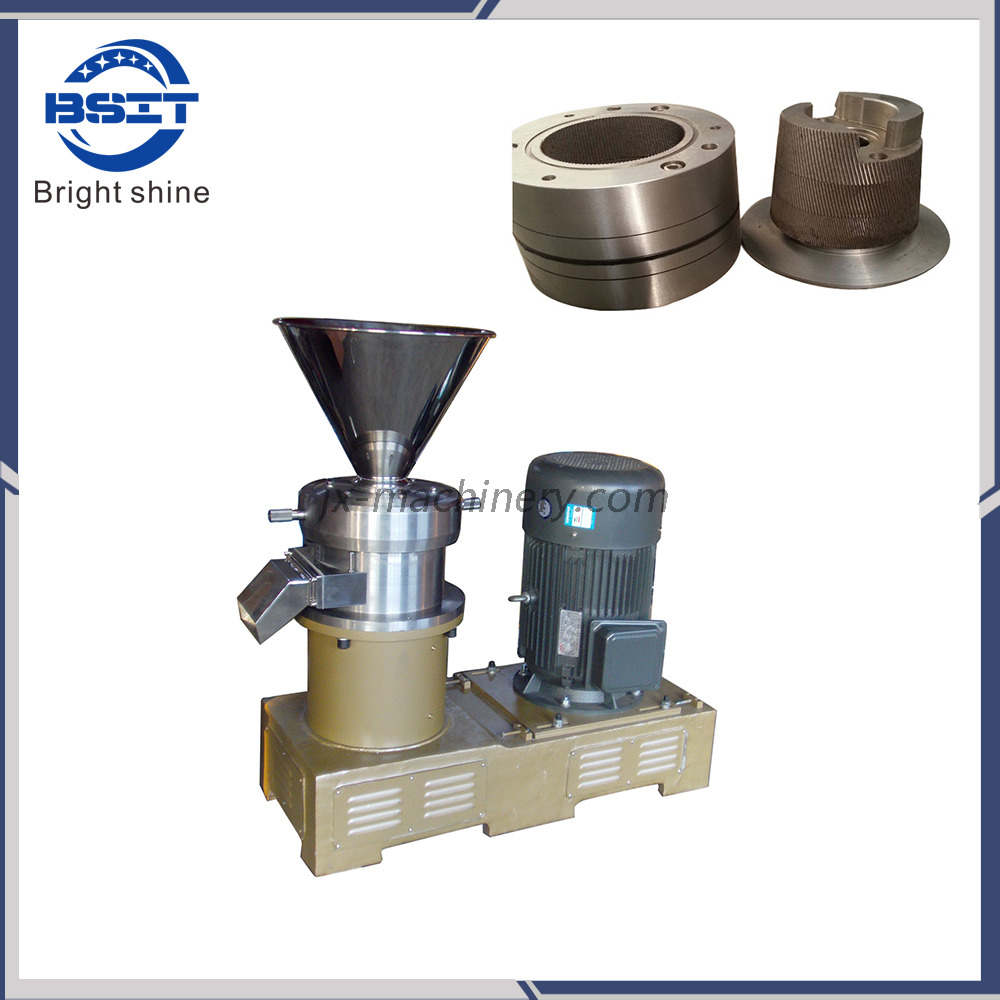

The JM series colloid mill is the micro-fabrication plant of wet materials. The structural type of the machine is the pioneer in domestic, which possesses the characteristics of advanced equipment, reliable performance, easy operation, balanced operation, small noise, easy maintenance, corrosion prevention, wide application, and complete varieties. Main technical specifications have reached the advanced level of the similar products both at home and abroad. Scope of Application:
1.Food-processing industry: Juice, jam, beans, peanuts, cream, beverage, malted milk, egg yolk, ice-cream, etc.
2.Chemical industry concerned with products for daily use: Grease, water quality, powder cream high-level cosmetics; Shoe Polish, tooth paste, soap, cleaning detergent, bath extract. Chemical industry: Lubricating grease, paints, coloring agents, emulsified asphalt, cementing compound, etc.
3.Other industries: Plastic industry, pharmaceutical industry, textile industry, construction industry and coinage industry.
4. Guarantee for 1 year Main Feature:
3.It applies to ultra-fine grinding wet materials in the pharmaceutical, food, chemical and other industries field. It crushing, emulsifying, homogenizing and mixing for a variety of semi-wet body and emulsion materials. The main technical indicators have reached the advanced level of similar foreign products. Sample: Main technical parameters:
- Colloid mill product is a machine for fine processing the fluid materials. It combines a variety of performance such as homogenizer, ball grinder, and three roller machine, shearing machine, stirrer etc. It also has superior ultra-fine grinding, dispersing and emulsifying, homogenizing, mixing and other effects.
- The material through processing, grain size will reach 2~50 micrometer, homogeneity more than 90%, and it's the ideal equipment for ultra- fine processing.
|Name ||Standing colloid mill ||Variable colloid mill ||Lateral colloid mill |
|Type ||JM-80 |
|JMS-50 ||JMS-80 ||JMS-130 ||JMS-180 ||JMS-240 ||JMS-300 ||JMS-450 ||JMW-120 |
|Material processing size(µ m)(single cycle or multi-cycle) ||2-50 ||2-50 ||2-50 ||2-50 ||2-50 ||2-50 ||2-50 ||2-50 ||2-50 ||2-80 |
|Capacity (t/h)(change with the nature of material ||0.07-0.5 ||0.5-2 ||0.005-0.03 ||0.007-0.5 ||0.5-2 ||0.8-6 ||4-15 ||6-20 ||10-40 ||1-4 |
|Power of main electrical motor(kw) ||4 ||11 ||1.1 ||4 ||11 ||15 ||37 ||55-75 ||160/200 ||11 |
|rpm of electrical motor (r/min. ) ||2890 ||2930 ||1750-5000 ||1600-5000 ||1750-5000 ||1600-5000 ||1600-2950 ||1750-2970 ||1750-2970 ||2930 |
|Overall size (L x W x H) mm ||45 |
|Gross weight (kg) ||190 ||320 ||70 ||210 ||420 ||550 ||1300 ||1600 ||3000 ||150 |
