Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)

  • Dalian, China

  • 20 Sets/Year

  • L/C, T/T, Western Union, Paypal, Money Gram

  • ZSA

  • Pressure

  • Pneumatic Lifting

  • Linear

  • Empty Suppository Belt

  • Plastic

  • 1000-2000 PCS/H

  • PLC

  • Suppository Filling Sealing Machine

  • Suppository

  • PVC,PVC/PE

  • 380V,50Hz,3p

  • Bullet Form, Torpedo

  • 17.5mm

  • 1 Granulation

  • 7kw

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP Standard

  • Made in China

  • 8422303090

  • Volumetric Filling Machine

  • Fully Automatic

  • Suppository Material

  • Single-Head

  • Single-Room Feeding

  • Plunger

Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)
Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)

Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)
Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)

Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)

Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)

Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)

all related suppositry filing sealing machine list :



Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)

Sample:

Small Batch Lab Suppository Forming Filling Sealing Machine (1 filling head)

ZSA laboratory suppository filling and sealing is our company digested and absorbed abroad advanced technology and bond internal suppository producing practice to manufacture and develop.
The equipment is made of four parts:
1. Suppository belt machine
2. Suppository filling machine
3. Suppository condensation tunnel
4. Suppository sealing machine.


It can complete making shell, filling, cryo-stereotypia and sealing. The machine is made of plc, hmi, because of its full-featured, small volume, low production, so it is used for research institutes and hospital preparations
Working routing and principle:

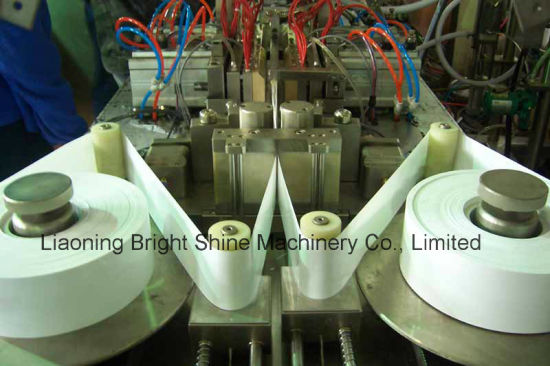

The rolled plastic sheet material (pvc or pvc/pe) preheatedsolder blow and make a statue to take shape shearing the lower side filling cryo-stereotypia preheatedsealing beating batch number shearing the upper side counting and shearing
Working principle:
The rolled plastic sheet material (pvc or pvc/pe) is pressed positively to blow and make a statue to take shape, and enter into filling procedure automatically, stirred equally drug fluid is filled to nul nutshell automatically through high precise dosing pump, and is sheared into multi-strip iso-segment. Then it will become solid cork granulation through much time cryo-stereotypia which will realize conversion from fluid to solid. At last, it will be produced to end product suppository by mending form, sealing, beating batch number and shearing working procedure.

Technical characteristic:


1. Using plc and hmi, easy to operate, high degree of automatization.
2. Using inset filling, accurate in position, non-dribbling drug, non-hanging wall.
3. Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional chinese medicine ware.
4. Barrel has a heated reservoir and blender.
production 1000-2000 granulatiron/h
Dosage per granulation 0.5-4ml
filling error +-5%
suppository form bullet form, torpedo form
center distance 17.5mm
number of mould 1 granulation
packing materical height 58mm , thickness 0.14mm+-0.01mm
volume of barrel 10L
height of hopper 1500mm
voltage 380V,50HZ,3P
Power 7kw
Air pressure 0.55-0.65mpa
Air consumption 1.0m3/min
size 2700x1000x1800mm
