Semi-Automatic High Quality Lower Price Suppository Filling and Sealing Machine (BZS)



Inquire Add to Basket

Port:
Dalian, China
Production Capacity:
20 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
BZS
Customized:
Customized
Condition:
New
Warranty:
1 Year
Product:
Suppository Liquid
Control System:
PLC
Output:
3000- 6000 Suppositories/H
Material:
SS316/SUS304
Dosage Per Suppository Cell :
0.5-5g/Cell
Shape of Suppository:
Bullet Form, Torpedo Form, Duck-Mouth Form and Oth
Shearing Granulation Number of One Plate:
1-10 Granules
Power Voltage :
380V,50Hz,3p
Total Power :
7.8kw
Weight:
700kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Type:
Pharmaceutical Packaging Machinery
Finished Dosage Form:
Suppository
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

Semi-Automatic High Quality Lower Price Suppository Filling and Sealing Machine (BZS)

This machine which is manufactured by our company in the latest is mechatronics new equipment for producing suppository. It can finish filling automatically, take a shape hypothermia, repair form, seal and shear mono plate. ( this is machine no forming PVC/PE packing materical). by finished PVC/PE by this machine filling sealing cooling machine

Semi-Automatic High Quality Lower Price Suppository Filling and Sealing Machine (BZS)

Work principle:

Drug fluid dispensed is filled to storing fluid vessel which lay stirring assembly and homeothemia system and observing fluid surface assembly, and drug fluid is beaten to dosing pump through stirring pump, then, they will pass six filling-mouths. As well as filling, they will enter into hypothermia stereotypia part, and they will finish converse from fluid to solid, in the end they will be sealed, repaired form and sheared to become shape.

advantage item:

1. Using special counting structure, high precise filling, accurate counting, non-dribbling drug, wear-resisting, it can be used to fill bigger gluing degree traditional Chinese medicine and gelatin group.
2. Using PLC written program control. High automatization degree, it can be used to produce various volumes and various forms suppository.
3. Matching stirring pump that is circulatory system continuously, this ensure that drug fluid don't coagulate when machine stop.
4. Using technique of heating to seal and repair form, suppository surface is smooth and glossy and equality in good order.
5. Possessing function of beating batch number.

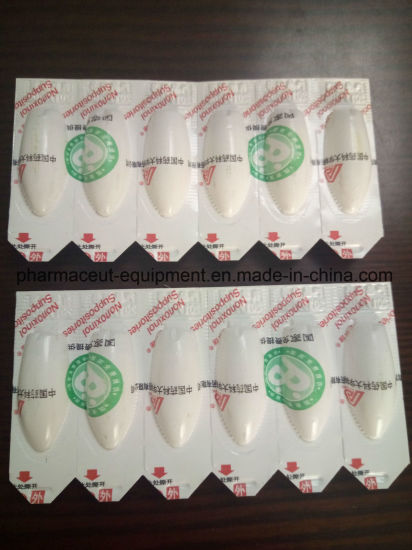

Sample:

Semi-Automatic High Quality Lower Price Suppository Filling and Sealing Machine (BZS)

Technical parameter:

Output	3000_ 6000 suppositories/h
Allowable Error of granular weight	± 2%
Dosage per suppository cell	0.5-5g per suppository cell
Shape of suppository	Bullet form, torpedo form, duck-mouth form and other special form.
Shearing granulation number of one plate	1-10 granulations
Power voltage	Three-phases AC 380V
Total power	7.8KW
Air pressure	5kg/cm3
Air consumption	0.5m3/min
Overall dimensions	4100× 1600× 2000mm(length× Width× Height)
Total weight	700kg
