ZL-300
BSIT
Shanghai, China
30 Sets/Year
T/T
1 set
wooden case packing
ZL-300 Rotary Granulator Dry Powder Granulator Pharmaceutical Fertilizer Granulator Machine with SUS304
Application:
This machine is widely used in the pharmaceutical, food industry, chemical industry, light industry and so on,
Feature：
1. The material contacted parts are made of 304/316 stainless steel
2. The transmission system adopts belt, worm and gear and three sets of spur gear.
3.it is used in granulating the wet powder into granules, it is also used in granulating the agglomerate dry powder into granule.
4.It is simple to operate, convenient to maintain, easy to clean, and discharges automatically.
5.It is able to select cylindrical screen of different bore
Working Principle:
The motor can change speed and direction by the gear case, which make the Grinding Blade and materials pusher do opposite rotation., the materials pusher pin the materials by the inclined plane, and the Grinding Blade push the material to the screen barrel, then the materials formed into granules.
Main technical data:
Model | ZL250 | ZL300 |
Cutting knife capacity | 250(L) | 300(L) |
Max size for pellet | 2-2.2（mm）be custom make | 1.8-2.5(mm)be custom make |
Overall size(mm) | 700*540*1300 | 880*640*1300 |
Motor power(kw) | 3 | 3 |
Weight (kg) | 350 | 400 |
Capacity (kg/h) | 100-200 | 140-400 |

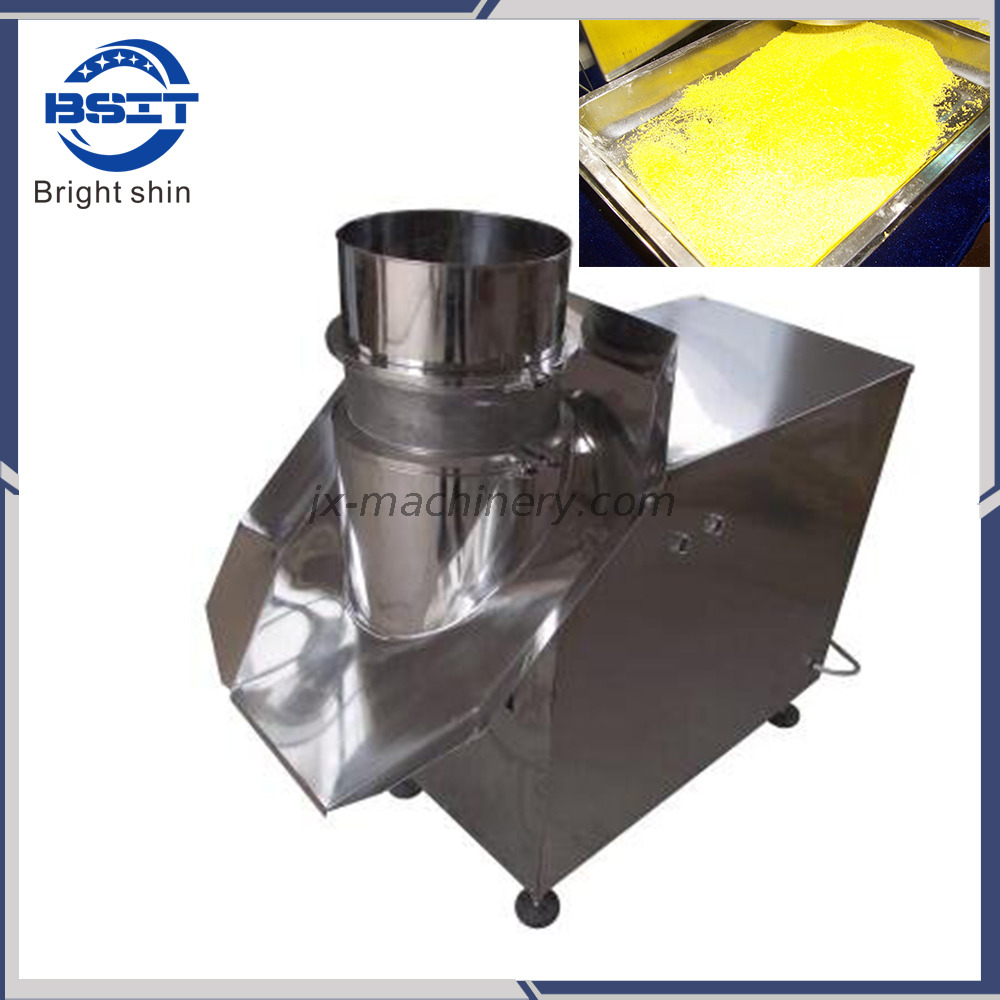

Machine photo :
