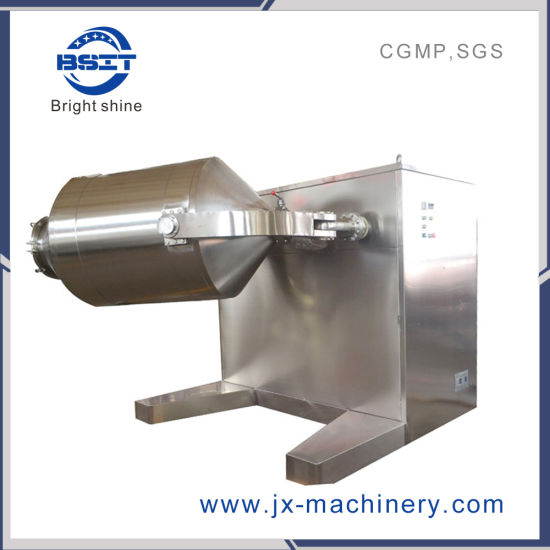

Pharmaceutical Multi-Function Powder Mixing Machine HD-100 Working principle:
The mixing machine is suitable for dry-powder material mixing in pharmacy, chemical and food industries. It is used in mixing evenly and quickly between different proportion and fineness of materials. SBH 3D mixing machine utilizes unique strong alternative pulse, promoting and mixing the supplies successively, its vortex has variational energy gradient, thus it mixes excellently. The SBH 3D mixing machine has the advantages of steady operation, low noise, high loading coefficient and short mixing time.
Powder mixer and granulation machine can be called as power press machine or medical press machine, they are used for mixing powder, making preparation for forming tablets or pills. Features:
1. It has a unique driven shaft servo mechanism, so that the whole machine makes smooth and reliable operation with less vibration and low noise.
2. The equipment does not need a foundation and features convenient erection and maintenance as well as long service life.
3. T can ensure a good mixing effect and the mixing time is short. The evenness of mixing reaches above 99.5%;
4. Its charge coefficient reaches 85%, more than double that of an ordinary rotary mixer.
5. Thanks to its low height and small rotating space, it usually does not need skip floor.
6. The eccentrica cone design of the discharge end of the mixing barrel ensures discharge free of dead corner and residue, so it is easy to clean and conforms to the requirement of GMP.
7. 3D multi-directional motions mixer can smooth run, timing, deceleration down under low-speed start-up, rated speed. Automatic shutdown location of the machine is out of the best locations for out or in of materials. Main technical parameter:
|Model ||10 ||50 ||100 ||200 ||300 ||400 |
|Barrel capacity(L) ||10 ||50 ||100 ||200 ||300 ||400 |
|Feed volume (L) ||8 ||40 ||80 ||160 ||240 ||320 |
|Feed weight (kg) ||5 ||25 ||50 ||100 ||150 ||200 |
|Agitation speed (r/min) ||0-15 ||0-15 ||0-15 ||0-15 ||0-15 ||0-15 |
|Motor power (KW) ||0.55 ||1.1 ||1.5 ||2.2 ||4 ||4 |
|Overall size(mm) ||800*1200 |
|Weight (KG) ||200 ||300 ||500 ||800 ||1000 ||1200 |
