VH
BSIT
Shanghai, China
10 Sets/Month
T/T, Western Union, Paypal, Money Gram
1 set
wooden case packing

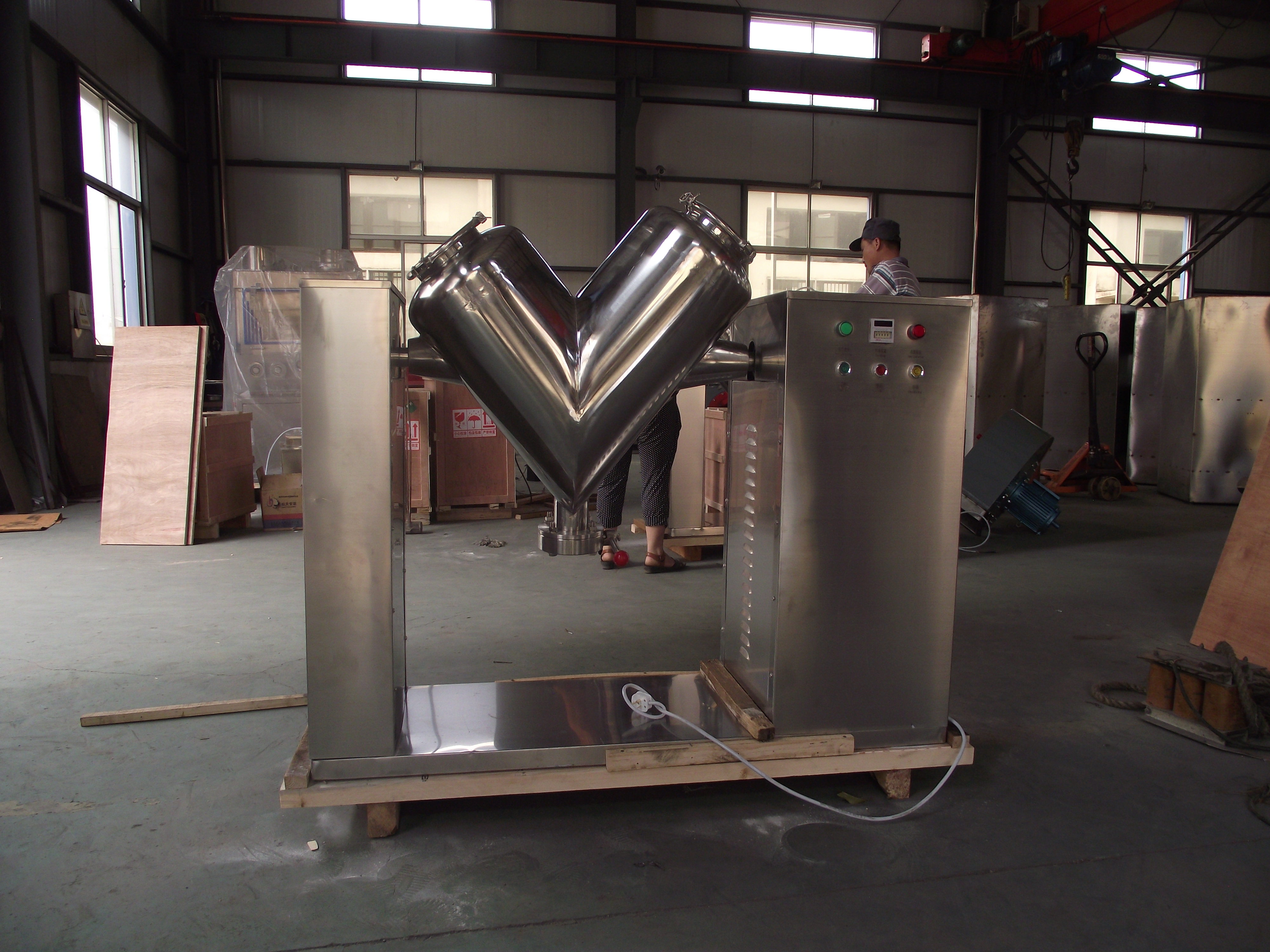

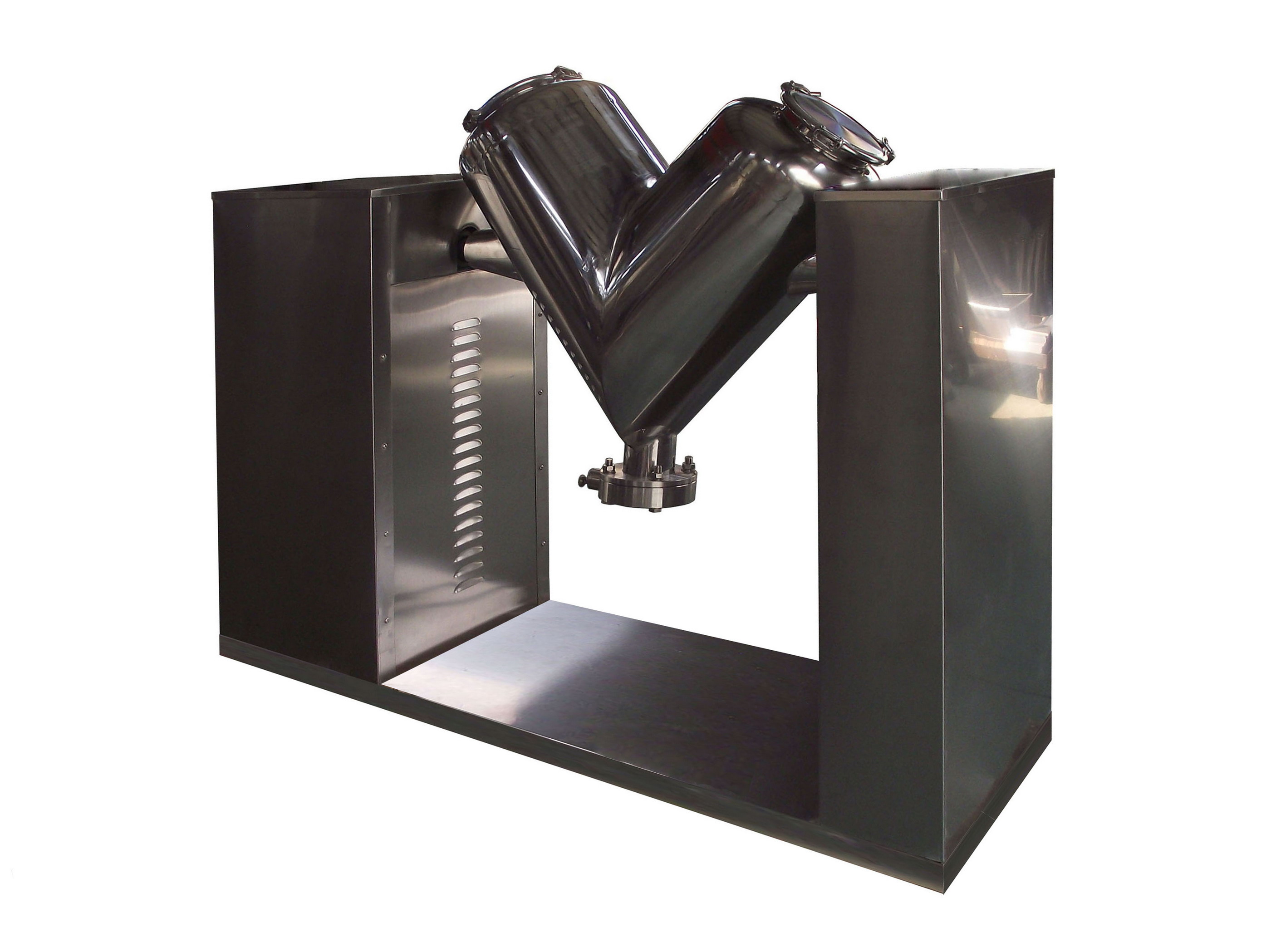

VH Model SUS304 Stainless Steel Mixing Machine for Food/Granule/Dry Powder/Flour Product
General of applications:
This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry foodstuff industry and so on.
The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty. Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.
Technical Parameter:
Item Specification | 0.05 | 0.15 | 0.3 | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 |
Working volume(L) | 20 | 65 | 145 | 210 | 425 | 700 | 800 | 1250 | 1850 | 2300 |
Load(kg/batch) | 12 | 40 | 90 | 130 | 250 | 420 | 480 | 750 | 1100 | 1400 |
Speed main shaft(rpm) | 25 | 22 | 20 | 18 | 15 | 15 | 14 | 13 | 11 | 8 |
Power(kw) | 0.4 | 0.55 | 0.75 | 1.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
Height of rotating | 900 | 1300 | 1700 | 1840 | 2030 | 2300 | 2490 | 2850 | 3200 | 4600 |
VH Model SUS304 Stainless Steel Mixing Machine for Food/Granule/Dry Powder/Flour Product
General of applications:
This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry foodstuff industry and so on.
The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty. Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.
Technical Parameter:
Item Specification | 0.05 | 0.15 | 0.3 | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 |
Working volume(L) | 20 | 65 | 145 | 210 | 425 | 700 | 800 | 1250 | 1850 | 2300 |
Load(kg/batch) | 12 | 40 | 90 | 130 | 250 | 420 | 480 | 750 | 1100 | 1400 |
Speed main shaft(rpm) | 25 | 22 | 20 | 18 | 15 | 15 | 14 | 13 | 11 | 8 |
Power(kw) | 0.4 | 0.55 | 0.75 | 1.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
Height of rotating | 900 | 1300 | 1700 | 1840 | 2030 | 2300 | 2490 | 2850 | 3200 | 4600 |
