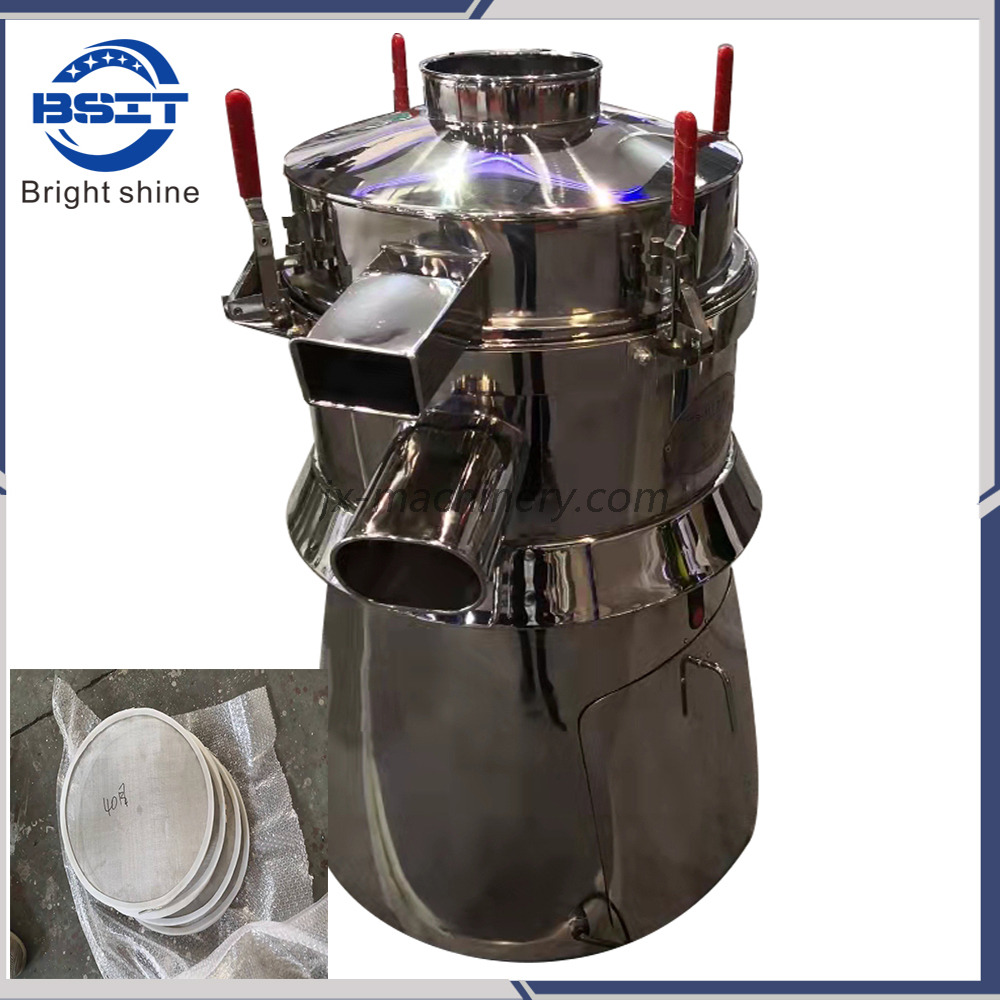

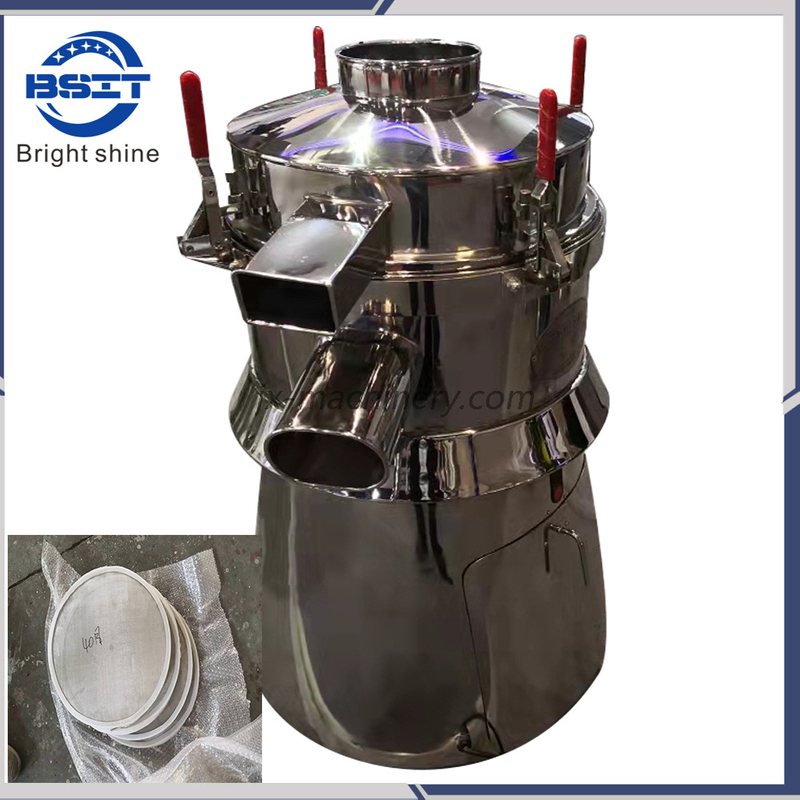

Pharmaceutical Machinery Vibrating Screen Machine Zs-350

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • ZS
  • Single
  • Circular Vibrating Screen
  • Rubber Spring
  • 1 Year
  • Customized
  • New
  • 60-500kg
  • 12-200 Mesh
  • 0.5kw
  • 380,220V
  • 1380
  • 540X540X1060mm
  • 100kg
  • Vibrating Screener
  • Screener
  • SUS304
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP standard
  • Made in China
  • 8438800000
  • Circular
  • High Frequency Vibrating Screen
  • Vibrating Screen
  • Experiments Shaker
  • Rotary Vane Shaker
  • Food Processing

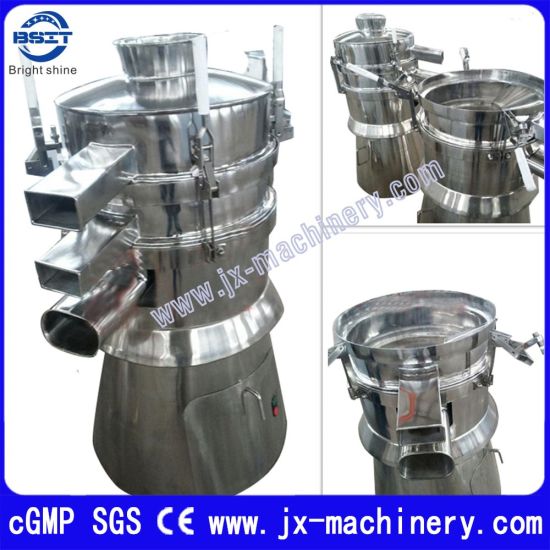

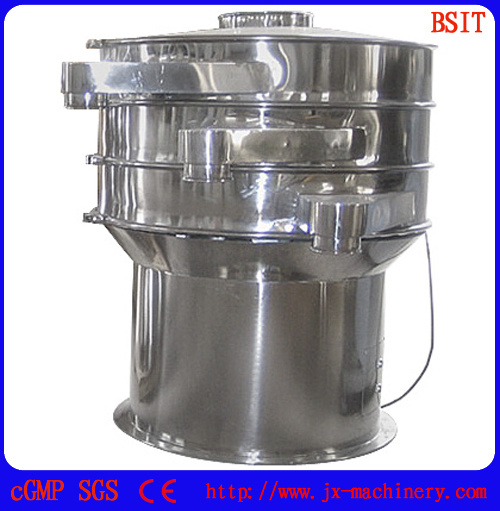

Pharmaceutical Machinery Vibrating Screen Machine Zs-350

Main application:

The machine is suitable for flow operation, and is the ideal equipment for sifting out the granules in different size and proportion and for continuous material delivering.

Structure& Performance:

This machine is consisted of the hopper, vibration chamber, cluth, motor ect. The vibrating chamber is equipped by eccentric wheel, rubber soft pieces, Man shift, bearing etc. When the adjustable eccentric weight passed its gravity to the central line of main shift by the driving of motor to break the balance, then under the centrifugal force, the orbit spire of target materials is forced to change its way in the chamber, the size of swing of the weight regulator can be adjusted according to different kinds of target material or the number of mesh. The whole machine has the specialties of compact structure, small volume, non-dust flying, low noise, and high output, low energy consumption, easy to be moved and maintained.

Pharmaceutical Machinery Vibrating Screen Machine Zs-350

Pharmaceutical Machinery Vibrating Screen Machine Zs-350
Pharmaceutical Machinery Vibrating Screen Machine Zs-350
Pharmaceutical Machinery Vibrating Screen Machine Zs-350
Pharmaceutical Machinery Vibrating Screen Machine Zs-350

Technical parameter:

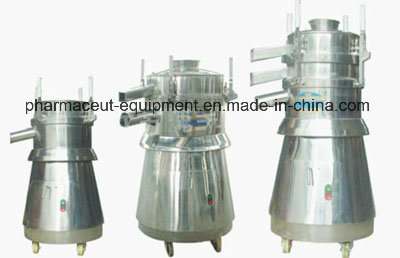

Model ZS-350 ZS-515 ZS-650
Capacity(kg/h) 60-500 100-1300 180-2000
Number of mesh(mesh) 12-200 12-200 12-200
Power (kW) 0.55 0.75 1.5
Speed of principal axis(rpm) 1380 1370 1370
Overall dimension
(L x W x H)(mm)
540x540x1060 710x710x1290 880x880x1350
Weight (Kg) 100 180 250

Pharmaceutical Machinery Vibrating Screen Machine Zs-350
Pharmaceutical Machinery Vibrating Screen Machine Zs-350
Pharmaceutical Machinery Vibrating Screen Machine Zs-350
Pharmaceutical Machinery Vibrating Screen Machine Zs-350
Pharmaceutical Machinery Vibrating Screen Machine Zs-350
