BZS300
BSIT
8422400000
Shanghai, China
20 Sets/Month
T/T, Western Union
ablet deduster polisher machine Feature:

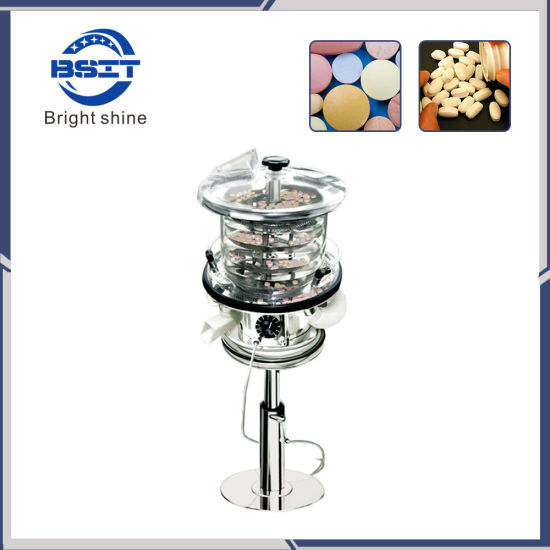

1.Model BZS300 Tablet Deduster is suitable for the dedust of any type of tablets.
2.The whole operation process can be monitored. Between each of the sieve discs the separation part can effectively sep-arate the tablets and powder.
3.It is adapted to any types of tableting machines. Tableting machines
4. meet with GMP stanards
5. small volume and small weight
Working Principle:
1.Tablets enter the inlet A. With the function of vibration the tablets move along the concave channel of filter disc B.
2. When tablets move down to the lower filter disc the tablets can turn upside down automatically.
3. During the process the tablets are polished. When the tablets move to the lowest disc the compressed air will blow away the dust which are sucked away by dust pipe D.
4. Finished clean tablets will be ejected from outlet E
Technical Parameter:
| Model | BZS300 |
| Max Output Capacity (t/h) | 550000(Ø 5) |
| Dedusting Distance (m) | 3.0 |
| Maximum Tablet Diameter (mm) | Ø 5-Ø 25 |
| Power Supply | 1PH 220V/110V 50Hz/60Hz 0.1kw |
| Compressed Air | 0.1 m3 /min 0.05MPa |
| Vacuum | 2.7 m3 /min -0.014MPa |
| Dimension (mm) | (Ø 315-Ø 350) x (770-950) |
| Weight (kg) | 38 |
