Hot Sale Good Quality Pharmaceutical Machine Capsule Filling Machine for Hard Capsule


Inquire Add to Basket

Port: Shanghai, China
Production Capacity: 30sets/Year
Payment Terms: T/T, Western Union, Paypal, Money Gram
Model NO.: NJP 500
Customized: Customized
Condition: New
Warranty: 1 Year
Capsule Product: Granule and Powder
Model: Njp500
Capacity: 30000 PCS/H
No. of Die Orifice: 4
Filling Percentage: 99%
Power (Kw): 380V.50Hz 3.5kw
Vacuum: 27m3/H -0.02-0.08MPa
Machine Dimensions: 1350*1020*1850
Weight (Kg): 850kg
Noise Emission: < 73
Trademark: BSIT
Transport Package: Export Standard Wooden Case
Specification: Meet GMP Standard
Origin: Made in China
HS Code: 8422309090
Type: Preparation Machinery
Finished Dosage Form: Capsule
Precision: High Precision
Certification: GMP
Voltage: 380V
Computerized: Computerized

Product Description

hot sale good quality pharmaceutical machine Capsule Filling Machine for Hard Capsule

This capsule filler is applied to fill powder or granules in the form of slug in hard gelatin capsules.

Brief Introduction of the Machine

PLC control and electrical components choose the international famous brand, such as MITSUBISHI, SIEMENS, SCHNEIDER, OMRON and so on, nicely, safely, reliably. Screen control with computer windows scenically, advanced efficient. Advanced SEW motor and SIEMENS vacuum pump guarantee the stability of the machine.
The machine adopt the High-teach imported cam graduation system, which graduation precision, compact structure, low noise.

01. Stainless steel main machine housing.

Filling rate up to 99% suitable for capsule size "00"" to Size "5"
Multi-vent plugging filling, intermittent motion and frequency control

04. PLC touch screen controller
05. Dust collector and water circulating vacuum pump included
06. Sensor system - alarming first and then stopping machine when any one is happened as following situation.

without powder or pellet
without capsules
open the plastic door
Dust collector, vacuum pump and feeder motor are overload
Inverter is in trouble

07. Electrical control system.
A. Rapidity display.
B. Abnormal station display.
C. Frequency of Inverter display
D. Main motor state
08. 1 set size change parts for main machine.

Hot Sale Good Quality Pharmaceutical Machine Capsule Filling Machine for Hard Capsule

Machine Introduction:

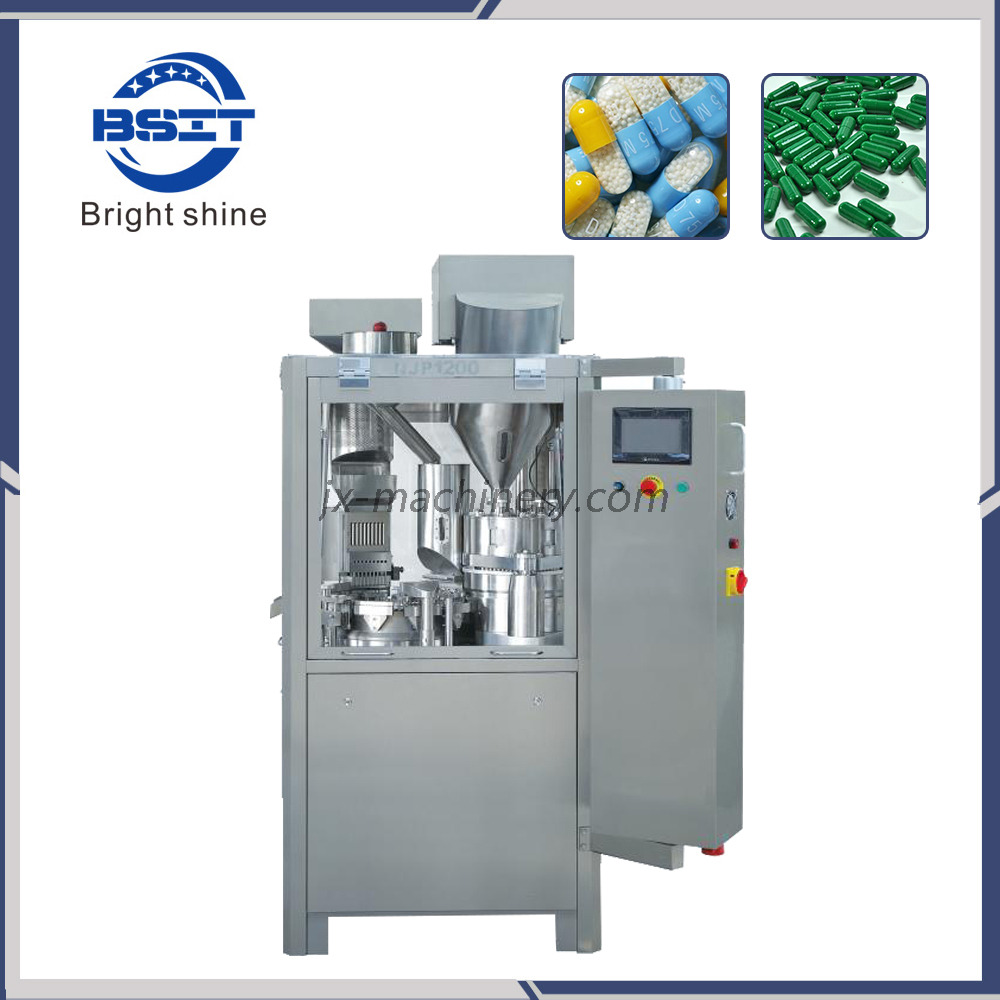

NJP-1200D Fully automatic capsule filling machine is the newest designed equipment, which totally meet GMP, ISO, and USA FDA requirement. This machine is very nice, decent, and easy to operate, especially the electrical control cabinet is independent from machine, we can supply IQ OQ PQ document and CE certification.

This is a newly created full-automatic closed intermittent capsule filling machine with multiple tamping stations. It completes the following process: feeding capsule, detaching capsule, filling, ejecting defective capsule, closing capsule, discharging finished capsule automatically.

Main Technical Data:

Model	NJP500
Output(1 hour)	30000
No. of die orifice	4
Filling percentage	≥ 99%
Power (kW)	380V.50Hz 3.5KW
Vacuum	27m3/h -0.02 ~ -0.08Mpa
Machine dimensions	135010201850
Weight (kg)	850Kg
Noise emission:	< 73dB (A)
