Njp200 Small Automatic Capsule Filling Machine/Softgel Encapsulation Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
NJP200
Customized:
Customized
Condition:
New
Warranty:
1 Year
Capsule:
Hard Capsle
Capacity:
12000 Capsules/Minute
Machine Size:
720X680X1700mm
Suitable for Capsule:
00, 0, and 1,2,3,4#
Dust Collector:
160m3/H -0.02~-0.08MPa
Keywords:
Capsuel Filling Machine
Water Supply:
500L/H, 0.2-0.10 MPa
Materical:
SUS304
Total Power:
3.7kw
Filling Percentage:
>=99%
Weight:
700kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422400000
Type:
Preparation Machinery
Finished Dosage Form:
Capsule
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

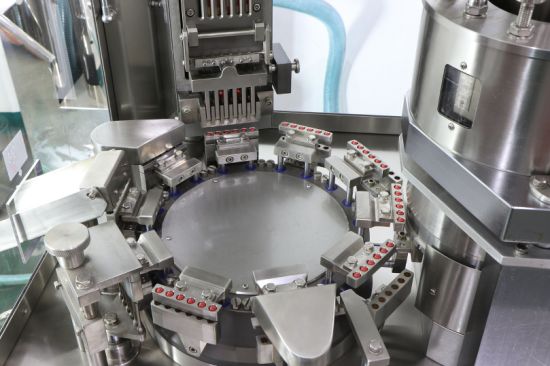

NJP200 small automatic Capsule filling machine/softgel encapsulation machine

Choose our machine advantage:

1. The machine is an intermittent motion and hole plate type filling fully automatic capsule filling equipment.
2. It adopt optimization design combined the characteristics of Chinese medicine and the requirement of GMP,
3.it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, running stably etc.
4.It can finish the following motion at same time: Capsule rejecting, capsule locking, finished capsule discharge and module cleaning etc.
5.This machine is designed for meet the volume-produce on the basis of model NJP-1200 automatic capsule filling machine. I t increase the lifting mechanism that easy to clean. It saves the cost and manpower for the enterprise that need volume-produce.

Main features:

1.I t has been improved the inner design turret, and imports beeline bearing for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
2.The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
3.Single movement for both upper and lower segments with two-lip seal provide a much better sealing performance.
4.It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
5.The multi-bore dosing brings a precision dosage(It is controlled around ± 3.5%); The capsule

NJP200/500/800/1200 capsule filling machine working video https://youtu.be/Q7LvPeld3Vw

Sample:

Njp200 Small Automatic Capsule Filling Machine/Softgel Encapsulation Machine

Main Technical Data:

Model	BNJP500	BNJP800	BNJP1200	BNJP1500
Output(1 hour)	30000	48000	72000	90000
No. of die orifice	4	6	9	12(double line)
Filling percentage	≥ 99%	≥ 99%	≥ 99%	≥ 99%
Power (kw)	380V.50Hz 3.5KW	380V.50Hz 3.5KW	380V.50Hz 3.5KW	380V.50Hz 7.5KW
Vacuum	27m3/h -0.02~-0.08Mpa	27m3/h -0.02~-0.08Mpa	52m3/h -0.02~-0.08Mpa	27m3/h -0.02~-0.08Mpa
Machine dimensions	135010201850	135010201850	135010201850	12209602000
Weight (kg)	850Kg	850Kg	850Kg	1400Kg
