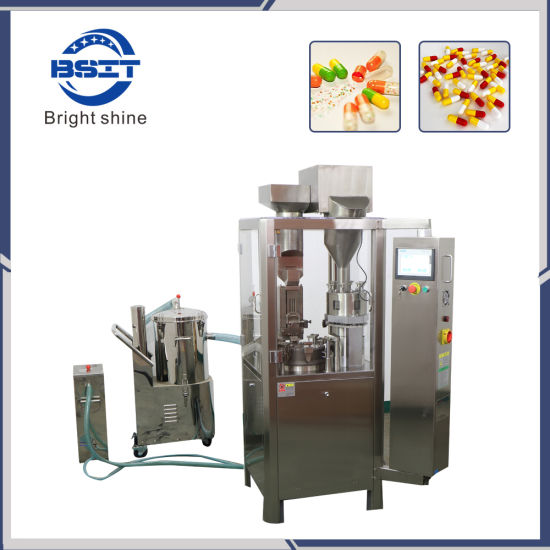

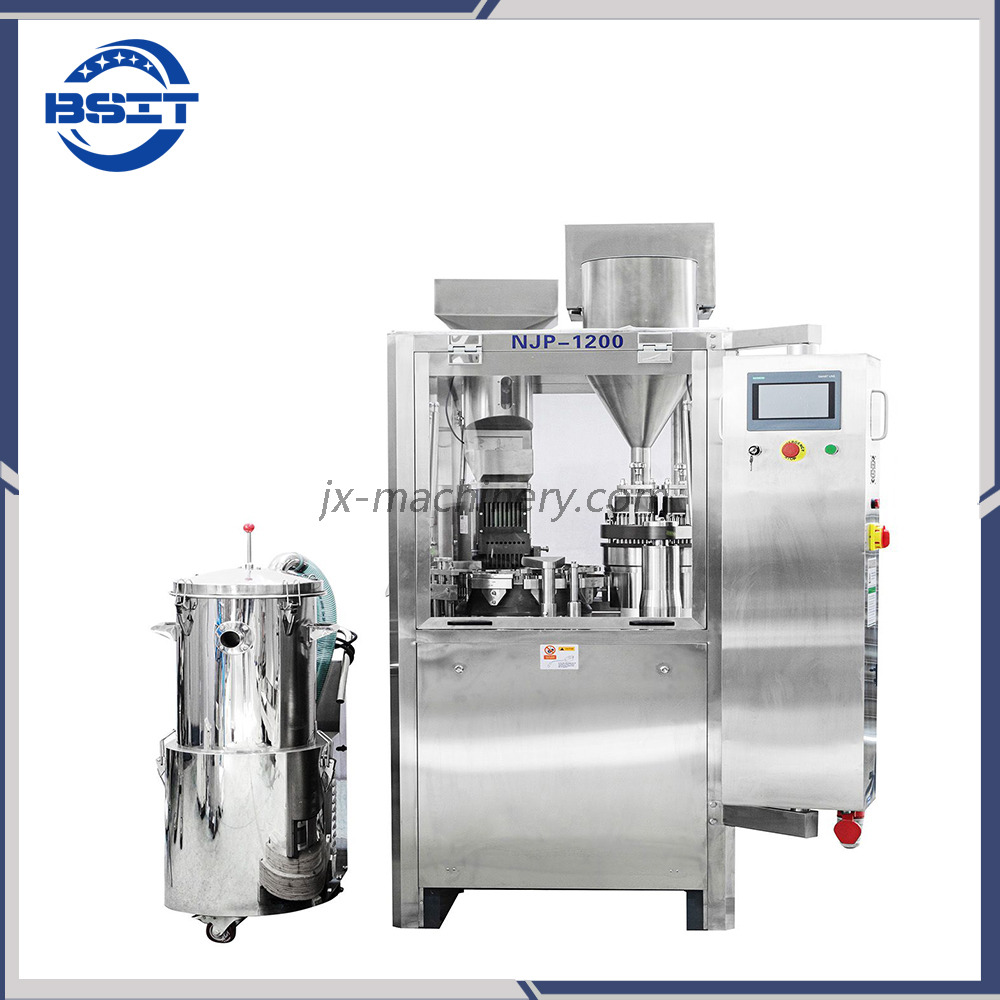

New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine

  • Shanghai, China

  • 30sets/Year

  • L/C, T/T, Western Union, Paypal, Money Gram

  • NJP1200

  • Customized

  • New

  • 1 Year

  • Hard Capsle Filling and Sealing Machine

  • 72000 Capsules/Minute

  • 1020X;860X1970mm

  • 00, 0, and 1,2,3,4#

  • 160m3/H -0.02~-0.08MPa

  • Capsuel Filling Machine

  • 500L/H, 0.2-0.10 MPa

  • SUS304

  • 3.7kw

  • >=99%

  • 900kg

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP Standard

  • Made in China

  • 8422309090

  • Preparation Machinery

  • Capsule

  • High Precision

  • CE, GMP, ISO

  • 380V

  • Computerized

new design NJP1200 hard capsule filling and sealing machine /hard capsule filling mahcine

Choose our machine advantage:

1. The machine is an intermittent motion and hole plate type filling fully automatic capsule filling equipment.
2. It adopt optimization design combined the characteristics of Chinese medicine and the requirement of GMP,
3.it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, running stably etc.
4.It can finish the following motion at same time: Capsule rejecting, capsule locking, finished capsule discharge and module cleaning etc.
5.This machine is designed for meet the volume-produce on the basis of model NJP-1200 automatic capsule filling machine.
I t increase the lifting mechanism that easy to clean. It saves the cost and manpower for the enterprise that need volume-produce.

Main features:

1.I t has been improved the inner design turret, and imports beeline bearing for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
2.The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
3.Single movement for both upper and lower segments with two-lip seal provide a much better sealing performance.
4.It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
5.The multi-bore dosing brings a precision dosage(It is controlled around ± 3.5%); The capsule


NJP200/500/800/1200 capsule filling machine working video https://youtu.be/Q7LvPeld3Vw


New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine



Sample:

New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine


Main Technical Data:
Model BNJP500 BNJP800 BNJP1200 BNJP1500
Output(1 hour) 30000 48000 72000 90000
No. of die orifice 4 6 9 12(double line)
Filling percentage ≥ 99% ≥ 99% ≥ 99% ≥ 99%
Power (kw) 380V.50Hz
3.5KW
380V.50Hz
3.5KW
380V.50Hz
3.5KW
380V.50Hz
7.5KW
Vacuum 27m3/h
-0.02~-0.08Mpa
27m3/h
-0.02~-0.08Mpa
52m3/h
-0.02~-0.08Mpa
27m3/h
-0.02~-0.08Mpa
Machine dimensions 1350*1020*1850 1350*1020*1850 1350*1020*1850 1220*960*2000
Weight (kg) 850Kg 850Kg 850Kg 1400Kg

New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine

New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
New Design Njp1200 Hard Capsule Filling and Sealing Machine /Hard Capsule Filling machine
