High Speed Alu-Alu Suppository Filling Sealing Equipment (GZS-9A)

  • Dalian, China
  • 20 Sets/Year
  • L/C, T/T, Western Union, Money Gram
  • GZS-9A
  • Customized
  • New
  • 1 Year
  • Suppository
  • 16000-22000PCS/Hour
  • 0.5-3.7g
  • Bullet Form, Torpedo Form
  • SS316 Contact with Liquid
  • GMP
  • 17.4mm
  • 17kw
  • BSIT
  • Export Standard Wooden Case
  • meet with GMP standards
  • Made in China
  • 8422303090
  • Pharmaceutical Packaging Machinery
  • Liquid
  • High Precision
  • CE, GMP
  • 380V
  • Computerized
High Speed Alu-Alu Suppository Sealing Machine (GZS-9A)


Working video as following:

https://www.youtube.com/watch?v=7f5x86V-VS4&feature=youtu.be
https://www.youtube.com/watch?v=zesbLtyMzgw&feature=youtu.be



Semi-automatic suppository filling machine , automatic suppositories production line , suppository filling and sealing machine ,suppository filling and sealing production line , suppository filling machine , suppository filling machinery suppository lines , Suppository Machine , suppository processing , suppository shell forming and filling sealing machine , Suppository thermoforming / filling / sealing machine , suppository thermoforming macine , supprository packer machine


High Speed Alu-Alu Suppository Filling Sealing Equipment (GZS-9A)
High Speed Alu-Alu Suppository Filling Sealing Equipment (GZS-9A)
High Speed Alu-Alu Suppository Filling Sealing Equipment (GZS-9A)
High Speed Alu-Alu Suppository Filling Sealing Equipment (GZS-9A)
High Speed Alu-Alu Suppository Filling Sealing Equipment (GZS-9A)

GZS-9A High Speed Suppository Filling and Sealing Production Line with output 16000-22000PCS/h which is made up of high speed suppository belt forming system, filling machine, cooling machine and sealing machine. PLC programmable control and human-computer interface operation the unit is simple to operate and with high automaticity.


All the processes can be made automatically including shell-making, infusing, cooling, shaping, and sealing of the suppositories. It is also of advantages of not infusing in the collapse and automatic rejection of it, automatic colour code deviation rectification, and detecting the infusion quantity. The unit is controlled by PLC procedure with human-machine interface operation and it is the highest automatic suppository equipment in the country today.

Technology Characteristics:

1. The adoption of PLC programmable control and human-computer interface operation the unit is simple to operate and with high automaticity.
2. With the function of automatic deviation rectification the characters' position can be controlled as you like. The suppositories have the neat and good appearance.
3. With the function of detecting collapse, infused quantity, the liquid level of the charging basket.
4. The infusion is adopted the servo motor system exactly adjusting the infusing quantity with menu-memory-function and simple to change the specifications.
5. The adoption of insert-type straight line infusion mechanism has the advantages of correct location, no drop medicine, and no adhesion phenomenon.
6. Cooling protection shut down, the band comes out continuously without end breaking and low waste rate.
7. Not infusing the wastes, auto-drill, and automatic rejection of them at the end of the Machine.
8. Interlock protection, intelligent alarm, and safety assurance.
9. Continuous band-making and sealing and the shearing numbers can be set at will.

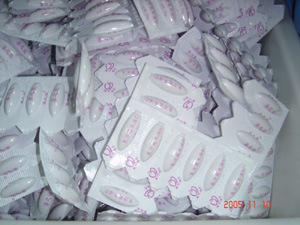

finished aluminum-aluminum suppository :

High Speed Alu-Alu Suppository Filling Sealing Equipment (GZS-9A)

Technical Parameter:
Output 16000-22000 capsules/h
Dosage per suppository cell 0.5-3.7g
Allowable Error of granular weight ± 5%
Shapes of suppository Bullet form, torpedo form
Center distance 17.4mm
Patterns on a die 9 granules
Sheets specification Height: 56-58mm, thickness: 0.15± 0.01mm
Volume of storing fluid vessel 50L
Height of feeding 2000mm
Power voltage 3-phase AC 380V
Total Power 17kw
Air pressure 0.55-0.65MP
Air consumption 1.0m3/min
Water consumption 480L/h
Overall dimensions 4800× 2040× 2200mm
Total weight 2500kg
