High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200

  • Shanghai, China
  • 30sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • NJP-3200
  • Customized
  • New
  • 1 Year
  • 19200 PCS/H
  • High Speed Fully-Automatic Capsule Filling Machine
  • Capsule Filling Machine
  • Capsule Filling Sealing Machine
  • No. 00-5
  • 23(Double)
  • 110m3/H -0.08-0.04MPa
  • >= 99%
  • < +3
  • < 73
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP Standard
  • Made in China
  • 8422309090
  • Preparation Machinery
  • Capsule
  • High Precision
  • CE, GMP
  • 380V
  • Computerized

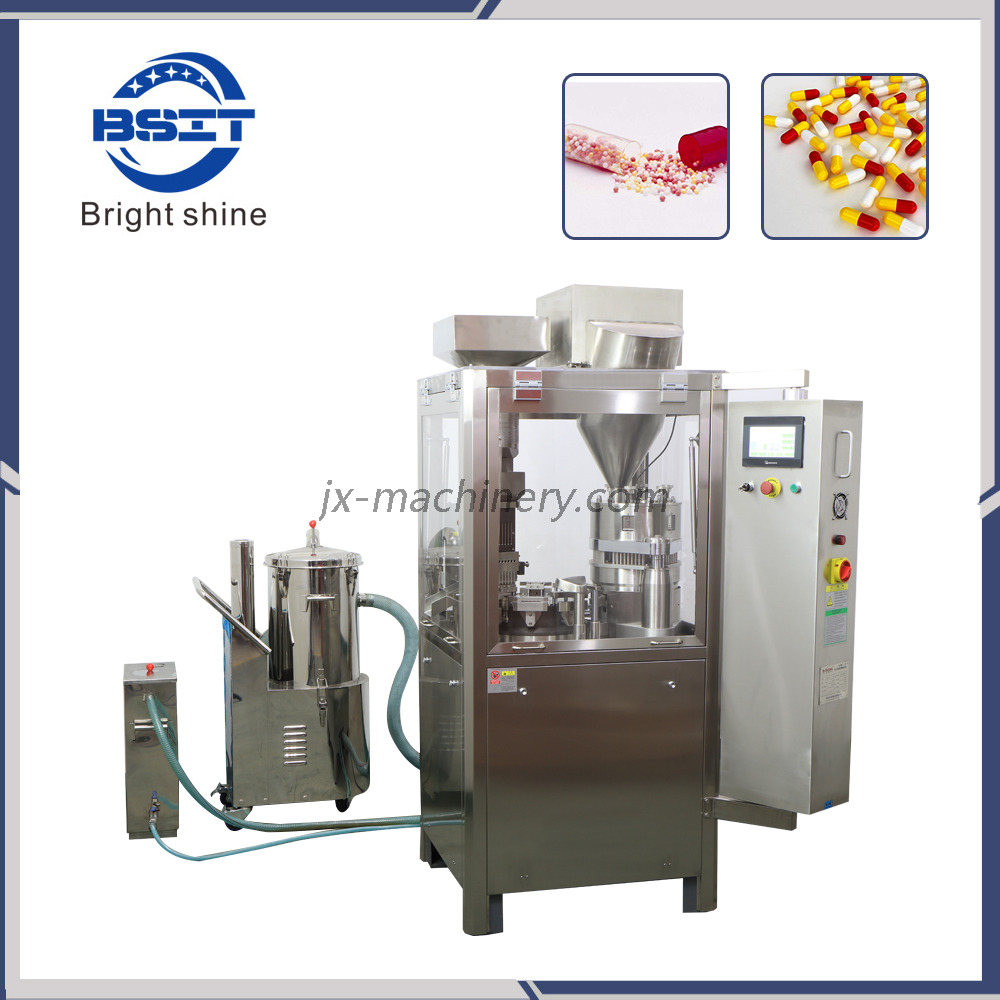

High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate NJP3200

01. Stainless steel main machine parts. (SS304,or SS316L)
02 Max. capacity: 132,000 capsules/h(NJP2200);192,000 capsules/h (NJP3200);396,000 capsules/h(NJP6600) with filling rate up to 99% suitable for capsule size "00"" to Size "5"
03. Multi-vent plugging filling, intermittent motion and frequency control
04. PLC touch screen controller
05. Dust collector and water circulating vacuum pump included
06. Sensor system - alarming first and then stopping machine when any one is happened as following situation.
  1. Without powder or pellet
  2. Without capsules
  3. Open the plexiglass door
  4. Dust collector, vacuum pump and feeder motor are overload
  5. Inverter is in trouble
07. Electrical control system.
A. Rapidity display.
B. Abnormal station display.
C. Frequency of Inverter display
D. Main motor state
08. Spare parts for one set, tool kit & operation manual.
09. Export Standard package

High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200


High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
Sample:

High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200

Main Technical Data:
Name NJP2200 NJP3200
No. of die orifice 19(Double) 23(Double)
Max output (capsules/h) 132000 192000
Vacuum 110m3/h
-0.08-0.04Mpa
110m3/h
-0.08-0.04Mpa
Capsule number No. 00-5
Filling percentage ≥ 99%
Filling difference < ± 3
Idle load noise db(A) < 73
Power 380V 50Hz 5KW 380V 50Hz 6KW
Size L x W x H (mm) 1200x1070x2100 1420x1180x2150
Weight (kg) 1500 2000

High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
High Precision High Speed Fully-Automatic Capsule Filling Machine for GMP Certificate Njp3200
