NJP3200
Shanghai, China
30sets/Year
T/T, Western Union, Paypal, Money Gram

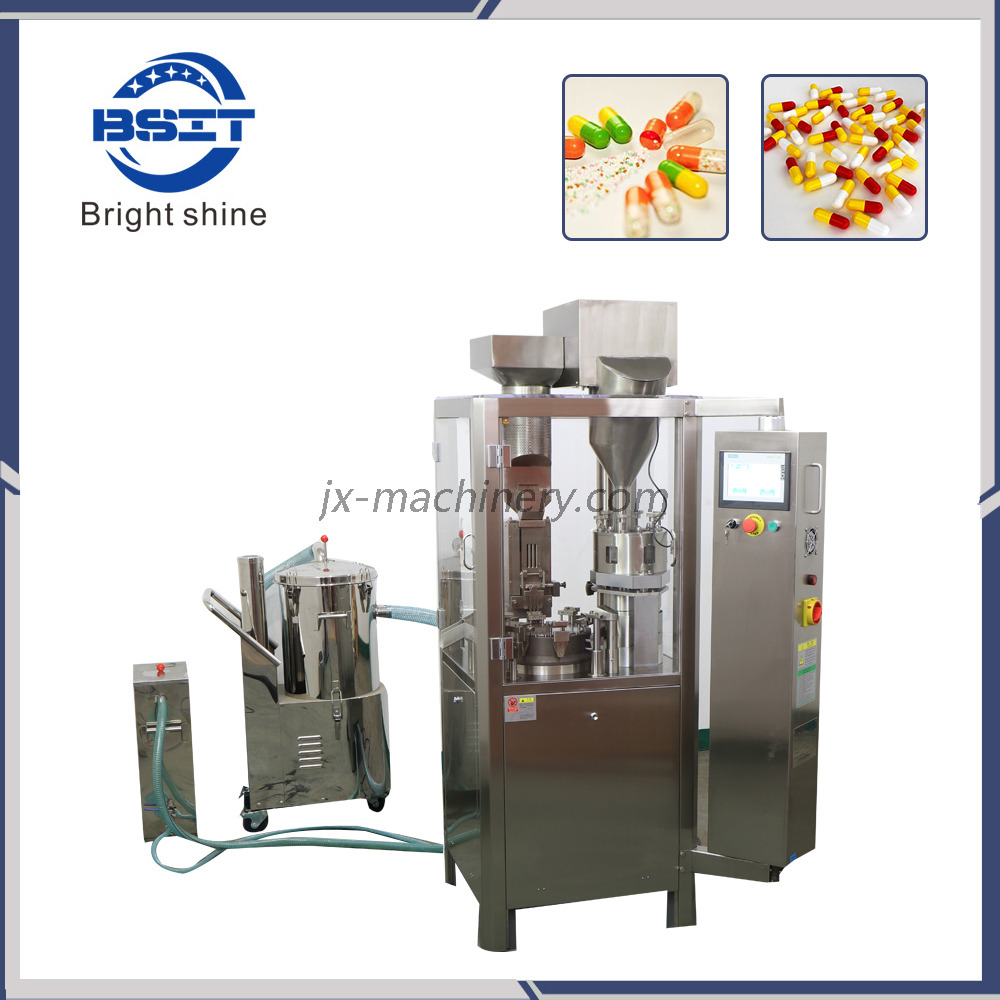

High Precision Encapsulation Machine Capsule Filling Machine (NJP3200)
Introduce:
The machine is an intermittent motion and hole plate type filling fully automatic capsule filling equipment. It adopt optimization design combined the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, running stably etc. It can finish the following motion at same time: Capsule rejecting, capsule locking, finished capsule discharge and module cleaning etc. This machine is designed for meet the volume-produce on the basis of model NJP-1200 automatic capsule filling machine. It increase the lifting mechanism that easy to clean. It saves the cost and manpower for the enterprise that need volume-produce.
Main features:
It has been improved the inner design turret, and imports beeline bearing for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
Single movement for both upper and lower segments with two-lip seal provide a much better sealing performance.
It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
The multi-bore dosing brings a precision dosage(It is controlled around±3.5%); The capsule
It has a protector equipment for the operator and the machine. It has an automatic pause equipment when it is lack for the material. It has a steady and safe working, it is better choice for the hard capsule made factories.
Additional function of blowing and suction of module. Ensure clean dust in mould hole.
Main technical data:

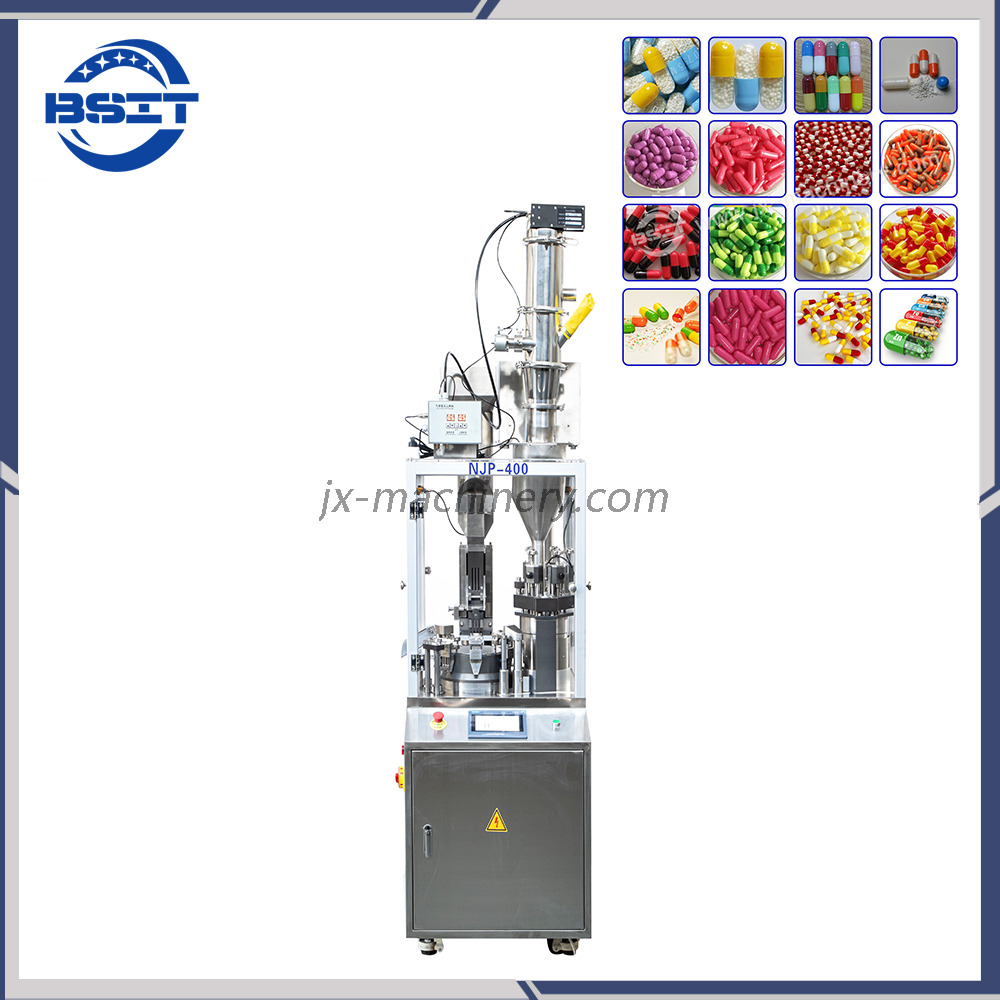

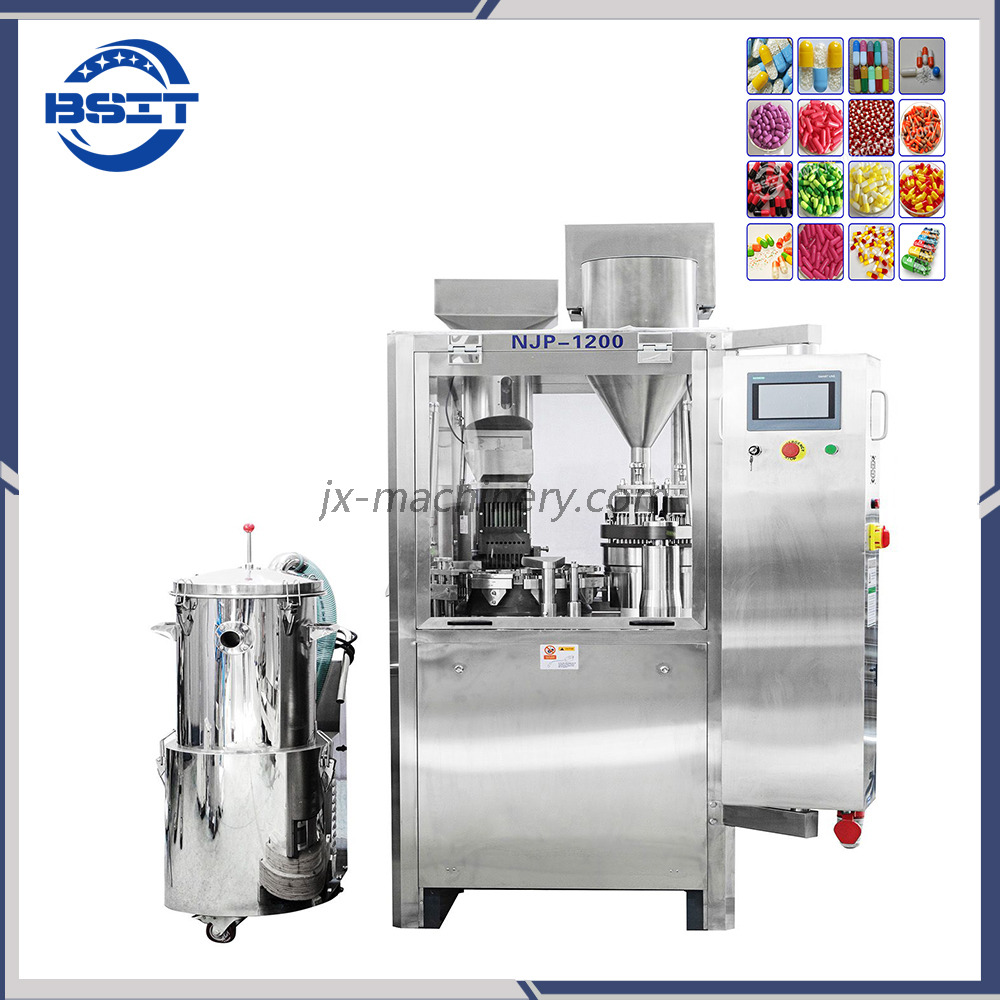

Model | NJP200 | NJP400 | NJP600 | NJP800 | NJP1000 | NJP1200 |
Productivity | 200pcs/min | 400pcs/min | 600pcs/min | 800pcs/min | 1000pcs/min | 1200pcs/min |
Size of capsule | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E |
Total power | 3.32kw | 3.32kw | 4.9kw | 4.9kw | 5.75KW | 5.75KW |
Water supply | 250L/h-0.02～-0.06 MPa | 250L/h-0.02～-0.06 MPa | 250L/h-0.02～-0.06 MPa | 250L/h-0.02～-0.06 MPa | ||
Dust collector | 0.06m3/min 0.3Mpa | 0.06m3/min 0.3Mpa | 0.06m3/min 0.3Mpa | 0.06m3/min 0.3Mpa | 0.06m3/min 0.3Mpa | 0.06m3/min 0.3Mpa |
720×680×1700mm | 720×680×1700mm | 930×790×1930mm | 930×790×1930mm | 1020×860×1970mm | 1020×860×1970mm | |
Weight | 700KG | 700KG | 800KG | 800KG | 900KG | 900KG |

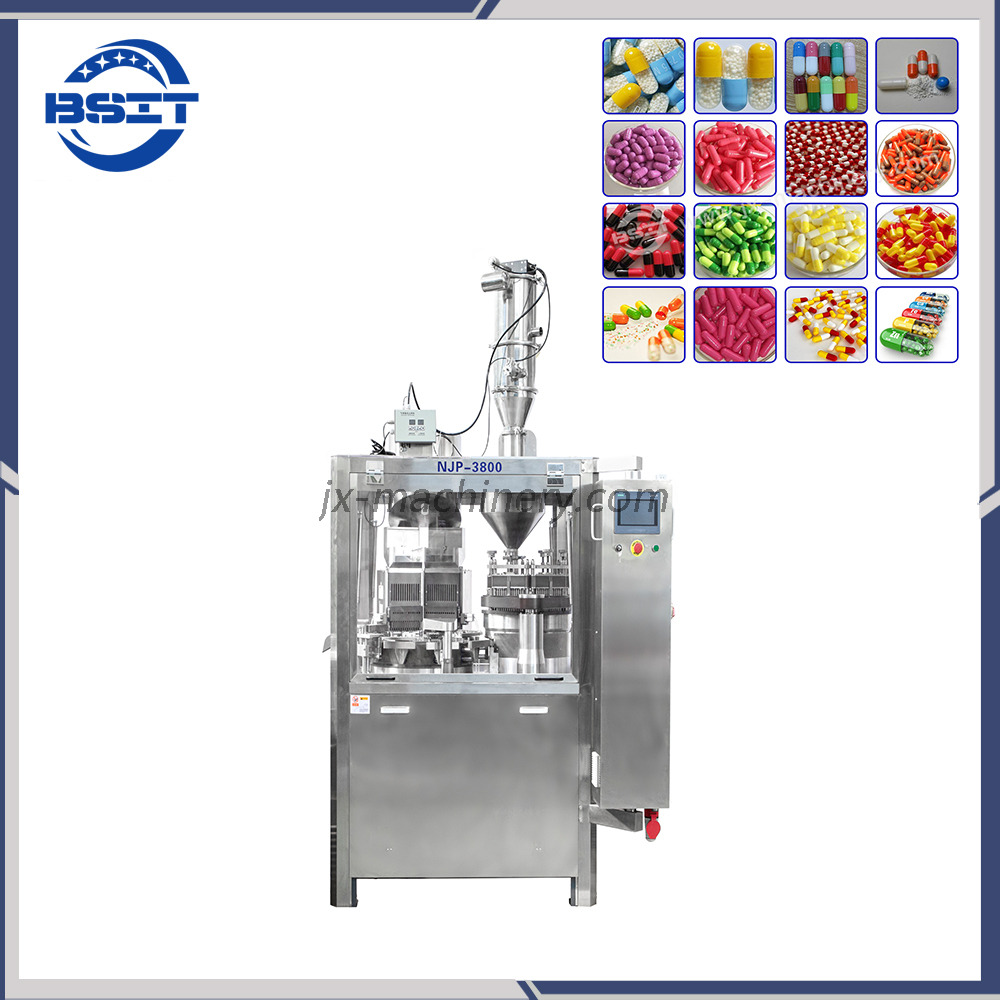

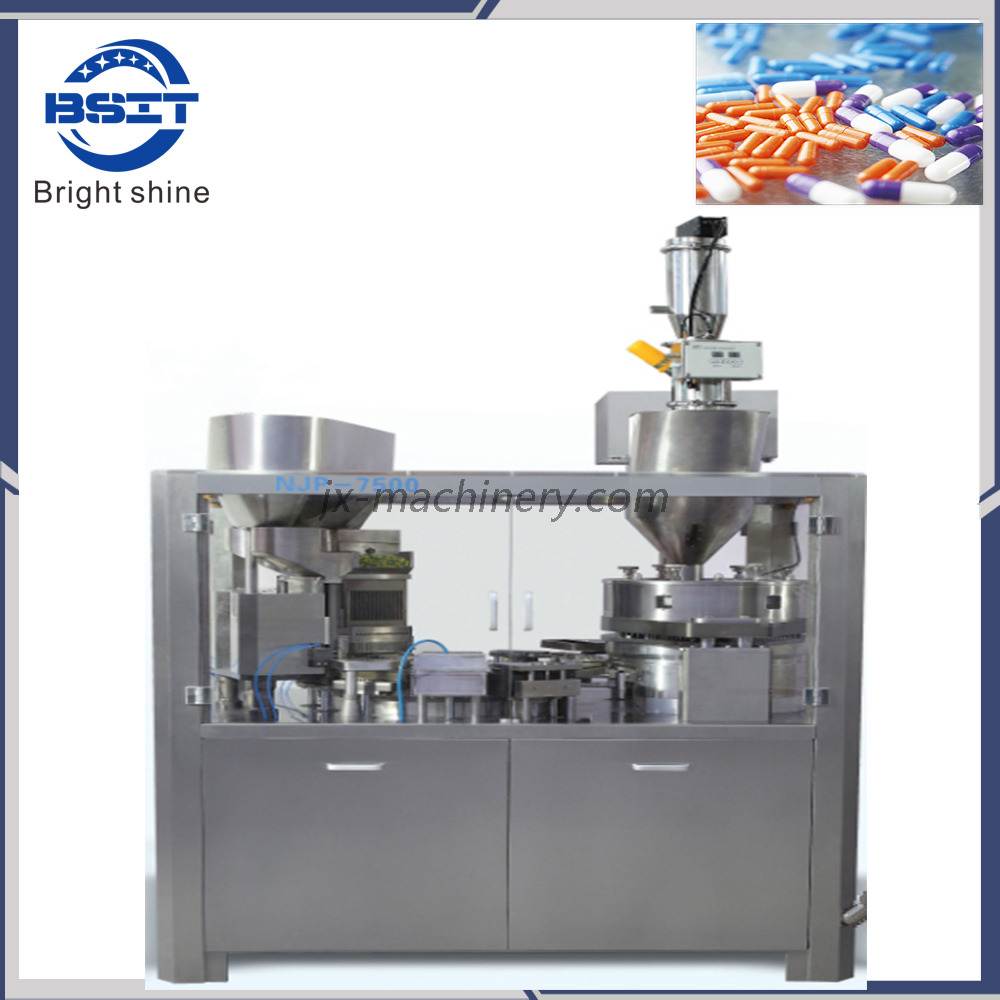

Model | NJP2000 | NJP3200 | NJP3500 | NJP3800 | NJP7500 | |
Productivity | 2000pcs/min | 2500pcs/min | 3200pcs/min | 3500pcs/min | 3800pcs/min | 7500pcs/min |
Size of capsule | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E | A-E capsule size00”-5” and safety capsule A-E |
Total power | 6.45KW | 6.45KW | 8kw | 9.55kw | 9.55kw | 13.5kw |
Water supply | 250L/h-0.02～-0.06 MPa | 250L/h-0.02～-0.06 MPa | 250L/h-0.02～-0.06 MPa | 250L/h-0.02～-0.06 MPa | 250L/h-0.02～-0.06 MPa | 250L/h-0.02～-0.06 MPa |
Dust collector | 0.06m3/min | 0.06m3/min | 0.06m3/min | 0.06m3/min | 0.06m3/min | 0.06m3/min |
