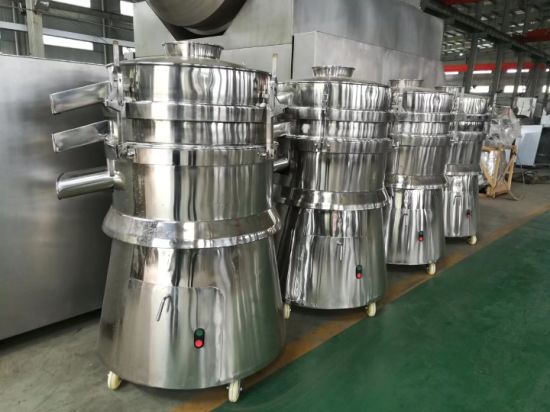

GMP Certificate High-Efficient Sifting Machine (ZS-1000)

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • ZS-1000
  • 1500 Rpm
  • 1370X1555X 1436mm
  • BSIT
  • Standard Export Wooden Case
  • China
  • 8438800000
  • Sifting Machine
  • Vibrating Screener
  • Pharmaceutical or Food, Cosmetic
  • 200-2900kg/H
  • 12-200 Mesh
  • 1.5kw
High-Efficient Sifting Machine (ZS-1000)

Application :
This machine is widely used in pharmaceutical, food, chemical and light industries. Etc, to blend powdery materials and granulate.
The blending and granulating procedures and completed in the same vessel of the machine. Powderymaterials in the stationary conic vessel remain in a semiflowing and rolling state owing tother agitation by a blending paddle, and are fully mixed. After pouring in adhesives, the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials tuan into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.

GMP Certificate High-Efficient Sifting Machine (ZS-1000)
GMP Certificate High-Efficient Sifting Machine (ZS-1000)
GMP Certificate High-Efficient Sifting Machine (ZS-1000)
GMP Certificate High-Efficient Sifting Machine (ZS-1000)

Working principle:

1.It suitable for the mixing and grain producing, it is widely used in the industry of pharmaceutial, medicine, food, chemistry and light industry.

2. The two processes, mixing and graining producing are completed in the same container, the powder in the fixed taper container changes to half-flowing state by milling of the blending oar and achieves complete mixing. With the immiting of the bond, powder becomes wetting. By the extrusion, attrition and pinch of the blending oar and canister cliff, powder changes to loose soft material. The soft material gradually forms small and well-proportioned humid grain by the grain producing oar.

Main Feature:


1. Current display: Measuring power consumption and monitoring the granulating process.
2. Cooling of interlayer jacket of material groove: Improving quality of granule.
3. Frequency inverter adjustable speed of stirring paddle: The granule diameter can be controlled easily.
4. Frequency inverter adjustable speed of cutter: The granule diameter can be controlled easily.
5. Conical material groove: Materials can be mixed uniformly.
6. Pneumatic automatic discharge: Sealed and reliable.
7. Pneumatic pot cover lifting: Easy operation
8. The rotational speed can be controlled manually: You can try to find out the technological parameters for experiment
9. Input the set value through the touch-type keyboard to conduct program control: The quality of every batch is stable and uniform.
10. Gas filled sealing of rotating shaft: Preventing the rotating shaft from being bonded by dust.
11. Water-spraying cleaning of rotating shaft: Easy cleaning and short cleaning time
12. The parts that touch material are mare made of (polished) stainless steel: Meeting the specifications of GMP.
13. Appropriate height of discharge outlet: It can be used together with the drying equipment.
14. Can be equipped with PLC and human machine interface.


Technical parameter:
Model ZS-800 ZS-1000 ZS-1200
Capacity(kg/h) 150-2000 200-2900 300-4500
Number of mesh(mesh) 12-200 12-200 12-200
Power (kw) 0.75 1.5 2.2
Speed of principal axis(rpm) 1500 1500 1500
Overall dimension (LxWxH)(mm) 1100x950x1150
(double outlet)
1330x1100x1280
(double outlet)
1380x1350x1320
(double outlet )
Weight (Kg) 320 420 500
Overall dimension (LxWxH)
(mm)
1120× 1330× 1220 1370× 1555× 1436 1175× 2185× 1845
Weight (kg) 500 700 1500
