Cigarette Liquid Filling Sealing Capping Machine (5-20ml)

Inquire Add to Basket

  • Shanghai, China

  • 50 Sets/Year

  • L/C, T/T, Western Union

  • YGG

  • Pressure

  • Pneumatic Lifting

  • Linear

  • Bottle

  • Plastic

  • 80 Bottles/Min Per 10 Ml

  • Round Eyedrop Bottle or Similar

  • Min. Ø20mm Max. Ø30mm

  • SS316 Contact with Product

  • 5-30ml

  • +-2%

  • 220V, 50Hz 1p

  • 50~70L/Min, 4~6bar

  • Length 2500, Width 1420, Height 1500

  • 900kg

  • BSIT

  • Export Standard Wooden Case

  • meet with CGMP standards

  • Made in China

  • 8422303090

  • Volumetric Filling Machine

  • Fully Automatic

  • Liquid

  • Multi-Head

  • Multi-Room Feeding

  • Plunger

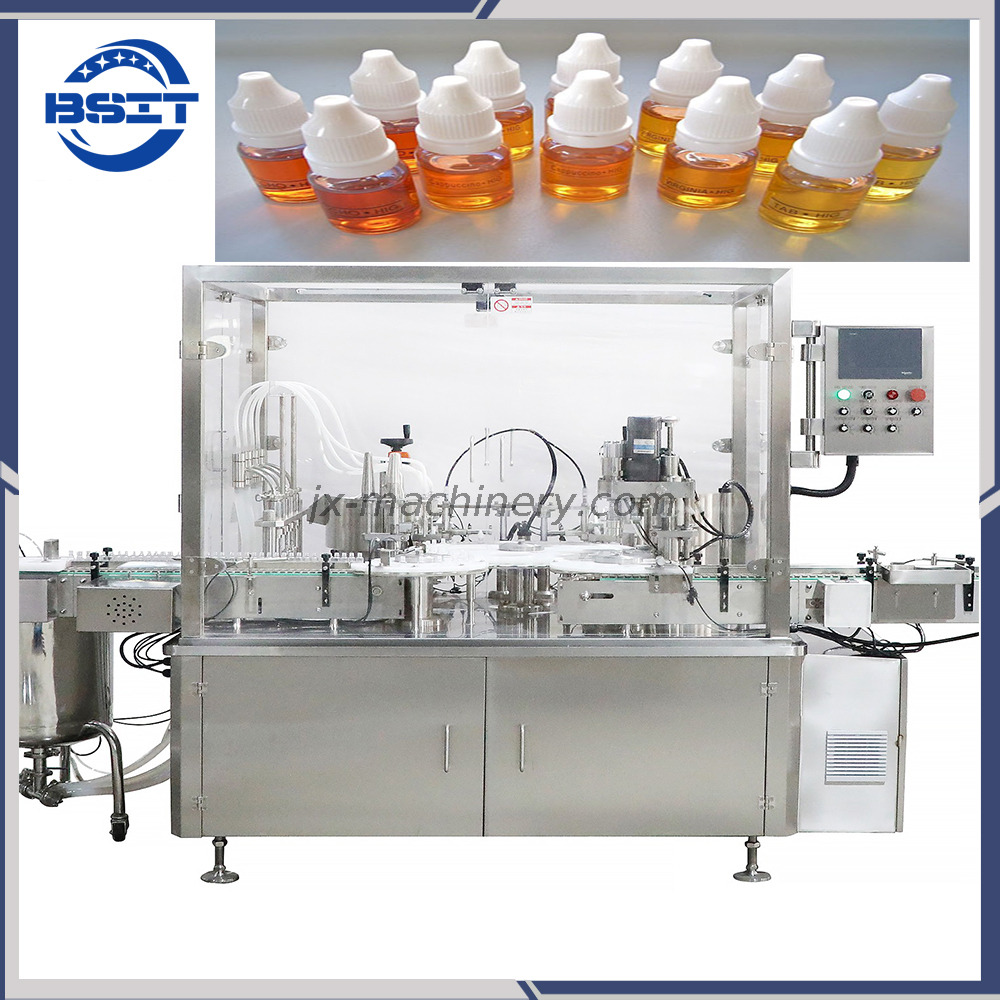

Cigarette Liquid Filling Sealing Capping Machine (5-20ml)

why choose our machine /our machine advantage:
  1. This machine has been to UK Europe big E-Liquids factory .
  2. Suitable for all kind CBD oil/Vape oil/Liquid oil/eyedrop
  3. Guarantee 1 year
  4. Supply free FAT testing
  5. Supply SAT testing according to customer request.
Feature:
  1. Touch screen platform
  2. Host frequency variable speed controlling, automatically show the current frequency
  3. Filling amount of all pumps are major adjusted in one tine, minor adjusted for each pump
  4. No bottle no filling
  5. (Mechanical hand places the plug, no bottle no plugging)
  6. (No plugging no cap placing)
  7. Torque capping head, there are clamping and positioning on capping position
  8. Stop when no bottle in-feeding, automatically start with bottle
  9. Torque limiting device when the wheel clamping the bottle, the machine will stop
  10. Equipped with one set of 30L buffering tank ,two proximity switch of floating ball+ angle valve control liquid feeding

Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)


10ml E-cig liquid line (eye-drop filling machine) capacit 60pcs/min

1. BLP-120 automatic bottle Unscrambler
2. BDXYG2/1/1 E-cig Filling Plugging Capping Monobloc:

3. BSMT-A Adhesive Label Wrap-Around Machine

4. BSM-125 carton boxing machine

Technical Features:

Kind of bottle Round eyedrop bottle or similar
Bottle size Min. Ø20mm Max. Ø30mm
Speed 80~100bpm on 10ml~5ml
Filling volume 5ml~30ml
Filling accuracy ±2%
Power 220V 50/60Hz 1.5kw
Compress air require 50~70L/min, 4~6bar
Machine size mm Length 2500, width 1420, height 1500
Machine weight: 900kgs

Related bottle carton packing machine as folloiwng :
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)

Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)

Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
Cigarette Liquid Filling Sealing Capping Machine (5-20ml)
