10ml High Speed Electric Cigarette Liquid Filler (export UK)

  • Shanghai, China
  • 50 Sets/Year
  • L/C, T/T, Western Union, Paypal, Money Gram
  • YGG
  • Customized
  • New
  • 1 Year
  • Electric Cigarette Liquid Filler
  • 80-100 Bottles/Min Per 10 Ml
  • E-Cig Liquid, Eye-Drop, Oral Liquid
  • SS316 Contact with Product
  • Min. 20mm Max. 30mm
  • 5-30ml
  • +-2%
  • 220V 50/60Hz 1.5kw
  • 50~70L/Min, 4~6bar
  • Length 2500, Width 1420, Height 1500
  • BSIT
  • Export Standard Wooden Case
  • meet with CGMP standards
  • Made in China
  • 8422303090
  • Pharmaceutical Packaging Machinery
  • Liquid
  • High Precision
  • CE, GMP
  • 220V
  • Computerized
10ml High Speed Electric Cigarette Liquid Filler (export UK)

General Features:

E-Cig liquid, Eyedrop filling, plugging ∩ping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a load turntable, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug ∩ sorter, Plug ∩ placer, cap screw-on system, unload tray. The bottle loading/unloading is done manually, through loadingturntableØ500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.


10ml High Speed Electric Cigarette Liquid Filler (export UK)

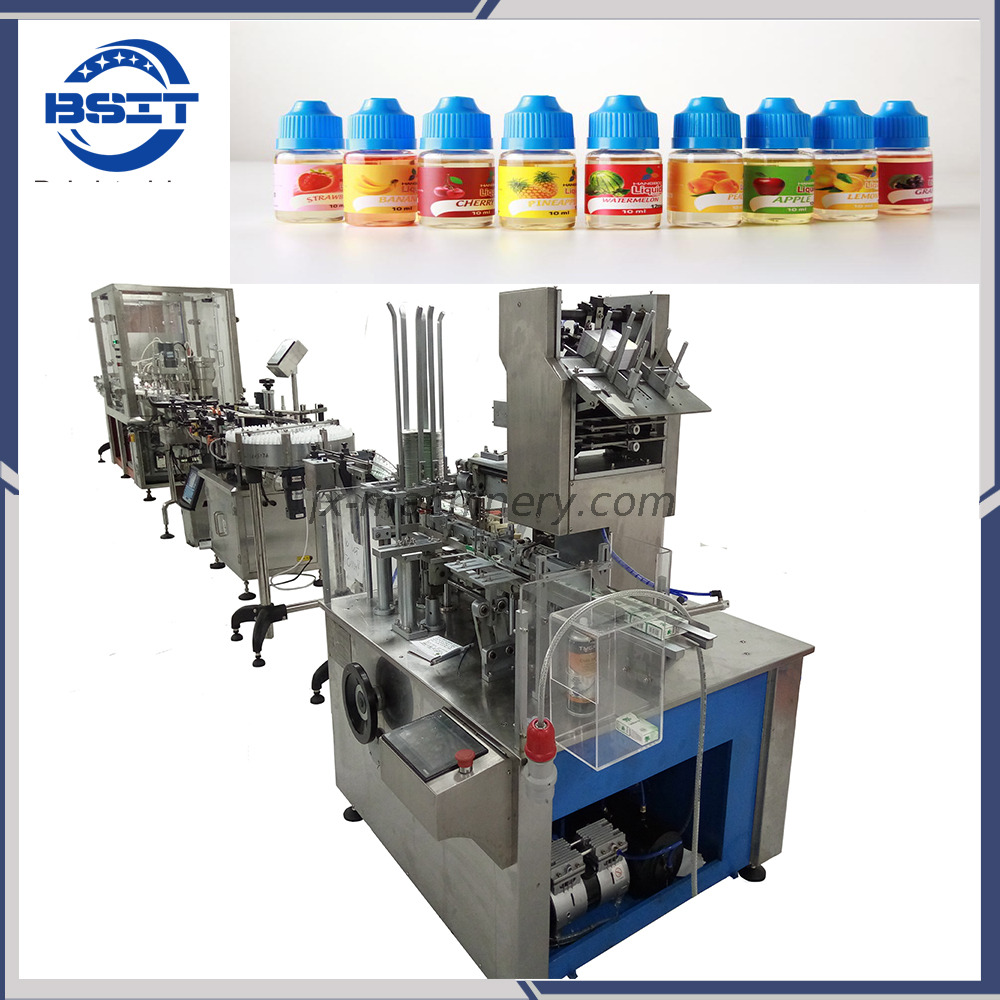

10ml E-cig liquid line (eye-drop filling machine) capacit 80pcs/min

1. BLP-120 automatic bottle Unscrambler
2. BYG4/2/2 E-cig Filling Plugging Capping Monobloc:

3. BSMT-A Adhesive Label Wrap-Around Machine

4. BSM-125 carton boxing machine
10ml High Speed Electric Cigarette Liquid Filler (export UK)
10ml High Speed Electric Cigarette Liquid Filler (export UK)
10ml High Speed Electric Cigarette Liquid Filler (export UK)
10ml High Speed Electric Cigarette Liquid Filler (export UK)
10ml High Speed Electric Cigarette Liquid Filler (export UK)
10ml High Speed Electric Cigarette Liquid Filler (export UK)
10ml High Speed Electric Cigarette Liquid Filler (export UK)

Technical Features:

Kind of bottle Round eyedrop bottle or similar
Bottle size Min. Ø20mm Max. Ø30mm
Speed 80~100bpm on 10ml~5ml
Filling volume 5ml~30ml
Filling accuracy ±2%
Power 220V 50/60Hz 1.5kw
Compress air require 50~70L/min, 4~6bar
Machine size mm Length 2500, width 1420, height 1500
Machine weight: 900kgs
10ml High Speed Electric Cigarette Liquid Filler (export UK)
Production line drawing
10ml High Speed Electric Cigarette Liquid Filler (export UK)
10ml High Speed Electric Cigarette Liquid Filler (export UK)
10ml High Speed Electric Cigarette Liquid Filler (export UK)
