Capsule and Powder Separately Machine Automatically Nqf-800

  • Shanghai, China
  • 20 Sets/Month
  • T/T, Western Union, Paypal, Money Gram
  • NQF800
  • Non-Customized
  • New
  • 1 Year
  • 100-800 PCS/Min
  • 220 V50/60Hz 0.2kw
  • 0# 1# 2# 3#,4#,5#
  • Hard Empty Capsule
  • Open Capsule Taking Powder Machine
  • Open Capsule Machine
  • SUS304 or SS316
  • 600X600X1200mm
  • Open Blister Capsule, Take Powder
  • 50kg
  • BSIT
  • Export Standard Wooden Case
  • GMP
  • Made in China
  • 8422400000
  • Preparation Machinery
  • Capsule
  • Precision
  • GMP
  • 220V
  • Non-Computerized
Nqf 800capsule and Powder Machine Separately Automatically

Capsule and Powder Separately Machine Automatically Nqf-800
Capsule and Powder Separately Machine Automatically Nqf-800



This is the world first machine designed to separate capsule and reuse powder, granules, pellets, or micro-tablets which is built to replace the traditional way of milling, sieving and retrieving powder. Our machine is first of its kind to separate and retrieve round pellets and micro-tablets. It is ergonomically designed; suitable for all capsule sizes with applicable change parts; easy to clean and maintain; user-friendly and meet the GMP standard in the industry. It is excellent machine to own by capsule manufacturing plants or R&D laboratories, where powders are extremely expensive and GMP is strictly required.

WORKING PRINCIPLE:

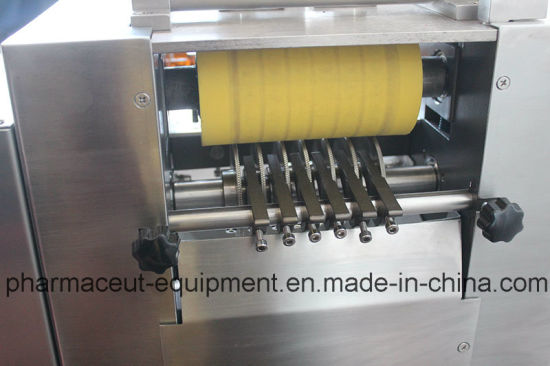

The capsules enter through the guide from the sorting system are pushed into separating device by the horizontal fork. The blades on the device hold the cap and body of the moving capsules. The capsule moving according to the opening rail formed by the blades; then, it will separate the body and cap of capsule completely.

TECHNICAL PARAMETER:

Type
Item
NQF300B NQF800B
Capacity 100~300pcs/min 100~800pcs/min
Capsule Size 0# 1# 2# 0# 1# 2#
Power ~220V 50HZ 1A ~220V 50HZ 1A
Dimension 600×600×1200mm 600×600×1200mm
Weight 45kg 50kg
PACKING LIST
NO. Name Type Qty Unit
1 Main Machine NQF300 1 set
2 Molder with the machine set
3 Optional molder set
4 Spare Blade set
5 Spare Blade set
6 Spare Blade set
7 Spare Blade set
8 Special Tools 2 set
9 Big Spring Plate 1 set
10 Small Spring Plate 6 set
11 QC cert 1 set
12 Manule 1 set

Capsule and Powder Separately Machine Automatically Nqf-800
Capsule and Powder Separately Machine Automatically Nqf-800
Capsule and Powder Separately Machine Automatically Nqf-800
Capsule and Powder Separately Machine Automatically Nqf-800
