Capacity 40 Tube/Min High Quality Effervescent Tablets Filling Sealing Capping Packing Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
BSP40A
Filling Principle:
Atmospheric Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Plastic
Packing Container:
PP Tube+PE Cap
Product:
Effervescent Tablet, Tablet
Process:
Counting , Filling and Capping
Filling Capacity:
10-30 Tablets/Tube
Materical:
SUS304
Tablet Diameter:
16-30mm
Tablet Thickness:
3-8mm
Output:
40 Tube/Min
Dimensions:
2000X1600X1680mm
Weight:
450kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422303090
Type:
Count Filling Machine
Automatic Grade:
Automatic
Material Type:
Effervescent Tablet
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Multi-Room Feeding
Dosing Device:
More Channels

Product Description

Capacity 40 Tube/Min High Quality Effervescent tablets Filling Sealing Capping Packing Machine

Choose our machine advantage:

1. filling effervescent tablet quantity 30pcs/tube

2.The BSP-40A Tube Filling Machine For Tablet is applicable to the packing bigger and thinner tablets which are orderly fed into bobbin bottles in single row in an overlapping way.

3.The device utterly adopts a PLC for centralized control, it is verified in fiber and photoelectric detections and other kind of detections to have steady performance and reliably automatic operation. It can automatically give alarms and shut down in case of no tablets, bottles or covers. Its part in contact with the tablets is made of superior 304 or 316 stainless steel, which totally meets the GMP requirement.

4.Thus, it is the best device for pharmaceutical factories. Health product factories and food factories to pack effervescent tablets and other products alike.
5. have capacity 40 tube/min and 60tubes/min speed as optional

BSP40A Effervescent Tablet into tube Packing Machine working video https://youtu.be/KTAhQncgXGQ

Capacity 40 Tube/Min High Quality Effervescent Tablets Filling Sealing Capping Packing Machine

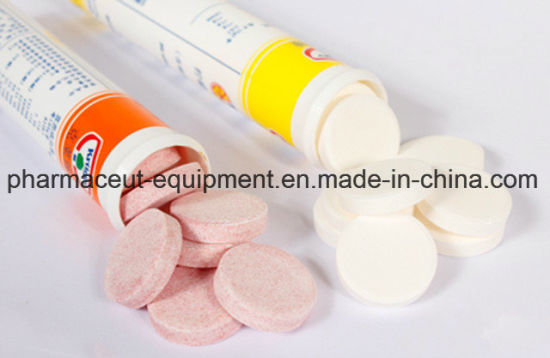

Sample:

Capacity 40 Tube/Min High Quality Effervescent Tablets Filling Sealing Capping Packing Machine

Technical Parameter:

voltage	220V50Hz
power :	0.8KW
feeding capacity :	10-30 tablets/bottle
tablet diameter	16mm -30mm
tablet thickness	3mm -8mm
output	40 bottles/minute
External dimensions	2000mm 1600mm1680mm
Weight: about	450KG
