Hot Sale Effervescent Tablet Wrapping Filling Tube Packing Machine (BSP-40)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
BSP-40
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Chute Pneumatic Combination Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Tube or Bottle
Name:
Effervescent Tablet Wrapping and Filling Into Tube
Keywords:
Tablet Wrapping Filling Machine
Packing Container:
Straight PP Tube and PE Cap
Product:
Effervescent Tablet or Vitnam C
Process:
Counting , Filling and Capping, Labeling
Filling Capacity:
10-30 Tablets/Tube
Capacity:
40 Rolls/Min
Dust Collector by Buyer Customer Supply:
Dust Collector by Buyer Customer Supply Inlet Di
Overal Size:
2300mm*1400mm*1600mm
Weight:
420kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422303090
Type:
Count Filling Machine
Automatic Grade:
Automatic
Material Type:
Solid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Dual-Chamber Feeding
Dosing Device:
Multi-Channels

Product Description

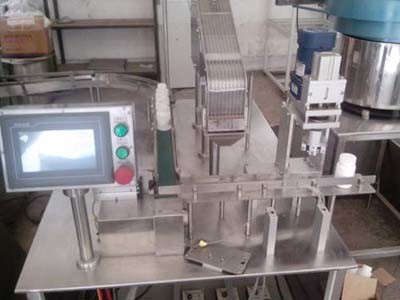

Hot Sale Effervescent Tablet Wrapping Filling Tube Packing Machine (BSP-40)

Why choose our The BSP-40A Effervescent tablet into Tube Filling Machine ?

It is the best new packing for pharmaceutical factories .health product factories and food factories to pack effervescent tablets and other products alike into straight tube (PP tube +PE cap)
Tablet is applicable to the packing bigger and thinner effervescnet tablets which are orderly fed into bobbin bottles in single row in an overlapping way .
3. this machine by a PLC for centralized control, it is verified in fiber and photoelectric detections and other kind of detections to have steady performance and reliably automatic operation.
4. It can automatically give alarms and shut down in case of no tablets , bottles or covers .
5. This machine only 1-2 worker, lower consumption meet with GMP requierment. Design tablets is made of superior 304 or 316 stainless steel ,
6. BSP40A effervescent tablet into tube packing machine can single work, so can with tablet wrapping machine, labeling machine, carton packing machine make a production line

BSP40A Effervescent Tablet into tube Packing Machine working video https://youtu.be/0EcLWhMRFpU

Tablet wrapping machine as optional parts

Machine main Component parts function :

1.feeding vibrating : put the tablets into tablet hoppers by manual, it will feed tablets into sorting device,this feeding vibration and sorting device automatically. when tablet is over that will stop send tablet, otherwise will send tablet.
2.tablet sorting parts. it will make no-sorting tablet arrange well according to good direction and design quantity
3.send wrap-roll parts: it is control by servo-motor according to design length and send wrap-roll paper and cutting .
4.wrapping material parts: when it has check tablet and wrapping paper that will wrapping tablet finish automatically
5.tablet-roll conveyor channel: finish wrapping tablet through conveyor channel into bsp40a filling tube machine
6.electric control parts: this machine running process by plc control. it will carry out automatically, when lack packing product, it will alarm and stop machine automatically

JZJ40 wrapping machine Main electric parts:

No	Name	Brand	Origin
1	plc+touch screen+ electrically	mitsubishi+ china beijing kunlun +schneider
2	cylinder and electric-magnetic valve+ wrapping tablet and send paper servo motor	airtac+ leisai
3	photoelectricity, magnetic switch	sunx, airtac

JZJ40 wrapping machine technical data:

voltage	220v50hz
power :	0.8kw
feeding capacity :	10-20 tablets/roll
tablet diameter	16mm-25mm
tablet thickness	3mm-8mm
output	40 rolls/minute
supporting facilities	purified compressed air whose pressure and consumption are 0.5~0.6mpa and 0.2m3/minute respectively.
compressed air by buyer customer supply
dust collector by buyer customer supply	inlet diameter is 38mm
overall dimensions	2300mm1400mm1600mm
weight: about	420kg.

the BSP-40A tube filling machine for tablet is applicable to the packing bigger and thinner tablets which are orderly fed into bobbin bottles in single row in an overlapping way.

Hot Sale Effervescent Tablet Wrapping Filling Tube Packing Machine (BSP-40)

PP tube and PE cap Sample:

Hot Sale Effervescent Tablet Wrapping Filling Tube Packing Machine (BSP-40)

BSP40A Hot Sale Effervescent Tablet Filling Tube Packing Machine

technical parameter :

voltage	220v50hz
power :	0.8kw
feeding capacity :	10-30 tablets/bottle
tablet diameter	16mm -30mm
tablet thickness	3mm -8mm
output	40 bottles/minute
external dimensions	2000mm 1600mm1680mm
weight: about	450kg
