Automatic with Spraying System Pill Candy/Sugar/Tablet/Film Coating Machine

Availability:
  • BGB

  • BSIT

  • 842240

  • Shanghai, China

  • 50 Sets/Month

  • L/C, T/T, Western Union, Paypal, Money Gram

                                          Automatic with Spraying System Pill Candy/Sugar/Tablet/Film Coating Machine
Application:

1. BGB-1/3/5F High-efficiency coating machine is a special laboratory equipment which used for coating film on traditional Chinese and Western tablets and pills in pilot run.

2.This equipment is manufactured according to the requirements GMP in pharmaceutical industry.

3.The entire outer surface, coating drum (coating pan).spraying device and all parts in contact with medicine are all made of stainless steel. The whole process is controlled by microprocessor-based programmable control system, and also can be controlled manually. The control system has functions such as a wide range of application, selection of running state, control of speed and temperature, control of negative pressure, complete display of control parameters, recording and printing of working state. All the coating operation is carried out under an airtight condition and is free from dust emission and liquid splash.

3.So that this machine is a high quality, high efficiency, reliable, clean, energy saving, easy operation and new type coating equipment which obeys SOP regulations and is widely used as laboratory equipment.

4. it is SS316/SUS304 contact with product.

5. all machine guarantee for 1 year

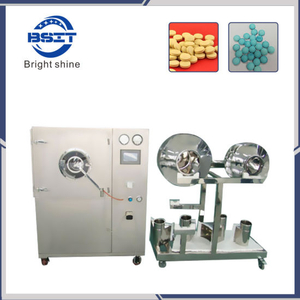

Main machine photo with 3 interchangable pots:


BGB5F-01

Drum sample :

Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
Electrica cabinet

Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
Spray gun device

Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
Discharge device
spray gun-01

SPRAY GUN-03

This machine made of parts as following list

1)

2)
3)
4)
5)
6)
7)
Main machine (Including heat exchanger, AHU)
Peristaltic pump
1 piece spray gun+ rack
Materials discharge device
Coating drum rack & coating drums
Magnetic stirrer
Small slurry mixing device
5F type

OEM10132-313


Drums:5L,1L
1set

1set
1set
1set

1set
1set

Features:

  1. Function of integrated design

  2. One machine with three change drums

  3. It is the best model for exploring coating technology in pharmaceutical laboratory.

  4. The coating drum can be replaced according to the coating technology batch

  5. Replacement of the coating drum is convenient and fast.

  6. Control and display the negative pressure in coating pan

  7. Display air pressure of the supply air of HEPA filter

  8. Control and display the temperature

  9. Control and adjust the atomization surface of slurry

  10. Control the program of spray gun and atomization

  11. Design of gun cleaning and anti-blocking

  12. Design the functions of memory and printing

  13. Designed the functions of impulse and dust removing


Technical specifications :


Model BGB-3F BGB-5F BGB-10F
Production capacity (kg/run) 3 5 10
Three drums for one machine(kg , when bulk density is 1) 1/3 1/3/5 3/5/10
Diameter of drum(mm) 300/380/480 300/380/480 300/380/480
Speed-adjusting range of film coating drum (rpm)   6-30 6-30 6-30
Motor power of main machine (kW) 0.37 0.37 0.37
Temperature-regulating range of hot air (° C ) Normal temperature ~ 80 ° C Normal temperature ~ 80 ° C Normal temperature ~ 80 ° C
Filtration accuracy of hot air ( mm) 0.5 mm (100000 grade) 0.5 mm (100000 grade) 0.5 mm (100000 grade)
Motor power of air heater (kW) 0.25 0.25 0.25
Power of air electric heating(kW) 5 5 5
Motor power of exhaust machine (kW) 1.1 1.1 1.1
Overall dimension of main machine (mm) 1100×750×1500 1250×900×1680 1250×900×1680
Weight of main machine (kg) 380 380 400


Power supply:3-phase 5-wire 400V 20A
Clean air Pressure
Air consumption
>0.4 MPa
≤0.6 m3/min.
 Water supply:pressure   > 0.15MPa

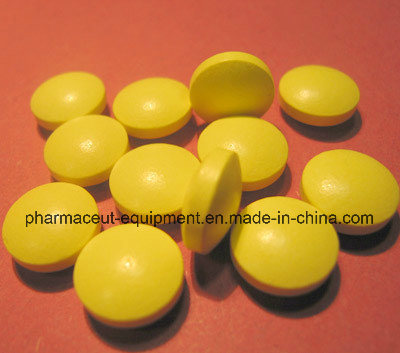

Sample:


360截图165702058311987-01

Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)

Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
Lab Small Capacity Tablet Pill Film Coating Machine (coating pan interchangable)
