Automatic Bottle Box Catoning Packing Machine (ampoule/vial/blister/injector/suppository)

  • Shanghai, China

  • 30 Sets/Year

  • T/T, Western Union, Paypal, Money Gram

  • BSM-125P

  • Catoning Packing Machine

  • 30-120 Boxes/Min

  • 250-350G/M2

  • 60-70G/M2

  • 1-4 Fold

  • 120-160L/Min

  • 380V, 50Hz, 3p

  • 0.75kw

  • 2400 mm X1140 Mmx1800 mm

  • 1200kg

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP Standard

  • Made in China

  • 8422303090

  • ISO9001, GMP, ISO, CE

  • Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Dining, Medical, Food

  • Electric

  • Engineers Available to Service Machinery Overseas

  • Carton Packaging Machinery

  • Automatic

Automatic Bottle box Catoning Packing Machine (ampoule/vial/blister/injector/suppository)

Main uses:

The equipment is mainly used for the bottle type (round bottle, square bottle,flat bottle ,shaped bottle,etc.),and the cosmetics, food , health care products like bottled items automatic cartoning, to box more than sticks. blister into box, injection vial,ampoule,suppository,pill,plastic ampoule into box packing model

Feature:

1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance, operation is easy.


Automatic Bottle Box Catoning Packing Machine (ampoule/vial/blister/injector/suppository)

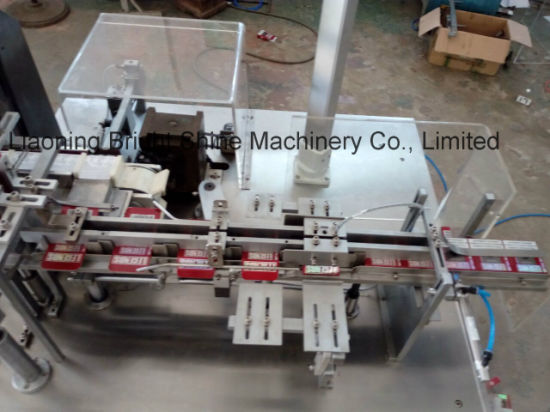

Sample:

Automatic Bottle Box Catoning Packing Machine (ampoule/vial/blister/injector/suppository)


Technical parameters:
Item Parameters
Encasing speed 30-120 boxes/min
Box Quality requirement 250-350g/ M*M [ Base on carton size ]
Dimension range
( L× W× H )
( 65-150 ) mm× ( 30-85 ) mm× ( 14-50 ) mm
C Quality requirement 60-70g/ M*M
Unfolded leaflet specification
( L× W )
( 80-250 )mm× ( 90-170 )mm
Fold range
( L× W )
[ 1-4 ] Fold
Compressed air Working pressure ≥ 0.6mpa
Air consumption 120-160L/min
Power supply 220V 50HZ
Main motor power 0.75kw
Machine dimension ( L× W× H ) 2400 mm × 1140 mm × 1800 mm
Machine weight about 1200kg


Automatic Bottle Box Catoning Packing Machine (ampoule/vial/blister/injector/suppository)
Automatic Bottle Box Catoning Packing Machine (ampoule/vial/blister/injector/suppository)
Automatic Bottle Box Catoning Packing Machine (ampoule/vial/blister/injector/suppository)
