LM
BSIT
Shanghai, China
30 Sets/Year
T/T, Western Union, Paypal, Money Gram
1 set
wooden case packing

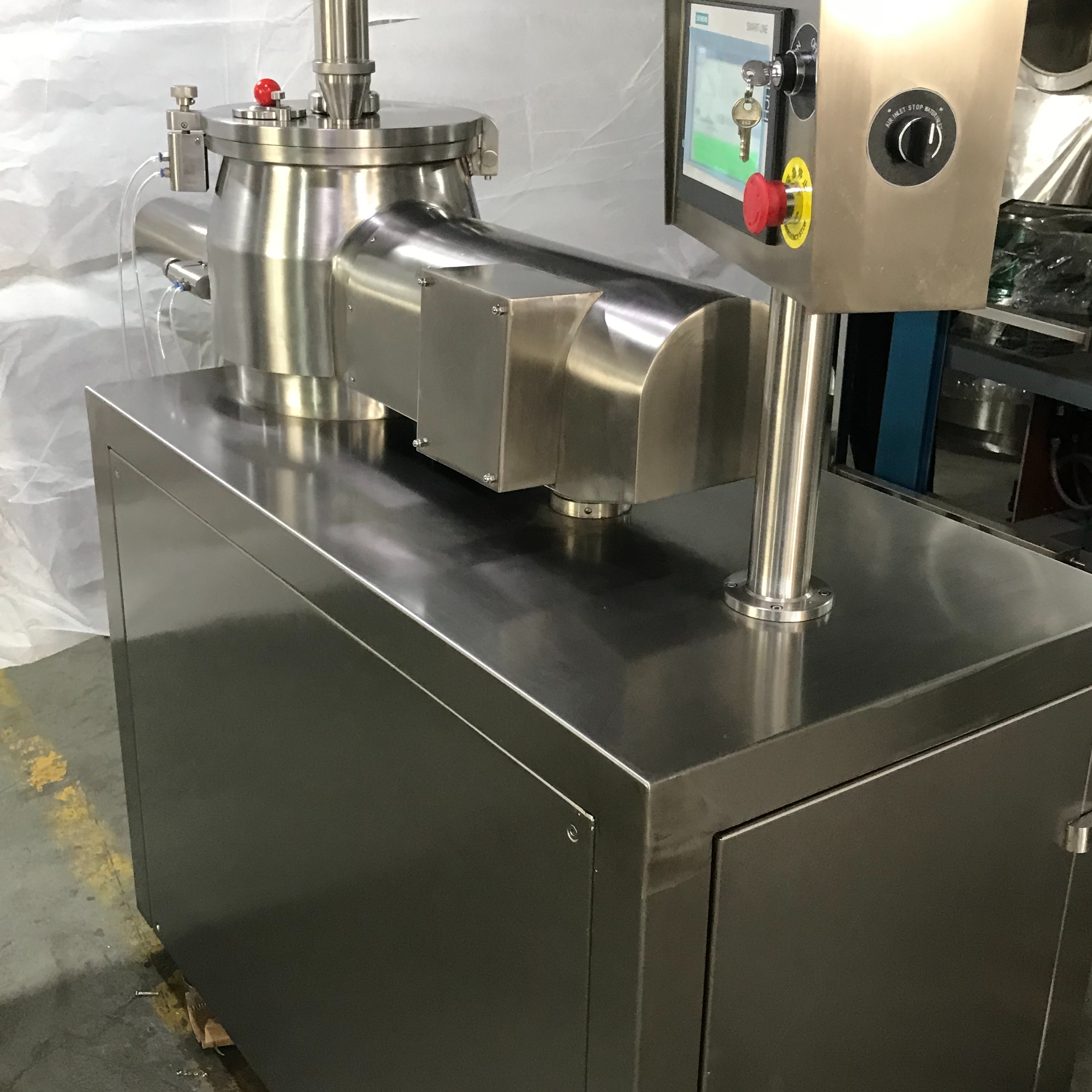

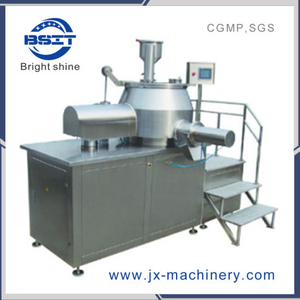

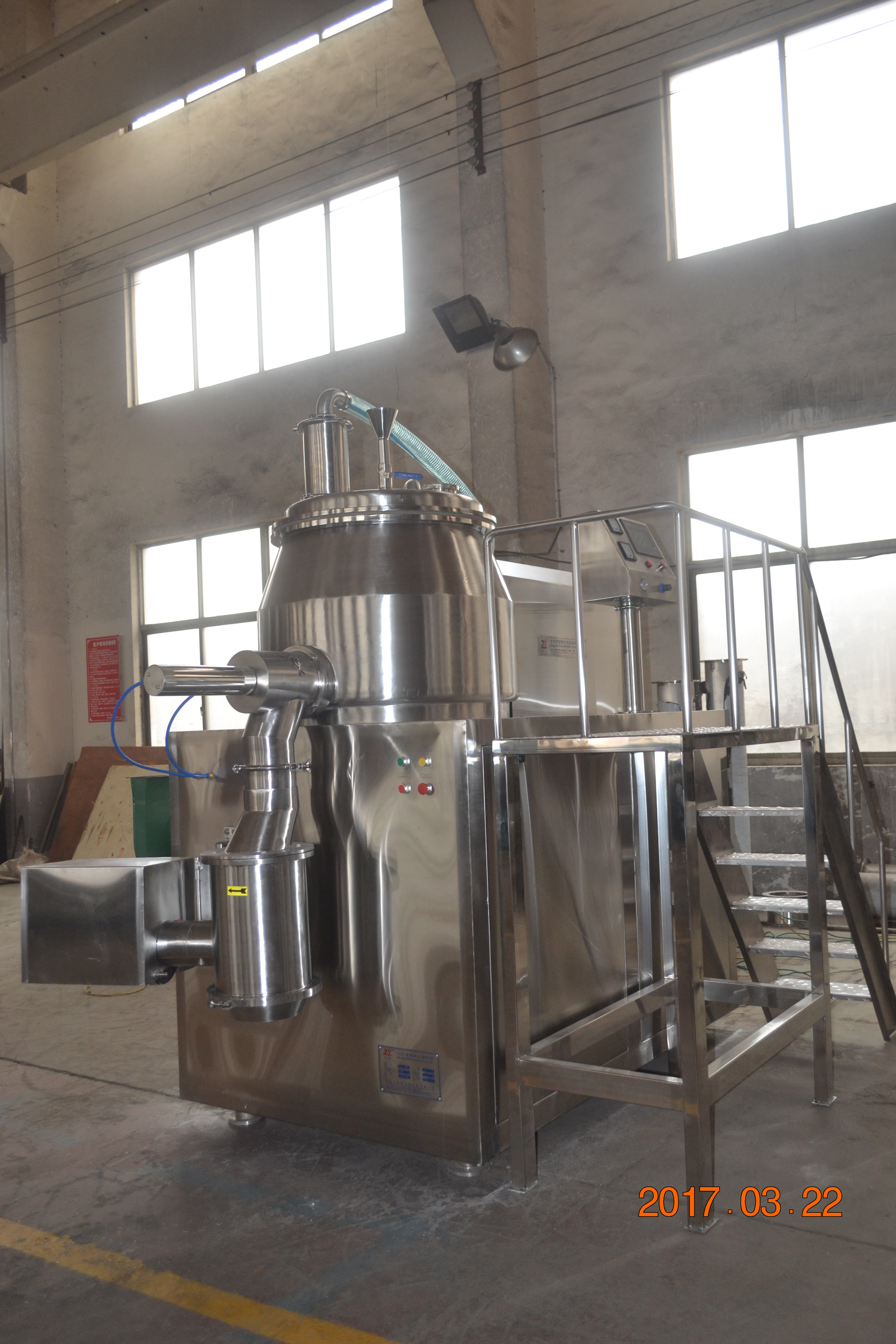

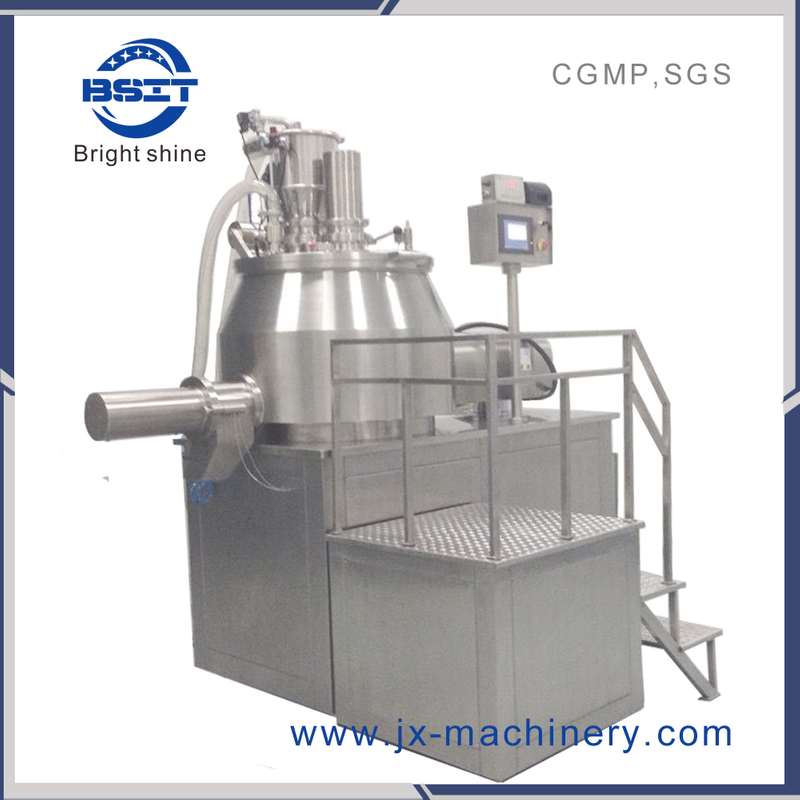

LM series Wet Mixer Granulator
This machine is widely used in pharmaceutical, food, chemical and light industries, etc. to blend powdery materials and granulate.

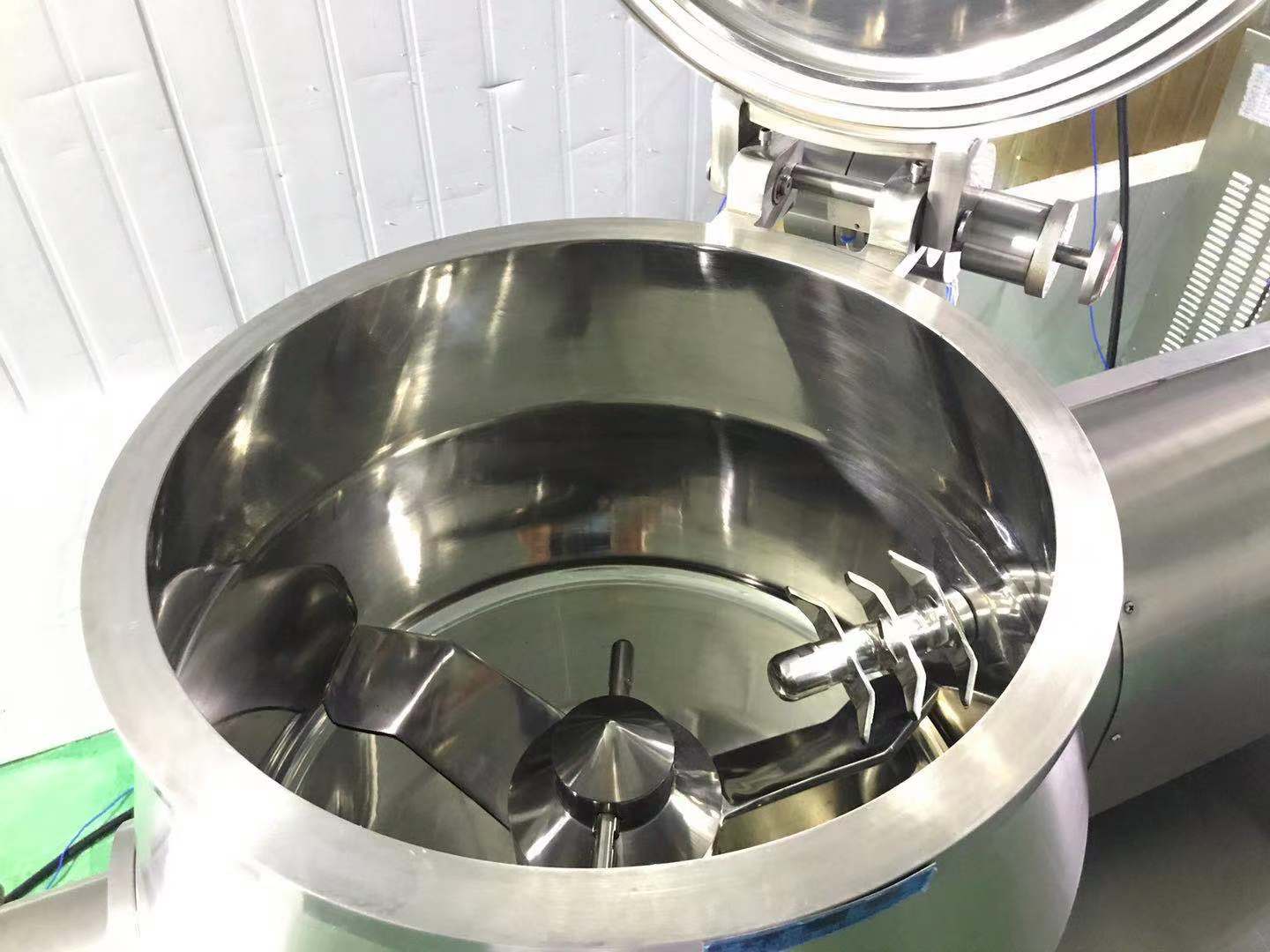

The blending and granulating procedures and completed in the same vessel of the machine. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives, the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.
Technical Parameters (The right of alteration is reserved):
Model/specifications | Din | LM10 | LM50 | LM100 | LM200 | LM300 | |
Material Groove | Total Volume | dm3 | 10 | 50 | 100 | 200 | 300 |
Service Capacity | dm3 | 2-7 | 12-35 | 25-70 | 80-100 | 120-150 | |
Max inside Diameter | mm | 294 | 500 | 640 | 788 | 988 | |
Driving System | Rotational Speed of Stirring Paddle | r、p、m | 100-1000 | 20-500 | 8-250 | 30-250 | 30-200 |
Power of Motor | KW | 2.2 | 5.5 | 7.5 | 15 | 20 | |
Rational Speed of Cutter | r、p、m | 50-3000 | |||||
Power of Motor | kw | 0.75 | 1.5 | 3 | 4 | 7.5 | |
Weight
Dimensions | Length (L) | mm | 1500 | 2000 | 2400 | 2200 | 2400 |
Total Height (H) | mm | 1300 | 1500 | 1560 | 2000 | 2300 | |
Height of Discharge Outlet (h) | mm | 700 | 700 | 730 | 930 | 930 | |
Width (B) | mm | 600 | 760 | 900 | 1700 | 1800 | |
Weight of Machine | kg | 260 | 400 | 700 | 1100 | 1300 | |
LM series Wet Mixer Granulator
This machine is widely used in pharmaceutical, food, chemical and light industries, etc. to blend powdery materials and granulate.
The blending and granulating procedures and completed in the same vessel of the machine. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives, the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.
Technical Parameters (The right of alteration is reserved):
Model/specifications | Din | LM10 | LM50 | LM100 | LM200 | LM300 | |
Material Groove | Total Volume | dm3 | 10 | 50 | 100 | 200 | 300 |
Service Capacity | dm3 | 2-7 | 12-35 | 25-70 | 80-100 | 120-150 | |
Max inside Diameter | mm | 294 | 500 | 640 | 788 | 988 | |
Driving System | Rotational Speed of Stirring Paddle | r、p、m | 100-1000 | 20-500 | 8-250 | 30-250 | 30-200 |
Power of Motor | KW | 2.2 | 5.5 | 7.5 | 15 | 20 | |
Rational Speed of Cutter | r、p、m | 50-3000 | |||||
Power of Motor | kw | 0.75 | 1.5 | 3 | 4 | 7.5 | |
Weight
Dimensions | Length (L) | mm | 1500 | 2000 | 2400 | 2200 | 2400 |
Total Height (H) | mm | 1300 | 1500 | 1560 | 2000 | 2300 | |
Height of Discharge Outlet (h) | mm | 700 | 700 | 730 | 930 | 930 | |
Width (B) | mm | 600 | 760 | 900 | 1700 | 1800 | |
Weight of Machine | kg | 260 | 400 | 700 | 1100 | 1300 | |
