YD Hardness Tester for Tablet with Printer

YD Hardness Tester for Tablet with Printer
Availability:
  • YD
  • BSIT
  • Shanghai, China
  • 7 Sets/Week
  • L/C, T/T, Western Union, Paypal, Money Gram

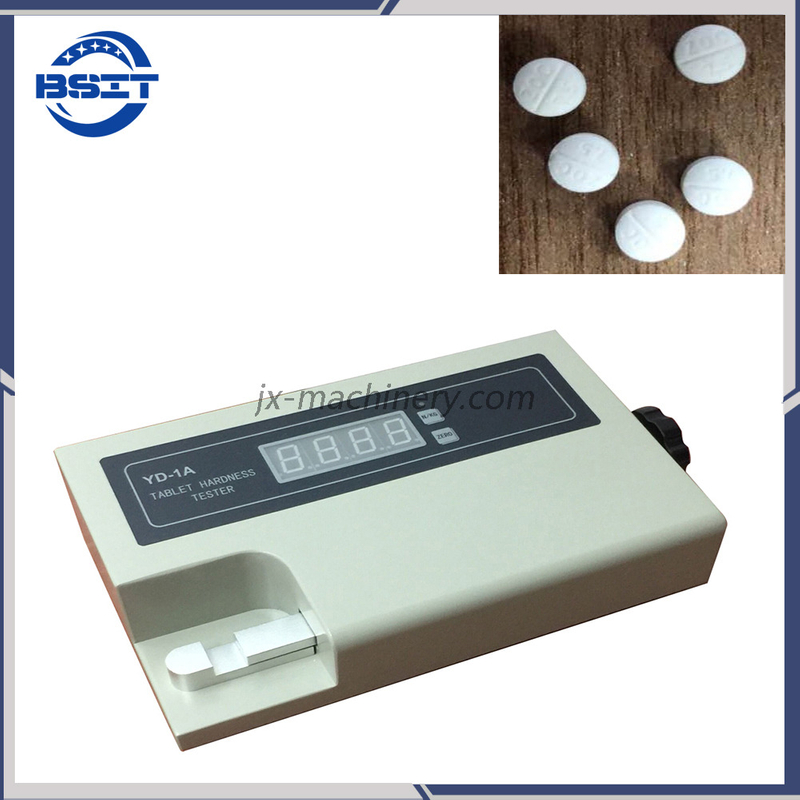

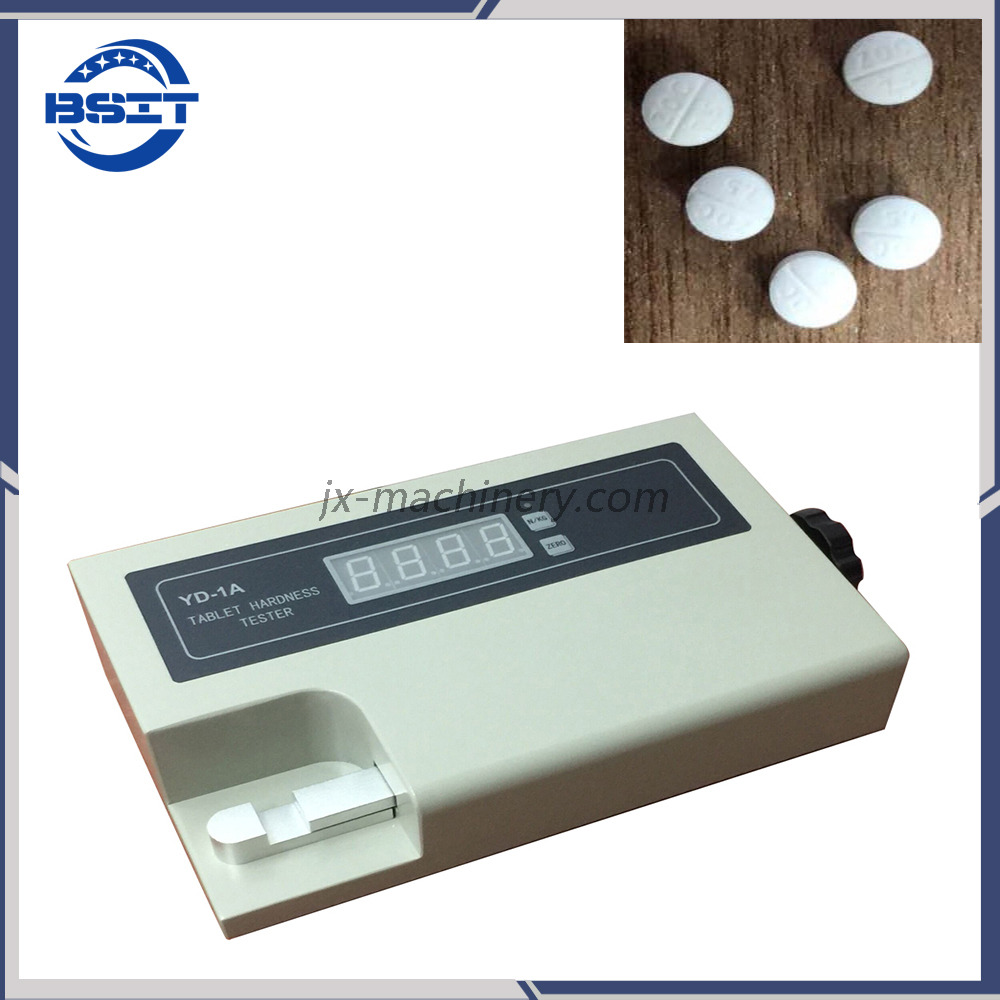

                                                                 YD-1A  Tablet Hardness Tester

Product Description

Tablet hardness tester are instrument for detecting breaking hardness of tablet

Applicable standard:

Corporate standard( tablet hardness tester) Q/12XQ0186-2010

Features:

The tablet is loaded and pressed artificially

It has high accuracy press sensor and hardness data is displayed on LED

It tests tablet hardness continuously

Test data is displayed and locked automatically . so can test be reset and cycled

Automation: auto-test, auto-diagnose, auto-alarm

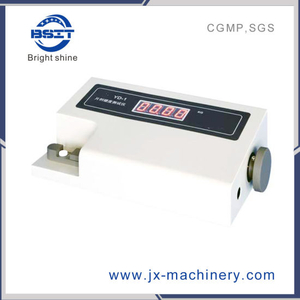

Tester photo:

27

Technical Parameter:


Hardness range

(2-199.9) N

Hardness accuracy

Max ( ±0.05%)

Diameter range for test preoduct

(3-20) mm

Working time continuously

More than 24hours

Power

220V/50HZ/10W

Dimension

320x200x100mm3


                                   YD-2 Tablet Hardness Tester

Product Description

Tablet hardness testers are the instruments for detecting breaking hardness of tablet.
Applicable standard
Corporate standard (tablet hardness tester) Q/12XQ0186-2010
Features
The tablet is loaded artificially and pressed automatically.
There is high accuracy press sensor, and hardness date is displayed on LED.
It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
Time of testing will be saved by directly measuring the diameter.
Test date is displayed and locked automatically, so can test be reset and cycled.
It can deal with send print out such date as hardness of each tablet the maximum value, the minimal value, the average value and the number of tablets .
The parameters can be preset at any time. Either preset or real date is displayed on the LED.
Automation: auto-test, auto-diagnose, auto-alarm.


Hardness Tester for Tablet (YD-2) with Printer

Technical Parameter:


Hardness range (2-199.9) N
Hardness accuracy Max ( ±0.05%)
Diameter range for test preoduct (3-40) mm
Max number in each group ≤100 tablets
Test time per tablet ≯20s/tablet
Working time continuously More than 24hours
Power 220V/50HZ/60W
Dimension 500x300x160mm3

                                YD-2 Tablet Hardness Tester

Product Description

Tablet hardness testers are instruments for detecting breaking hardness of tablet.

Applicable standards:

Corporate standard(Tablet hardness tester )Q/12XQ0186-2010

Features:

The tablet is loaded artificially and pressed automatically.

There is high accuracy press sensor and hardness data is displayed on LED.

It tests tablet hardness continuously. The biggest number is 100 pieces of a group.

Time of testing will be saved by directly measuring the diameter.

Test data is displayed and locked automatically, so can test be reset and cycled.

It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.

The parameters can be preset at any time. Either preset or real data is displayed on the LED.

Automation: auto-test, auto-diagnose, auto-alarm.

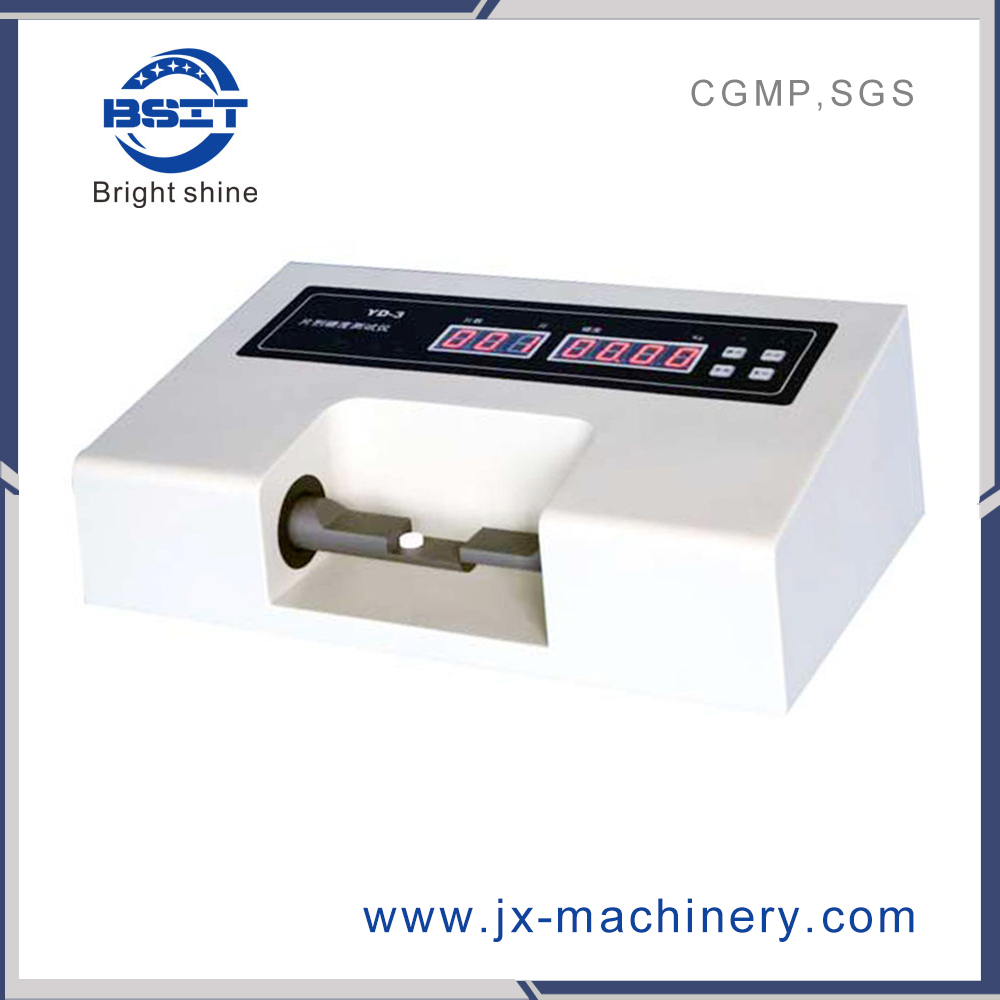

24


Technical Parameter :

Hardness range

(2-199.9) N

Hardness accuracy

Max ( ±0.05%)

Diameter range for test preoduct

(3-40) mm

Max number in each group

≤100 tablets

Test time per tablet

≯20s/tablet

Working time continuously

More than 24hours

Power

220V/50HZ/60W

Dimension

400x240x160mm3

Carton Package

Hardness Tester for Tablet (YD-2) with Printer
Wooden Case for more than 3 sets of testers
Hardness Tester for Tablet (YD-2) with Printer
