YD-2
BSIT
Shanghai, China
7 Sets/Week
L/C, T/T, Western Union, Paypal, Money Gram

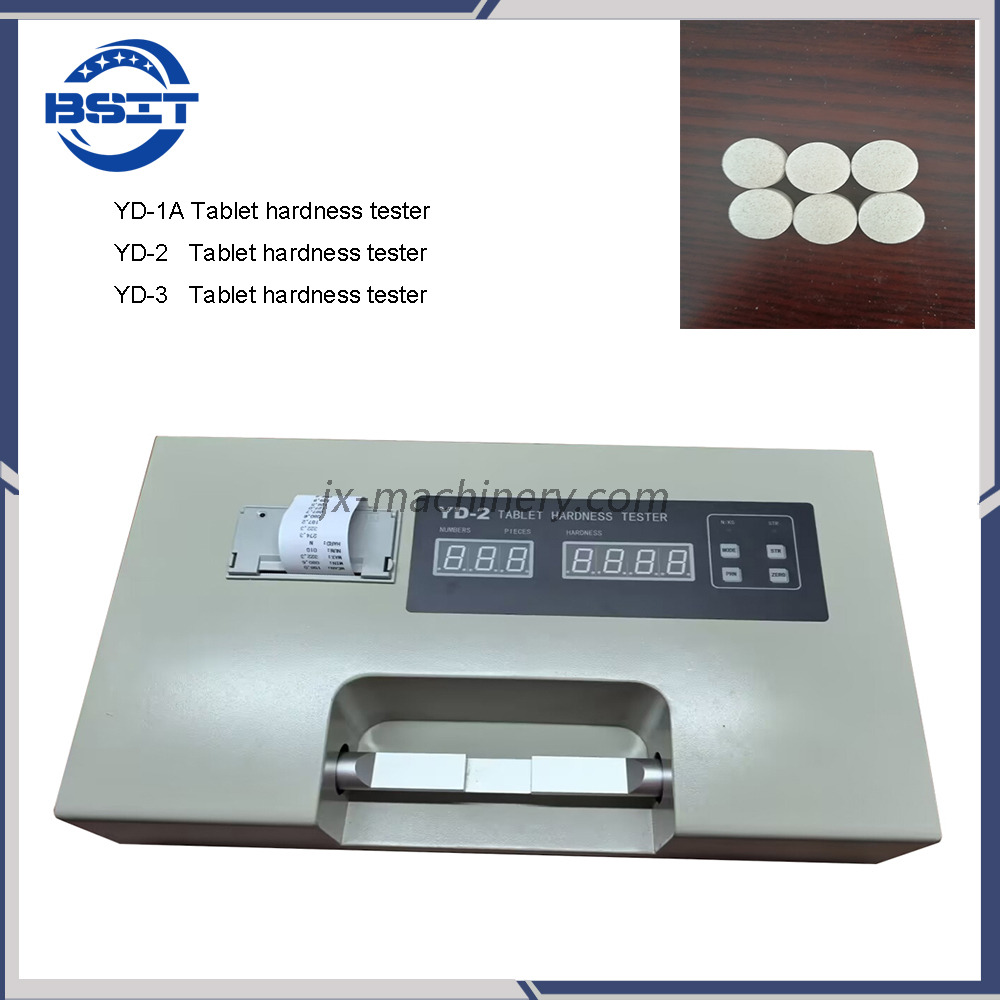

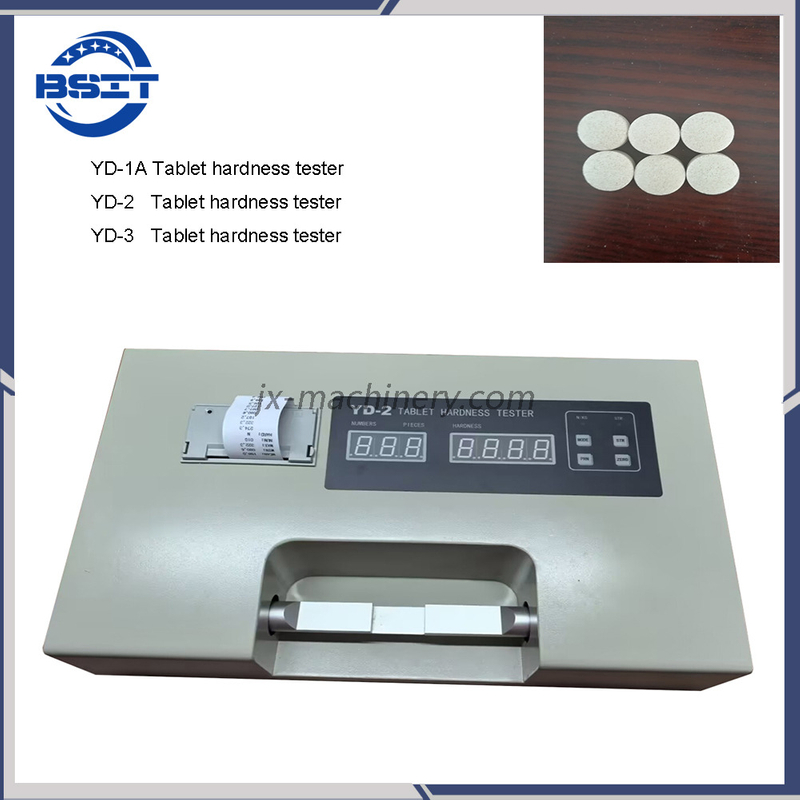

YD-2 TABELT HARDNESS TESTER
Tablet hardness testers are the instruments for detecting breaking hardness of tablet.
Applicable standard
Corporate standard (tablet hardness tester) Q/12XQ0186-2010
Features
The tablet is loaded artificially and pressed automatically.
There is high accuracy press sensor, and hardness date is displayed on LED.
It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
Time of testing will be saved by directly measuring the diameter.
Test date is displayed and locked automatically, so can test be reset and cycled.
It can deal with send print out such date as hardness of each tablet the maximum value, the minimal value, the average value and the number of tablets .
The parameters can be preset at any time. Either preset or real date is displayed on the LED.
Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameter:
Hardness range | (2-199.9) N |
Hardness accuracy | Max ( ±0.05%) |
Diameter range for test preoduct | (3-40) mm |
Max number in each group | ≤100 tablets |
Test time per tablet | ≯20s/tablet |
Working time continuously | More than 24hours |
Power | 220V/50HZ/60W |
Dimension | 500x300x160mm3 |
Carton Package
Wooden Case for more than 3 sets of testers
