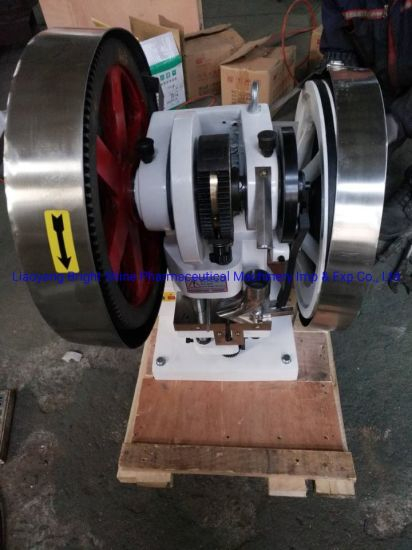

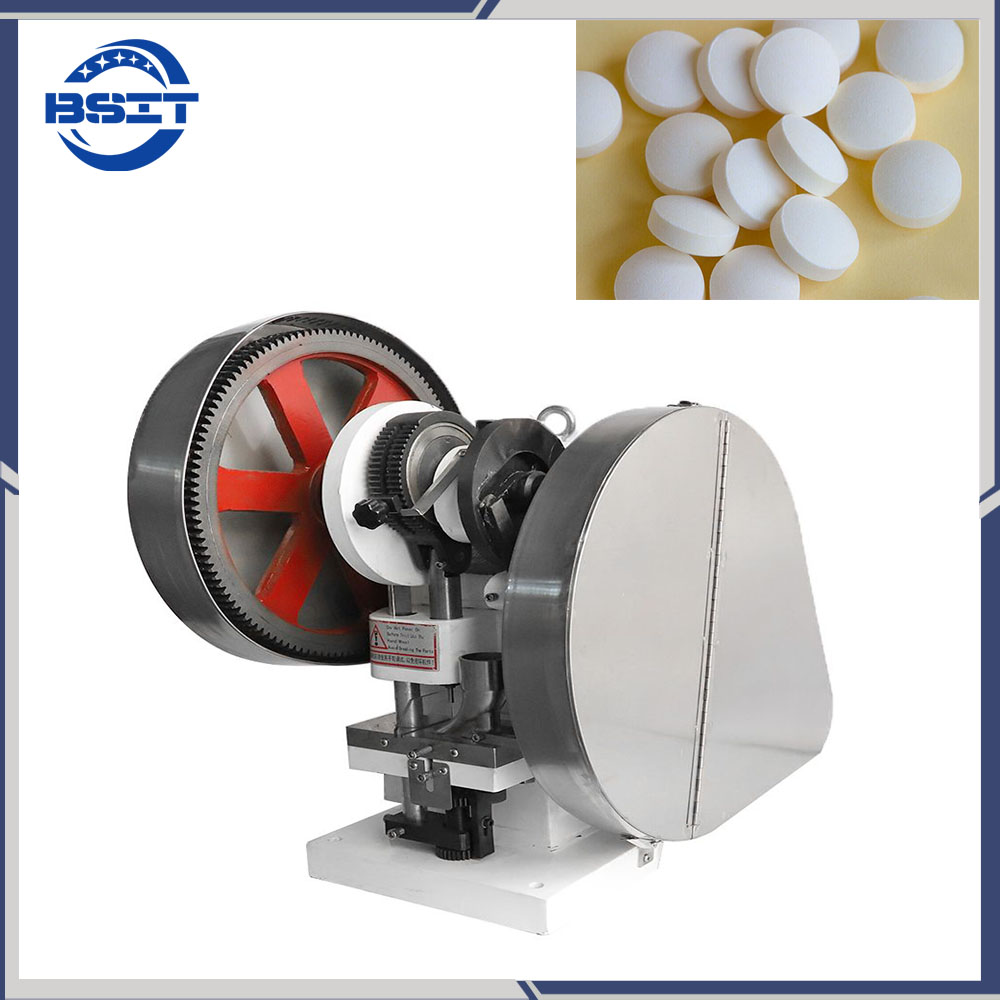

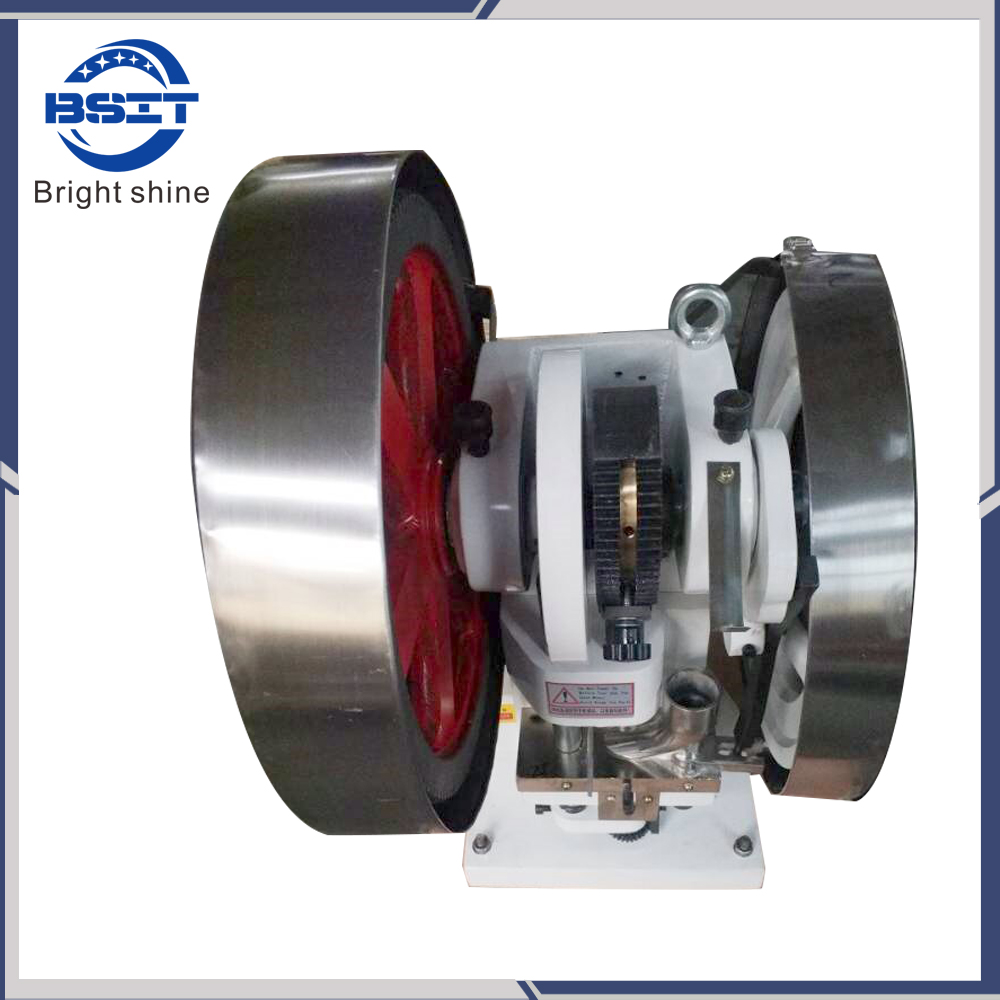

TDP1.5/TDP-5/TDP-6 Single-Punch Tablet Press
This single punch tablet press has three model : TDP-1.5, TDP-5, TDP-6 as optional , which can press the powder material into tablet and can be widely used in pharmaceutical factory, chemical factory, hospital, R&D institution, laboratory. It is suitable for small batch production.
Main advantage: This machine is with good performance, strong suitability, simple operation, easily repairs, small cubage and light. Even under the conditions or power cut, hand swing available. It is only with one set of die( mold), the depth of filling and the thickness of tablets is adjustable.it can make different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape changed difference mold on the machine.
Compare to original TDP model press machine, it is enlarged the machine intensive and engine power with bigger strength. In the meantime enlarge the filling depth, hence to expand the specification range of tablet. Therefore, this machine can meet the demand of different kinds of Chinese traditional medicine and Western medicine and other similar product's requirements. It's deeply welcome by our customers in different field.
It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjust
Technical data:
Model | TDP-1.5 | TDP-5 | TDP-6 |
Max. Pressure (kN) | 15 | 50 | 60 |
Max. dia. of tablet (mm) | 12 | 20 | 25 |
Max. Depth of fill (mm) | 12 | 16 | 16 |
Thickness of largest tablet (mm) | 6 | 6 | 6 |
Production capacity (pcs/h) | 5000 | 4500 | 5000 |
Motor (KW) | 0.55 | 0.75 | 1.1 |
Overall size(mm) | 700*370*800 | 700*400*800 | 700*500*900 |
Net weight | 90 | 125 | 140 |
