TDP
BSIT
8422
Shanghai, China
20 Sets/Month
T/T, Western Union, Paypal, Money Gram

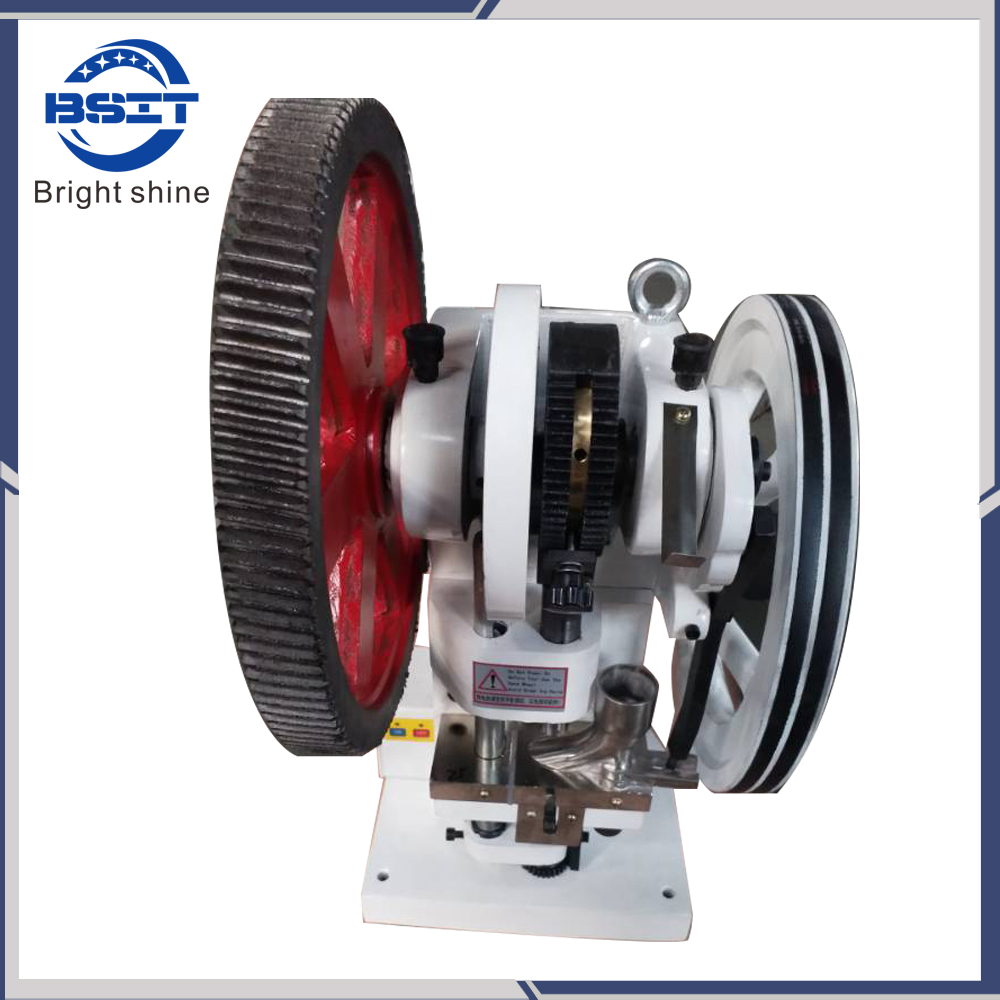

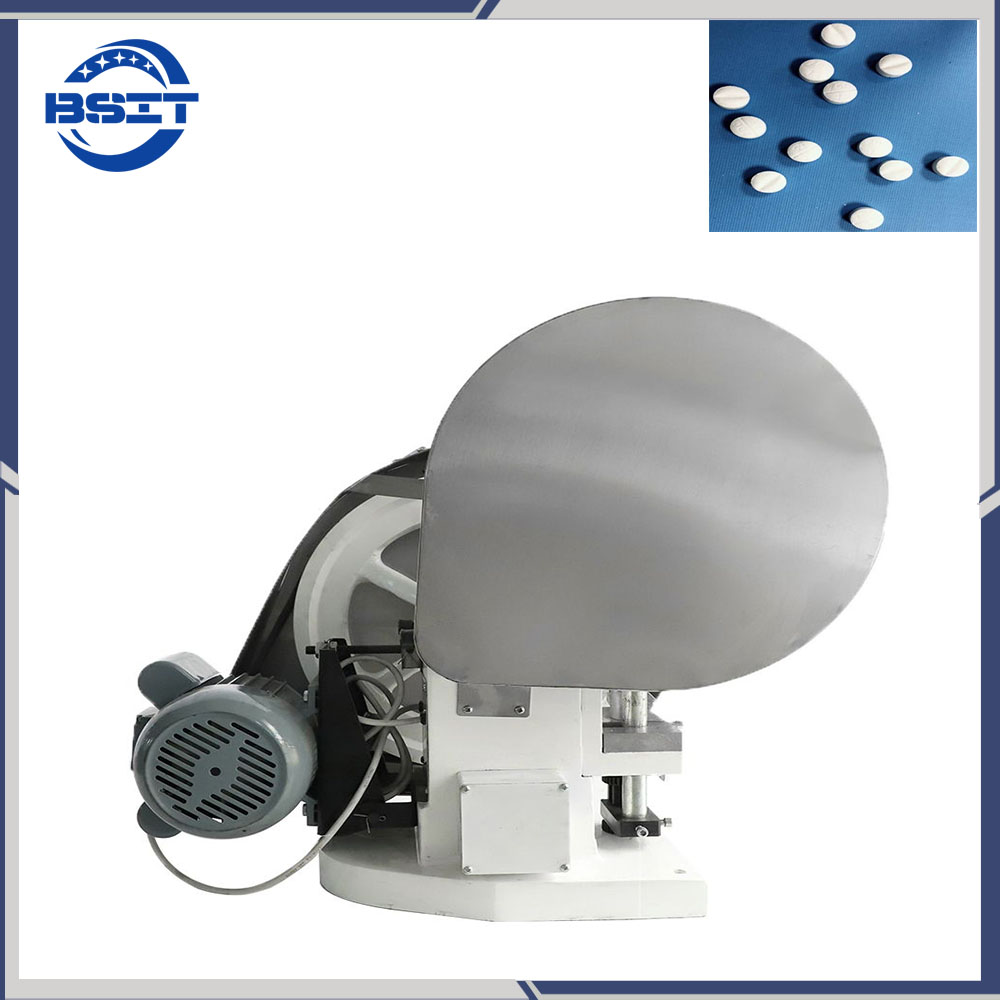

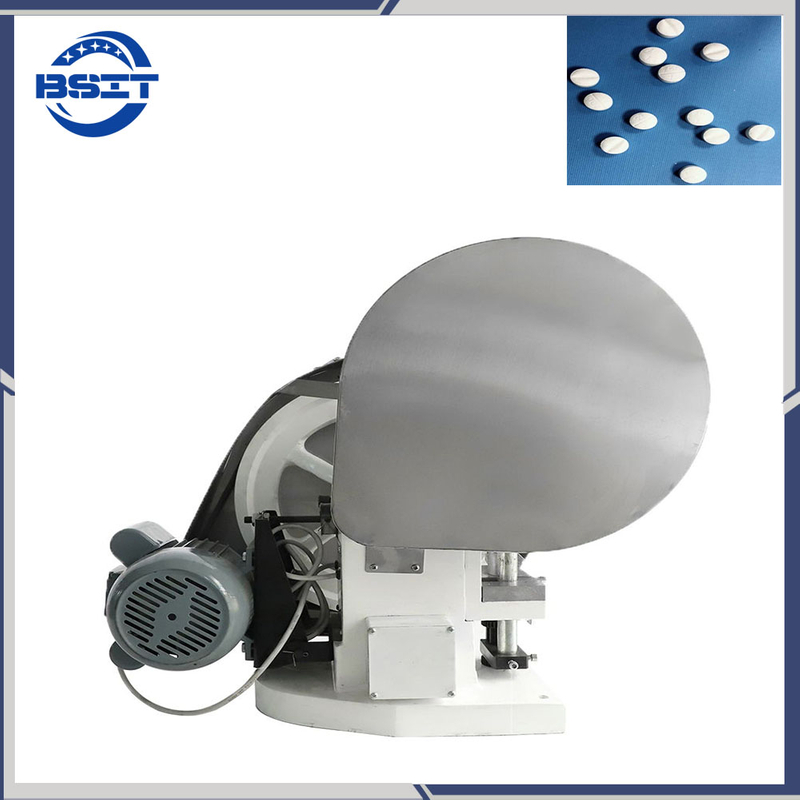

TDP single station hand operate wholesale pharmaceutical powder tableting machine
Introduce:
This TDP-5 Single Desktop Tablet Press is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
Technical data:
Model | TDP-1.5 | TDP-5 | TDP-6 |
Max. Pressure (kN) | 15 | 50 | 60 |
Max. dia. of tablet (mm) | 12 | 20 | 25 |
Max. Depth of fill (mm) | 12 | 16 | 16 |
Thickness of largest tablet (mm) | 6 | 6 | 6 |
Production capacity (pcs/h) | 5000 | 4500 | 3000 |
Motor (KW) | 0.55 | 0.75 | 1.1 |
Overall size(mm) | 700*370*800 | 700*400*800 | 700*500*900 |
Net weight | 90 | 125 | 140 |
Sample for all kinds tablet
Export Standard Wooden Case Package:
TDP single station hand operate wholesale pharmaceutical powder tableting machine
Introduce:
This TDP-5 Single Desktop Tablet Press is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
Technical data:
Model | TDP-1.5 | TDP-5 | TDP-6 |
Max. Pressure (kN) | 15 | 50 | 60 |
Max. dia. of tablet (mm) | 12 | 20 | 25 |
Max. Depth of fill (mm) | 12 | 16 | 16 |
Thickness of largest tablet (mm) | 6 | 6 | 6 |
Production capacity (pcs/h) | 5000 | 4500 | 3000 |
Motor (KW) | 0.55 | 0.75 | 1.1 |
Overall size(mm) | 700*370*800 | 700*400*800 | 700*500*900 |
Net weight | 90 | 125 | 140 |
Sample for all kinds tablet Export Standard Wooden Case Package:
