Tablet Disintegration Tester for Bj-3

  • Shanghai, China
  • 7 Sets/Week
  • L/C, T/T, Western Union, Paypal, Money Gram
  • BJ-3
  • Dynamic Load
  • Digital
  • Computer Control
  • 0-100Kg
  • AC110V
  • Under
  • Bj-3
  • 30-32/Min
  • 1-900/Min
  • +-0.5 Degree
  • BSIT-GM
  • Export Standard Wooden Case
  • Meet GMP Standard
  • Made in China
  • 9027809000
  • <500mm
  • <900kg
  • Tablet Disintegration Tester
  • <1000KN
  • 1
  • Electronic Load

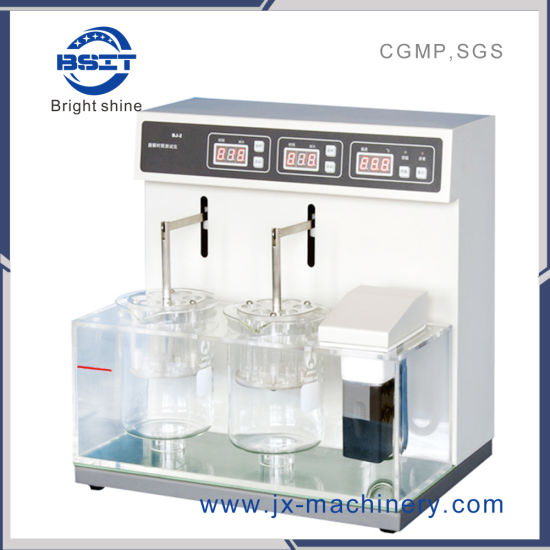

BJ-3 DISINTEGRATION TESTER


Product Description:


BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.

Applicable standards:
National standard( Chinese codex ) /2015
Corporate standard(disintegration tester )Q/12XQ0188-2010

Features:
There are eighteen tubes in three basket assembly.
Each test station is driven independently. Auto stop at timing point.
The bath liquid can achieve an even temperature.
A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
Timing at will. The preset and real time data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.


Tablet Disintegration Tester for Bj-3



Technical Parameter
Basket assembly 3pc
Glass tube of basket 18pcs
Flat bottom beaker volume 1000ml
Basket back and forth frequency (30~32) /min
Basket back and forth range (55±1)mm
Min. distance between sieves (22)mm
Timing range 1-900 minute
Timing accuracy ±0.5min
Temperature preset range 20-45ºC
Accuracy of temperature control ±0.5ºC
Heating power 500W
Working time continuously More than 24hours
Power 220V/50Hz 600W
Dimension 540×30420mm3

Carton package
Tablet Disintegration Tester for Bj-3
Wooden Case for more than 3 sets of testers
Tablet Disintegration Tester for Bj-3

Tablet Disintegration Tester for Bj-3
Tablet Disintegration Tester for Bj-3
Tablet Disintegration Tester for Bj-3
