BJ-1
BSIT
Shanghai, China
7 Sets/Week
L/C, T/T, Western Union

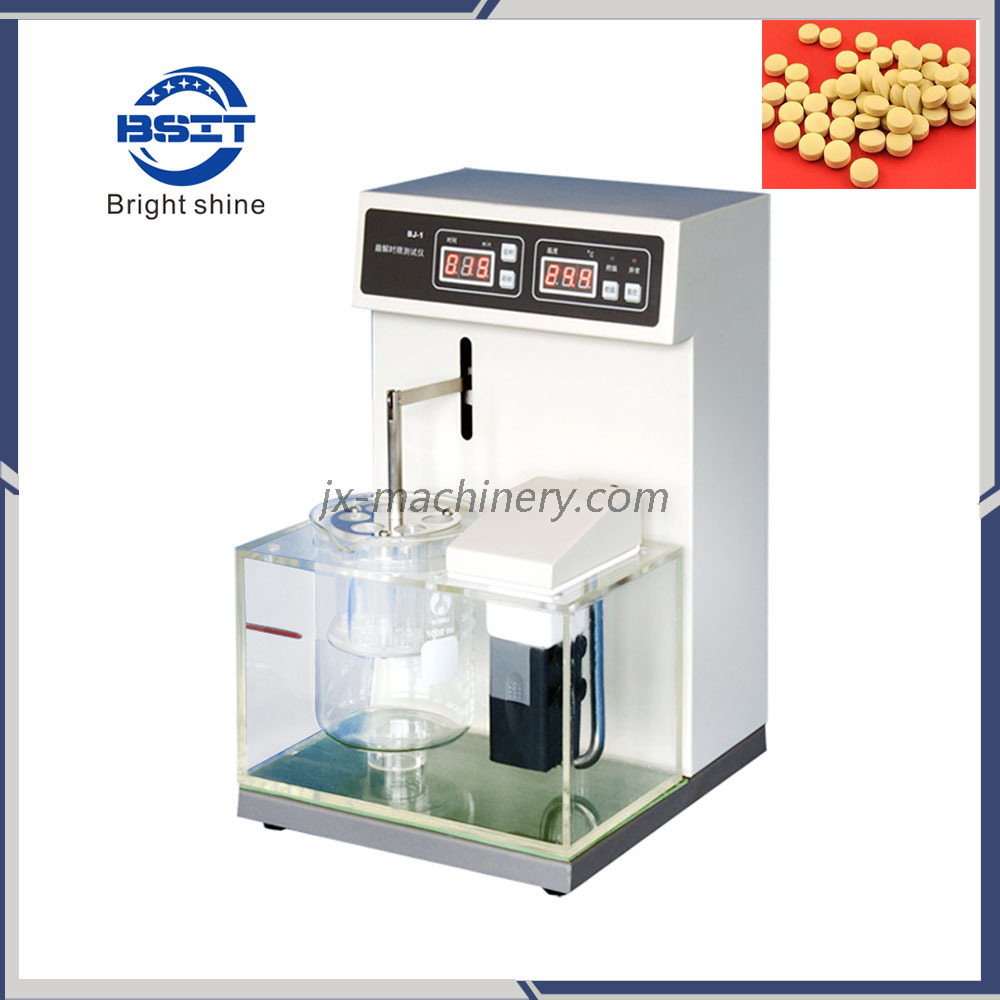

BJ-1 DISINTEGRATION TESTER
Product Description
BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.
Applicable standards:
National standard( Chinese codex ) /2015
Corporate standard(disintegration tester )Q/12XQ0188-2010
Features:
There are six tubes in one basket assembly.
Auto stop at timing point.
The bath liquid can achieve an even temperature.
A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
Timing at will. The preset and real time data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameter:
Basket assembly | 1pc |
Glass tube of basket | 6 pcs |
Flat bottom beaker volume | 1000ml |
Basket back and forth frequency | (30~32) /min |
Basket back and forth range | (55±1)mm |
Min. distance between sieves | (25±2)mm |
Timing range | 1-900 minute |
Timing accuracy | ±0.5min |
Temperature preset range | 20-45ºC |
Accuracy of temperature control | ±0.5ºC |
Heating power | 500W |
Working time continuously | More than 24hours |
Power | 220V/50Hz 600W |
Dimension | 260×000×420mm3 |
Carton Package
Wooden Case for more than 3sets of testers
