Shanghai, China
50 Sets/Year
T/T, Western Union, Paypal, Money Gram
BZS-515
Single
Circular Vibrating Screen
Rubber Spring
1 Year
Customized
New
Vibrating/Vibration/Vibrate Screen/Sieve/Sift
Screen Machine
60-1300kg
SUS304
12-200
0.75
1370
710X710X1290mm
Pharmaceutical, Food,Chemcial
180kg
BSIT
Export Standard Wooden Case
Meet GMP standard
Made in China
8438800000
Linear
High Frequency Vibrating Screen
Vibrating Screen
Pharmaceutical or Food or Chemical Raw Materical
Rotary Vane Shaker
Chemicals
Main application:

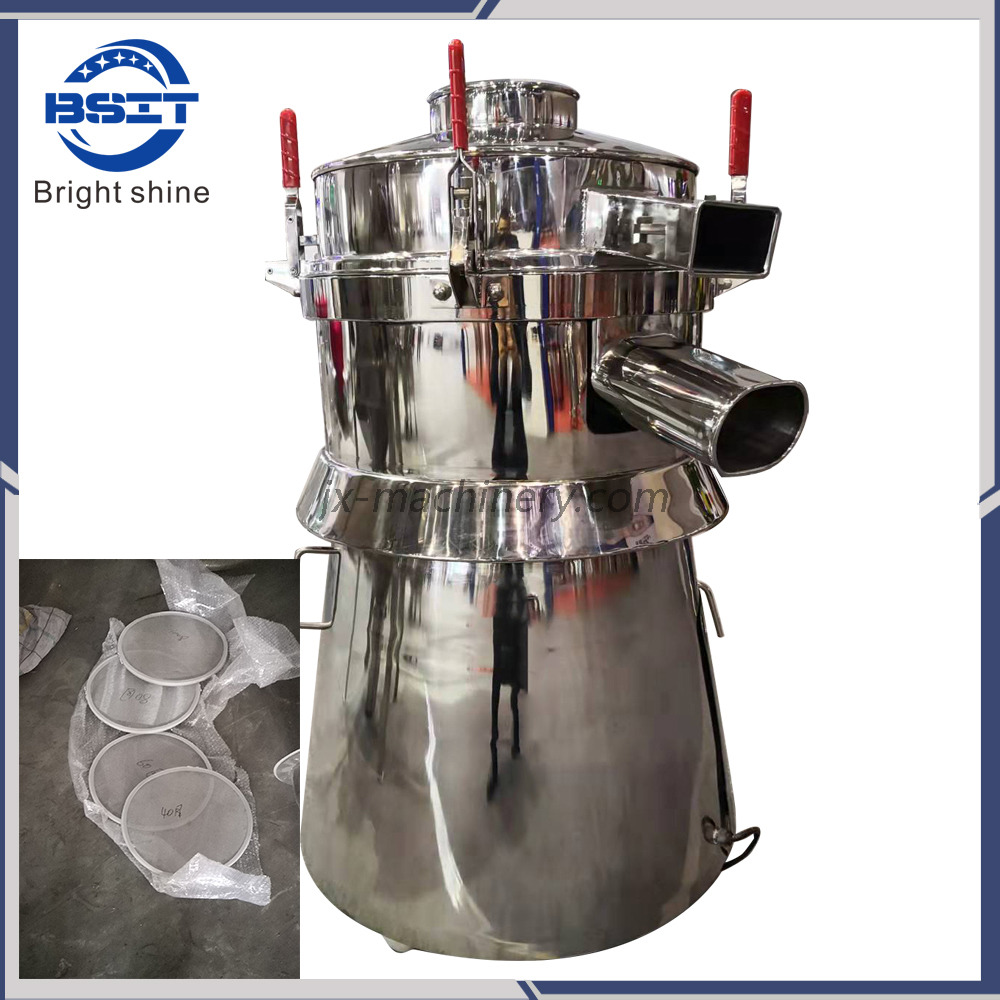

BZS-350/515/650 Model series The machine is suitable for flow operation, and is the ideal equipment for sifting out the granules in different size and proportion and for continuous material delivering.
Structure& Performance :
This machine is consisted of the hopper, vibration chamber, cluth, motor ect. The vibrating chamber is equipped by eccentric wheel, rubber soft pieces, Man shift, bearing etc. When the adjustable eccentric weight passed its gravity to the central line of main shift by the driving of motor to break the balance, then under the centrifugal force, the orbit spire of target materials is forced to change its way in the chamber, the size of swing of the weight regulator can be adjusted according to different kinds of target material or the number of mesh. The whole machine has the specialties of compact structure, small volume, non-dust flying, low noise, and high output, low energy consumption, easy to be moved and maintained.
Technical parameter:
Model | BZS-350 | BZS-515 | BZS-650 |
Capacity(kg/h) | 60-500 | 60-1300 | 180-2000 |
Number of mesh(mesh) | 12-200 | 12-200 | 12-200 |
Power (kw) | 0.55 | 0.75 | 1.5 |
Speed of principal axis(rpm) | 1380 | 1370 | 1370 |
Overall dimension(LxWxH)(mm) | 540X540X1060mm | 710X710X1290mm | 880x880x1350 |
Weight (Kg) | 100kg | 180kg | 250 |
Main application:
BZS-350/515/650 Model series The machine is suitable for flow operation, and is the ideal equipment for sifting out the granules in different size and proportion and for continuous material delivering.
Structure& Performance :
This machine is consisted of the hopper, vibration chamber, cluth, motor ect. The vibrating chamber is equipped by eccentric wheel, rubber soft pieces, Man shift, bearing etc. When the adjustable eccentric weight passed its gravity to the central line of main shift by the driving of motor to break the balance, then under the centrifugal force, the orbit spire of target materials is forced to change its way in the chamber, the size of swing of the weight regulator can be adjusted according to different kinds of target material or the number of mesh. The whole machine has the specialties of compact structure, small volume, non-dust flying, low noise, and high output, low energy consumption, easy to be moved and maintained.
Technical parameter:
Model | BZS-350 | BZS-515 | BZS-650 |
Capacity(kg/h) | 60-500 | 60-1300 | 180-2000 |
Number of mesh(mesh) | 12-200 | 12-200 | 12-200 |
Power (kw) | 0.55 | 0.75 | 1.5 |
Speed of principal axis(rpm) | 1380 | 1370 | 1370 |
Overall dimension(LxWxH)(mm) | 540X540X1060mm | 710X710X1290mm | 880x880x1350 |
Weight (Kg) | 100kg | 180kg | 250 |
