Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400

  • Shanghai, China
  • 20 Sets/Month
  • T/T, Western Union, Paypal, Money Gram
  • BYC400
  • Customized
  • New
  • 1 Year
  • 2-5kg/Time
  • SUS304 Stainless Steel
  • Tablet, Pill, Candy, Chocolate
  • 15-45 Degree
  • 0.55kw
  • 40W
  • 46 R/Min
  • 4kw
  • 65kg
  • 700X660X970mm
  • BSIT
  • Export Standard Wooden Case
  • Meet with GMP standards
  • Made in China
  • 8422400000
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400


Introduction:

1.This machine is used to carry out sugarcoating and film coating to the core of Chinese traditional and Western medicine tablets.
2.It integrates strong power, weak power, hydraulic and pneumatic. It is new type equipment improved on the basic of original common type sugarcoating machine.
3. it is SUS304 contact with product. meet with GMP
4.Guarantee 1 year
5.Full compliance with GMP requirements.
6.Supply free FAT testing
7.
Supply SAT testing according to customer request.


BY400 Tablet Pill Candy Film Coating Machine ( Sugar Coating machine with inner and external heating device)
Capacity: 2-5kg/time .

Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400

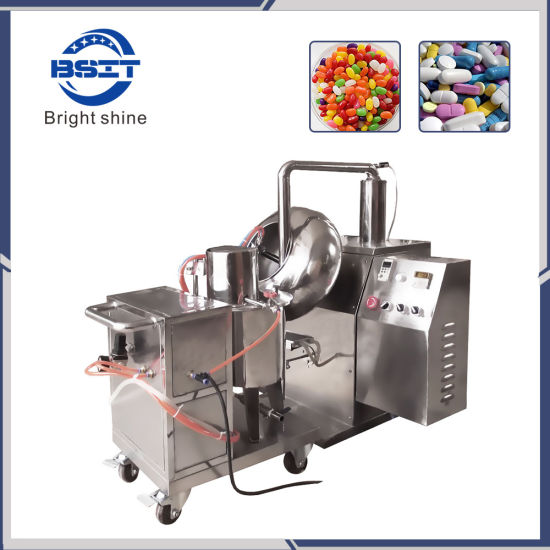

BYC400 Tablet Pill Candy Film Coating Machine
(
with inner and external heating device
storage tank
Temperature control
Sprayer
With inverter

Speed adjustable

Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400
BYCA400 Tablet Pill Candy Film Coating Machine
peristaltic pump,
storage tank( included Liquid Supply Vehicle with stirrer, heating keep temperature )
inside and external heating device,
Temperature control
With Sprayer
With inverter Speed adjustable


Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400

Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400
Main introduction:

It is composed of the mainframe (original sugarcoating machine), controllable normal temperature hot air system, automatic fluid supply and air supply spraying system, etc. The speed can be controlled, the coating accessories using high atomization spray to tablets surface by the method of automatic electrical control. Meanwhile, the tablets make continuous and complex track movement in the coating pan; Let the coating fluid cover the tablet core evenly. The controllable normal-temperature hot air in the pan will dry the tablets at the same time; Let the tablets rapidly form a firm, fine, complete and smooth surface film.
Automatic liquid supply vehicle is used for heating the coating solution that requires higher temperature, and the temperature is adjustable. Barrel lined with rockwool insulation, even the heating temperature arrives 80-90º C, the out wall of barrel still keep normal temperature. The liquid supply vehicle is equipped with peristaltic pump and three-way magnetic valve, which can make the two spray gun work at the same time. It is also equipped with pneumatic stirring motor that can continually stir coating solution, and the speed of stirring is adjustable. There is also wheel installed in the bottom of vehicle so that users can remove it.

This machine has advantages of simplified operation, smooth, fine and bright tablet surface, saving accessories and convenient maintenance. It is the ideal equipment for tablet film coating.

Sample:
Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400

Technical Parameter:

Model BYC-400 BYC-800 BYC-1000 BYC-1250
Production Capacity 2-5kg/time 30~50 50~70kg/time 80~150
Inclination of Pan 15°-45° 15°-45° 15°-45° 15°-45°
Motor Power 0.55kw 1.1 1.5kw 2.2
Power of Blower Fan 40w 200w 200w 370w
Rotary Speed 46r/min 0-32r/min 0-32r/min 0-28r/min
Electric Thermal Power 4KW 3KW 4KW 6KW
Weight 65KG 280KG 300KG 500KG
Outline size 700×660×970mm 1000×1000×1550mm 1300×1000×1680mm 1350×1350×1600mm


Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400
Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400
Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400


Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400
Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400
Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400
Pharmaceutical Machine SUS304 Tablet Pill Candy Film Coating Machine Byc400
