PLC Control 10ml Glass Vial Cap Sealing Machine

  • Shanghai, China

  • 60-120/Min

  • L/C, T/T, Western Union, Paypal, Money Gram

  • BKGL

  • Customized

  • New

  • 1 Year

  • 60-120PCS/Min

  • 1ml,2ml,5ml,10ml

  • SS316 Stainless Steel

  • Vial Capping Machine

  • Alum. Cap, Plastic-Alum. Cap

  • Min. 20mm Max.80mm

  • Diameter: 20~50mm

  • 1 Head,2 Heads

  • 1.5kw

  • 650kg

  • BSIT

  • Export Wooden Case

  • meet with GMP standards

  • Made in China

  • 8422303090

  • Pharmaceutical Packaging Machinery

  • Liquid

  • High Precision

  • CE, GMP, ISO

  • 220V

  • Computerized

PLC control 10ml glass vial cap sealing machine with 1 set mould

BottleGeneral Features:

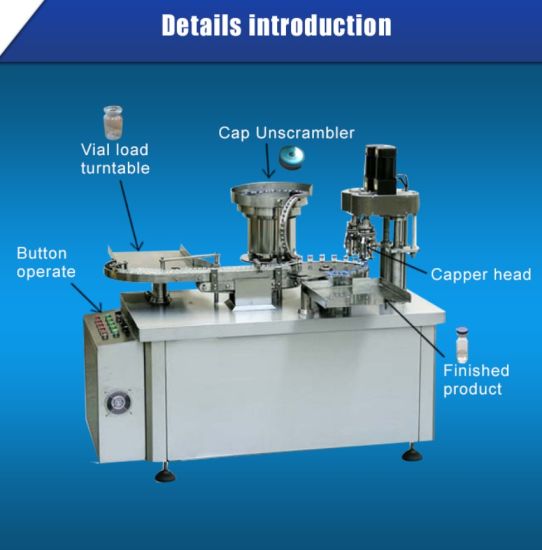

BKGL Automatic chuck capping machine for the application of plastic/glass bottles capping. The machine is composed by a load turntable, conveyor, bottle index wheel, cap unscrambler, cap chute &placer, cap crimpling system. The bottle loading/unloading through conveyor manually, or automaticdirectly from a production line. It is designed and made accordance to GMP regulation.
PLC Control 10ml Glass Vial Cap Sealing Machine

PLC Control 10ml Glass Vial Cap Sealing Machine

Technical Features:
Kind of bottle Various kinds of plastic/glass bottle
Kind of cap alternative Alum. cap, plastic-alum. cap
Bottle size* Min. Ø20mm Max. Ø80mm
Cap size* Ø20~50mm
Capping head Model 120: 2 heads Model 60: 1head
Speed Model 120: 60~80bpm
Model 60: 40~50bpm
Power* 220V 50/60Hz 1.5kw
Compress air require 5L/min, 4~6bar
Machine size mm Length 1500, width 1000, height 1600
Machine weight: 650kgs
* Other sizes on request

Function and Technical Standard:
Index wheel
  1. Material: Nylon
  2. Index wheel changeable to fit to different bottle diameter
  3. Changeable without tool
  4. Index wheel is driven by high precision indexing cam box, ensure indexing bottle under right position of working station
  5. Index wheel overload protection installed
Cap unscrambler
  1. Type: vibrator
  2. Cap size on request
  3. Adjustable height to suit to different bottle height
Alum. Cap Crimpling
  1. 3- crimpling knives capping head
  2. Adjustable knives to fit to different kinds of cap size
  3. Crimpling edge is smooth and good seal
PLC controller
  1. PLC control + Schneider button panel
  2. No bottle no cap
  3. Machine stop-await when cap empty load
  4. Auto stop machine when index wheel overload/block
  5. Machine speed adjustable controlled by frequency inverter
Machine frame
  1. Frame in carbon steel with antirust coat profile
  2. SS304 sheet covering
Optional parts:
  1. Acrylic Safeguard hood(option)
  2. Interlock door open auto stop machine(option)
  3. Cap elevator(option)
  1. Manual book: 1copy
  2. Qualification certificate: 1original
  3. Tool kit: 1unit
  4. Spare and wearing parts:
+ knives of capper: 1set

PLC Control 10ml Glass Vial Cap Sealing Machine
PLC Control 10ml Glass Vial Cap Sealing Machine
PLC Control 10ml Glass Vial Cap Sealing Machine
PLC Control 10ml Glass Vial Cap Sealing Machine
