Oral Liquid Solution Syrup Filling and Capping Sealing Machine

  • Shanghai, China
  • 30 Sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • BYG
  • Atmospheric Pressure
  • Pneumatic Lifting
  • Linear
  • Bottle
  • Spray Bottle
  • 30-50 PCS/Min
  • Syrup Oral Liquid Filling Machine
  • SS316 Stainless Steel
  • Plastic/Glass Bottle
  • Min. 20mm , Max:80mm
  • 15~60ml, 30~125ml, 50~250ml
  • +-1%
  • 30L/Min, 4~6bar
  • 2500X1000X1800mm
  • 800kg
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP standard
  • Made in China
  • 8422303090
  • Volumetric Filling Machine
  • Automatic
  • Liquid
  • Multi-Head
  • Single-Room Feeding
  • Plunger

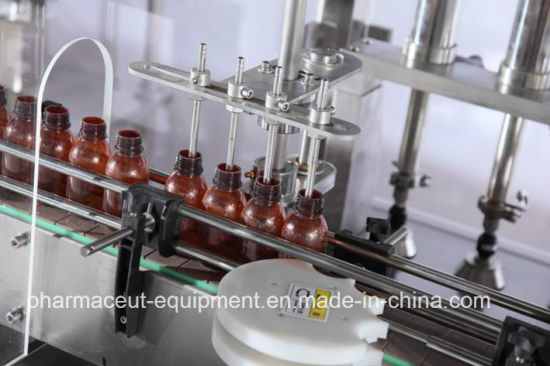

BYG50/1000-6 Automatic Volumetric filling machine for the application of light liquid filling into plastic or glass bottles. The machine is composed by a conveyor, SS316L volumetric piston pump (max. 12 heads), top-bottom filling nozzles, liquid buffer tank and bottle indexing system. The bottle loading/unloading through loading/unloading turntable (alternative Ø 620mm or Ø 900mm), or directly from an production line
Oral Liquid Solution Syrup Filling and Capping Sealing Machine


Technical Features:

Kind of bottleVarious kinds of plastic/glass bottle
Bottle size*Min. Ø 20mm Max. Ø 80mm
Filing nozzles6 heads
Speed 40~60bpm
Alternative Filling volume*15~60ml, 30~125ml, 50~250ml, 200~500ml
Filling accuracy± 1%
Power* 220V 50/60Hz 1.2kw
Compress air require30L/min, 4~6bar
Machine size mmLength 2500, width 1000, height 1800
Machine weight: 800kgs
* Other sizes on request

No. Item Model Origin Qty.
1 C-driver motor NCV18 200W TaiwanYK 1pc
2 SMPS 24V*15A TaiwanMW 1pc
3 relay Lc1-D0910 M/B7n French Schneider 5pcs
4 Button Z/X B2 French Schneider 5pcs
5 Air switch OSMC32NC6 French Schneider 5pcs
6 Photo sensor PZ-G62N JapanKeyence 4pcs
7 PLC DVP-32ES Taiwan Delta 1pc
8 Inverter VFD-M Taiwan Delta 1pc
9 Touch Screen DVP Taiwan Delta 1pc
10 Main Motor YVF2-802-4 China Wan'nan 1unit
11 Motor reducer I=1:30 HZ Reducer 1unit
12 pneumatic elements TaiwanAIRTAC 10pcs

Oral Liquid Solution Syrup Filling and Capping Sealing Machine
Oral Liquid Solution Syrup Filling and Capping Sealing Machine
Oral Liquid Solution Syrup Filling and Capping Sealing Machine
Oral Liquid Solution Syrup Filling and Capping Sealing Machine
Oral Liquid Solution Syrup Filling and Capping Sealing Machine
