LM-200
BSIT
Shanghai, China
20 Sets/Month
T/T, Western Union, Paypal, Money Gram

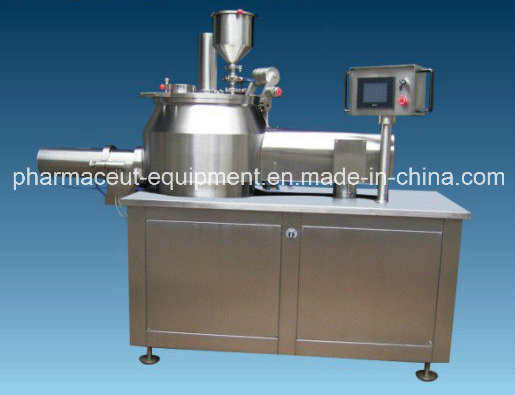

Pharmaceutical Machine Wet Mixer Granulator Machine for Lm200
this is working video linage: https://youtu.be/ooUfZY-pcfc
Main use and principle:
It fits for the mixing and grain producing, it is widely used in the industry of medicine, food, chemistry and light industry.
The two processes, mixing and graining producing are completed in the same container, the powder in the fixed taper container changes to half-flowing state by milling of the blending oar and achieves complete mixing. With the immiting of the bond, powder becomes wetting. By the extrusion, attrition and pinch of the blending oar and canister cliff, powder changes to loose soft material. The soft material gradually forms small and well-proportioned humid grain by the grain producing oar.
1. Current display: Measuring power consumption and monitoring the granulating process.
2. Cooling of interlayer jacket of material groove: Improving quality of granule.
3. Frequency inverter adjustable speed of stirring paddle: The granule diameter can be controlled easily.
4. Frequency inverter adjustable speed of cutter: The granule diameter can be controlled easily.
5. Conical material groove: Materials can be mixed uniformly.
6. Pneumatic automatic discharge: Sealed and reliable.
7. Pneumatic pot cover lifting: Easy operation
8. The rotational speed can be controlled manually: You can try to find out the technological parameters for experiment
9. Input the set value through the touch-type keyboard to conduct program control: The quality of every batch is stable and uniform.
10. Gas filled sealing of rotating shaft: Preventing the rotating shaft from being bonded by dust.
11. Water-spraying cleaning of rotating shaft: Easy cleaning and short cleaning time
12. The parts that touch material are mare made of (polished) stainless steel: Meeting the specifications of GMP.
13. Appropriate height of discharge outlet: It can be used together with the drying equipment.
14. Can be equipped with PLC and human machine interface.
Technical Parameters (The right of alteration is reserved):
| Model/specifications | Din | LM10 | LM50 | LM100 | LM200 | LM300 | |
| Material Groove | Total Volume | dm3 | 10 | 50 | 100 | 200 | 300 |
| Service Capacity | dm3 | 2-7 | 12-35 | 25-70 | 80-100 | 120-150 | |
| Max inside Diameter | mm | 294 | 500 | 640 | 788 | 988 | |
| Driving System | Rotational Speed of Stirring Paddle | r, p, m | 100-1000 | 20-500 | 8-250 | 30-250 | 30-200 |
| Power of Motor | KW | 2.2 | 5.5 | 7.5 | 15 | 20 | |
| Rational Speed of Cutter | r, p, m | 50-3000 | |||||
| Power of Motor | kw | 0.75 | 1.5 | 3 | 4 | 7.5 | |
| Weight Dimensions | Length (L) | mm | 1500 | 2000 | 2400 | 2200 | 2400 |
| Total Height (H) | mm | 1300 | 1500 | 1560 | 2000 | 2300 | |
| Height of Discharge Outlet (h) | mm | 700 | 700 | 730 | 930 | 930 | |
| Width (B) | mm | 600 | 760 | 900 | 1700 | 1800 | |
| Weight of Machine | kg | 260 | 400 | 700 | 1100 | 1300 | |
