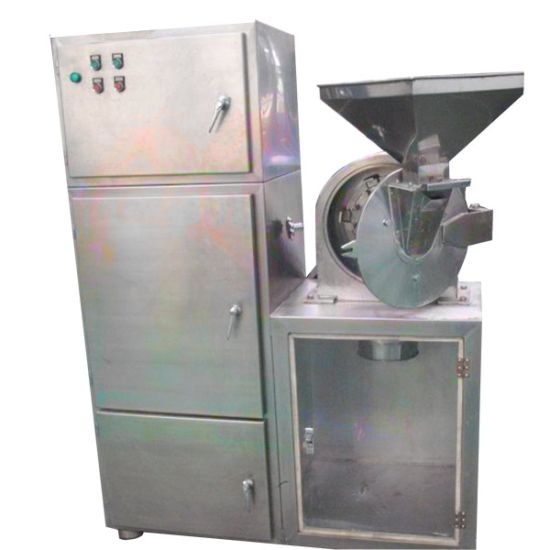

Hot Sale Export Russia Universal Grinder with Dust Collector (Model 30B)
- This machine is suitable for the material crushing by the industries of pharmaceutics, chemical and foodstuff etc. cosmetics, pesticides,dyes, resins, shell materials and other materials
2. Grinding machine/pulverizer/crusher machine/mining machine/milling machine/crushing machine/mining equipment.
3. Meet with GMP standards
4. supply FAT and SAT testing Drawing:
This machine is suitable for the material crushing by the industries of pharmaceutics, chemical and foodstuff etc. It is made of crusher, collection box and suck dust box
This machine uses the relative movement between the active fluted disc and the fixed fluted to impact, grind and crush the target materials. The size of granules can be achieved by changing of the screen Features:
1) Contact material as SS304
2) Output 50-300 kg per hour
3)the face plate is glass and thickness is 10mm
4)two lock and top and below at door
5) Silicon sealing
6) Collect material with container
7) Output 50-300 kg.
8) Sieve, 120 mesh 2 pcs.
9) Gearing behind the machine should be full closed.
10)Discharge sleeve ( to connect bin for product with discharge hole)
11)Energy stop button Technical parameters:
|Mode ||Main shaft speed ||Crushing fineness ||Crush capacity ||Infeed max size ||Motor ||Size |
|SF130 ||7000r/min ||10~120 mesh ||2-5kg/h ||5×5×5 ||1.1kw ||520×360×820 |
|SF180 ||4000r/min ||10~120 mesh ||10~20kg/h ||8×8×8 ||2.2kw ||420×600×1000 |
|SF250 ||4000r/min ||10~120 mesh ||50~250kg/h ||10×10×10 ||5.5kw ||860×500×1360 |
|SF320 ||4000r/min ||10~120 mesh ||80~300kg/h ||10×10×10 ||7.5kw ||880×520×1450 |
| SF40 ||3400r/min ||10~120 mesh ||160~800kg/h ||10×10×10 ||7.5kw ||900×550×1450 |
