DPP80
BSIT
8422303090
Shanghai, China
30 Sets/Year
T/T, Western Union, Paypal, Money Gram

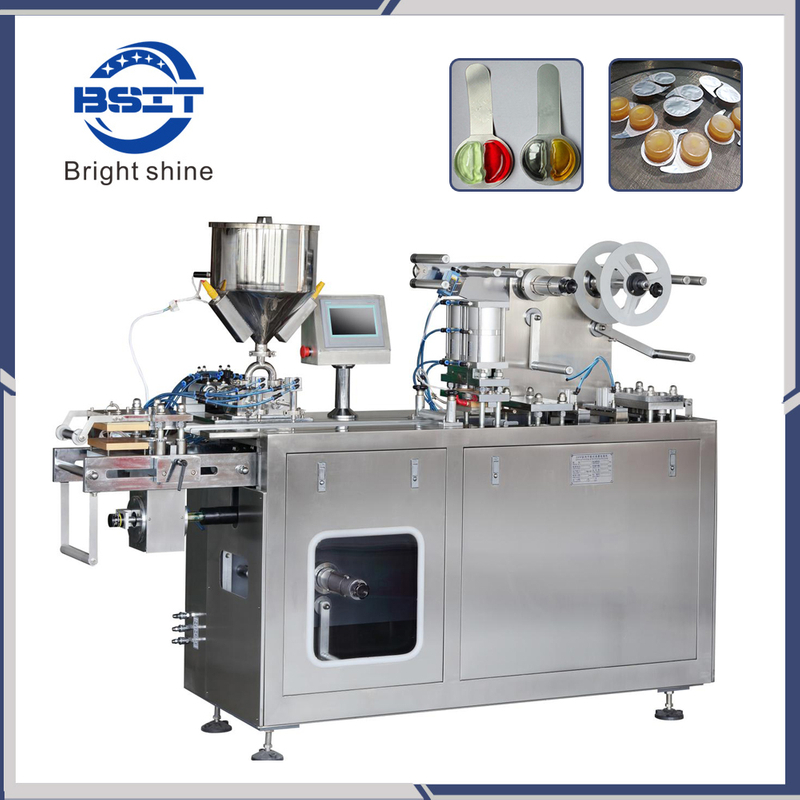

Dpp80 honey/Jam/cholocate oil Liquid Blister Packaging Machine with CE
Why choose our mini liquid blister packing machine advantage?
1.All of working stations are adopted four columns for position. It is with stability performance and easy operation.
It can add pressing station. It can be with total of four working stations of forming, sealing, pressing and cutting.
2.It is widely suitable for all requirements of packaging.
3. It can add Waste edge device, The waste is in good consistent and clean after cut. It's easy to clean.
4. Box body can be adjusted through swing type gear with level. It's easy to adjust and check.
5. The hot sealing station adopts underneath type air cylinder. The pressure is average and clean appearance.
6. PVC film roller is built-in,it's sealing and dust-free.
7. this machine has ALU-ALU mould or ALU-PVC mould as optional
8. this blister packing machine suitable for pharmaceutical tablet/capsule/pill, food candy/honey/jam/cholocate/oil,helath, medical, and cosmetic and so on
Machine Work process:
1.Forming ( up and down heating)
2.Heating sealing( up heating)
3.Embossing
4.Impression
5.Cutter
6.Finished product output
Main Feature:
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
The machine adopts separation sectional combination: PVC forming, Feeding, Heating sealing for one section; Tropical cold aluminum forming, Heating sealing and cutting for another one section for separately packaging.
It adopts photoelectrical controlling system to make PVC, PTP, be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations..
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for packaging of capsule, tablet, coating pills, syringes, medical instruments electronics and etc.
Blister sample:
Technical Specifications:
Model | DPP80 |
| Punch frequency | 10-35tims/min |
| Production capacity | 2400plates/hour |
| Max. forming area and depth | 90*115*26(mm) |
| Standard stroke range | 20-80mm( can be designed as per user's required) |
| Standard plate size | 80x57mm( can be designed as per user's required) |
| Air pressure | 0.6-0.8Mpa |
| Power supply | 220V 50Hz 2.4Kw |
| Main motor | 0.75Kw |
| PVC hard film | 0.15-0.5*120(mm) |
| PTP aluminum film | 0.02-0.035*1200(mm) |
| Dialysis paper | 50-100g*120(mm) |
| Mould cooling | Tap water or recycling water |
| Overall dimension | 1500*600*1200(mm) |
| Weight | 550kg |
| Noise index | <75dBA |
