Automatic Stick Tea Bag Packing Machine For 2-3grams Tea like green tea, black tea and so on.
The machine can make holes on the film, weight tea, fill, make stick , seal and fill the stick into another bigger bag(it can be stick or 4-side sealing sachet) and seal, cut off and print date and batch number
automatically.
Model DXD-50KF
Machine speed 30-50bags/minute
Bag size range (L)30-160 mm (W) 17mm-100mm
Inner bag size 20*133mm
Outer envelope 35*150mm

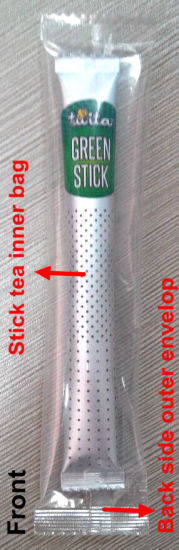

Inner Bag type Stick
Envelope Type 4-side sealing sachet or stick sachet
Filler Volume cup filler
Weight range 1-2g;2-4g;4-8g;5-10g
Maximum film width for packing machine 220mm
Film Material For Sachet Laminated film, laminated paper film, Pure Aluminum film
Voltage Single-phase 220V 50-60Hz
Total Power 3KW
Control system Omron PLC control system
Machine's material Stainless Steel 304(SS304)
Air source 0.6Mpa; 0.25 m3 /minute
Screen Weinview Full touching screen
Motor Servo Motor and Drive
Machine noise ≤80dB
Machine Dimension 1600*600*2100mm
Certificate: CE and Quality Certificate by ENTRY-EXIT INSPECTION AND QUARANTINE OF THE PEOPLE'S REPUBLIC OF
CHINA
