hot sale Multi-Directional Mixer for Pharmaceutical Tester
BSIT-II Multi-functional Pharmaceutical laboratory machine is designed for development of pharmaceuticals in the laboratory. Equipped with some accessory devices (total volume 10L) to meet variety of experimental laboratory perparations, Main drive unit provides touch screen control and PLC control system that makes control more simple and convenient. Including: Oscillating Granulator, Trough Mixer, V-Mixer, Coating Ball, Double Cone Mixer, single-cone Mixer, Oscillating Sifter, Agitator, cube mixer, multi-directional mixer. Accessory Devices are made of 316L stainless steel and all items totally meet GMP standard. Power supply: 220V, 1P/0.55kw
Accessory Devices detailed introduce as following:
Oscillating Granulator
Oscillating Granulator adopts rocking and rotating granular solids to make granular solids pass the desired mesh belt, with its max productivity of 30kg/h, which depends on the materials and the mesh standard. There are screens of two sizes. Mesh is made of SS316L.
Trough Mixer
Trough mixer adopts a Z-chip to rotate in the groove container in different angles. It is made of stainless steel, with the different speed and the outline of stainless chip, it mixes materials very well. The whole container can rotate at a 180 degree after cutting off the power, so it is easy to discharge and to be cleaned.

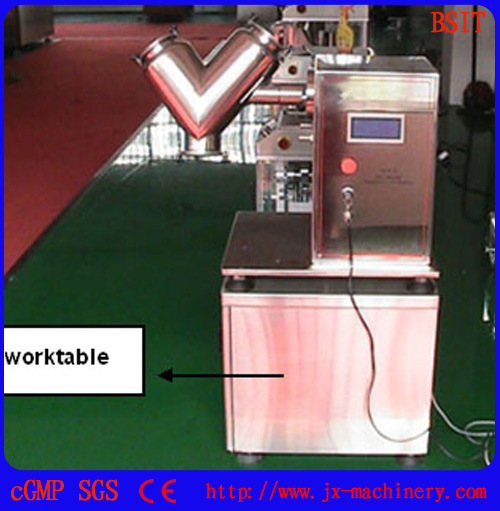

V-Mixer
V-Mixer consists of two cylinders made into asymmetrical, so that the materials produced by the reciprocating motion of the severity of impact, ran the purpose to achieve uniform mixing, with no dead ends, no accumulation of material, speed and so on.
Coating Ball
Coating Ball adopts a linking gear to connect all kinds of coating balls and the driving main engine, facilitating operators to produce coating materials uniformly in a correct angle.
Double Cone Mixer
Double Cone Mixer is used for all free-flowing powder and granules. In the course of the campaign, it can quickly produce multi-dimensional movement and purpose to achieve a perfect mix.
Oscillating Sifter
When it rocking, forces granular and powder through the sifter to acheve particle size selection purposes. The applicance is equipped with two difference mesh sifter.
Agitator
Agitator can mix all kinds of liquid with high and low viscosity. The stirring is finished by artificiality the container and stirrer mixer are both made of SS316L stainless steel.
Cube Mixer
Cube Mixer with three-dimensional motion, to produce a homogeneous blend, extremely gentle mixing action, the device is particularly suitable for sensitive and strong materials. In the linking gear can be any one of 0 ~ 75 ° Angle to make any adjustment to increase or decrease the intensity of mixing action.
Single cone Mixer
Single cone mixer using the latest design concepts, produce a more efficient multi-dimensional motion effects to achieve better mixing effect. This device is widely used in solid powder materical mixing, the use of 316L stainless steel in full compliance with GMP requirements.
Multi-directional mixer
A ball barrel is bind symmetrically on the rotated frame, which is made of stainless steel, making the materical to be processed rotate as it and do three-dimensional motion, so as to rock-over and mix the materical.
Technical data:
| Model | BSIT-II |
| Power | 220V/0.55KW |
| Dimension | 580mmx500mmx600mm |
| Net weight | 50KG |
| Rotating speed | 0-120r/min |
| Accessory capacity | 10L |
