BHY-100-A
BSIT
Shanghai
7sets/week
T/T,Western Union, Money Gram
1set
Carton

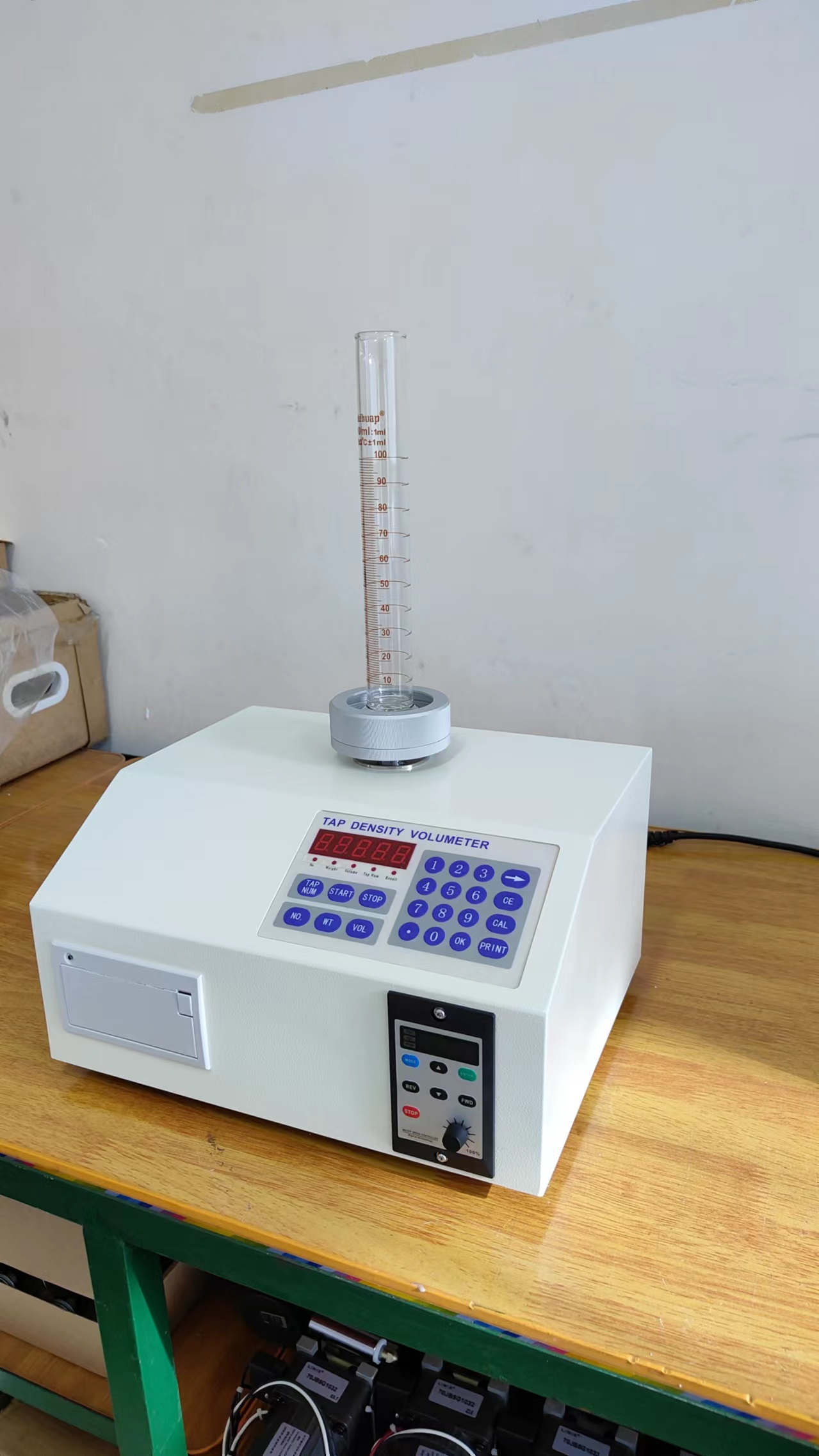

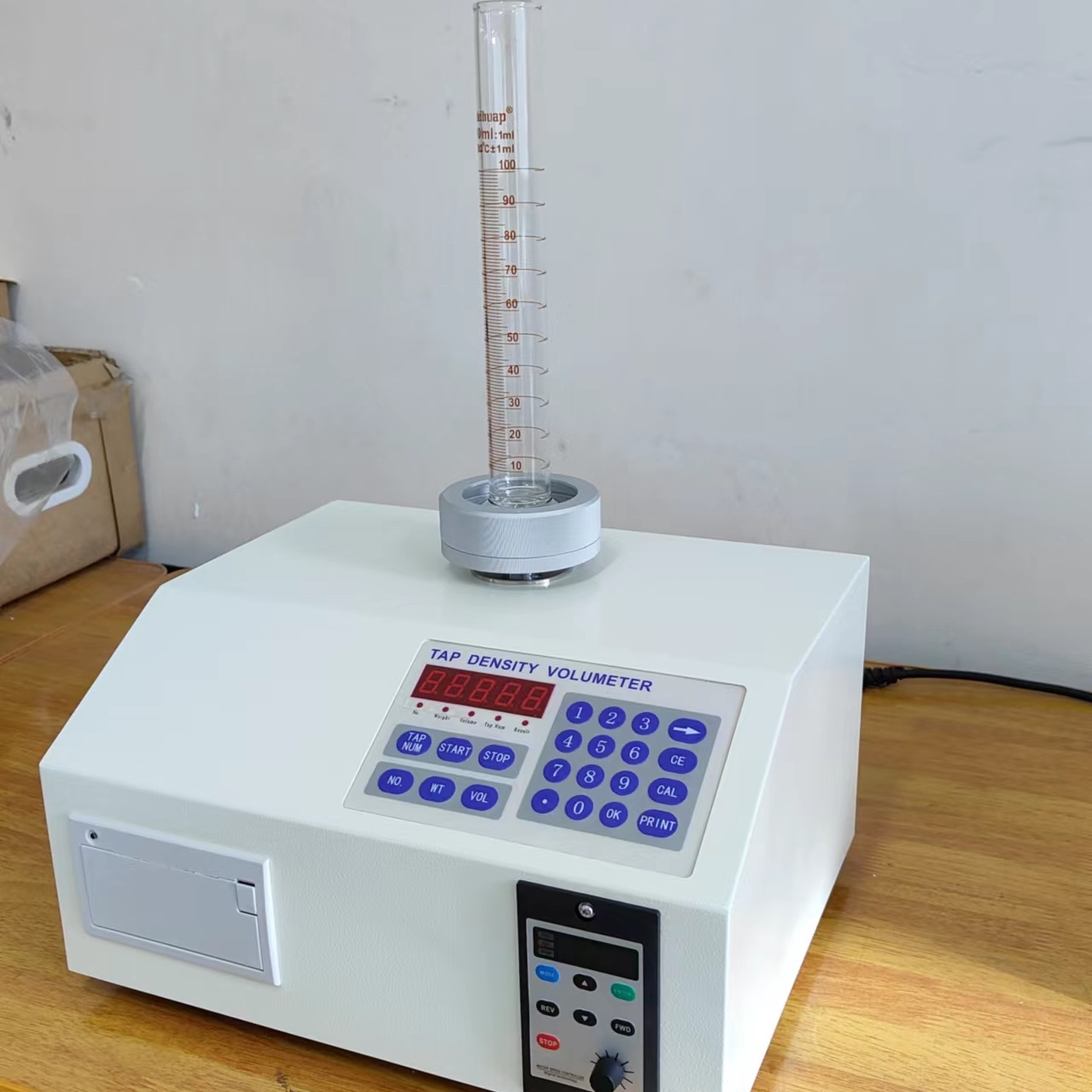

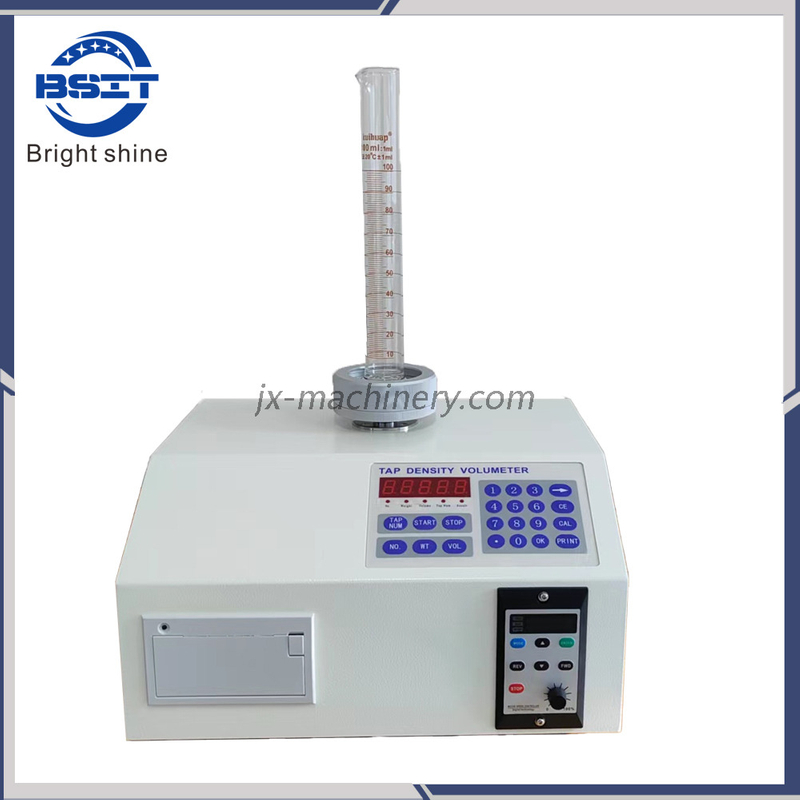

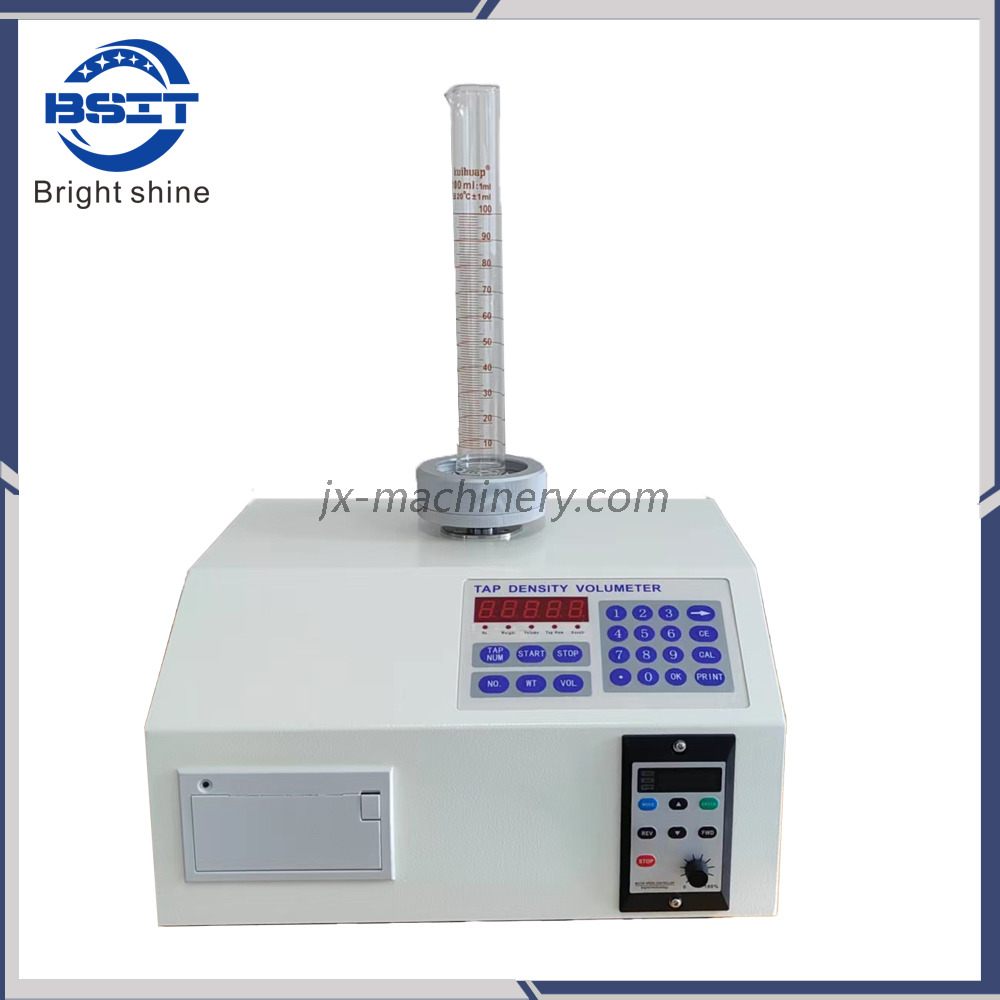

BHY-100A,B,C Powder density tester is based on GB/T5162-2006/ISO3953:1993,ASTM B527.For non-metallic powder,This instrument extended several functions.such as"vibration amplitude" from 3m standard extended to 1mm-15mm;"vibration frequency"from 100-300 times per minute extended to 0-300 times per minute."vibration times"from 3000 times standard extended to 0-99999 times.All of them can be setup freely.

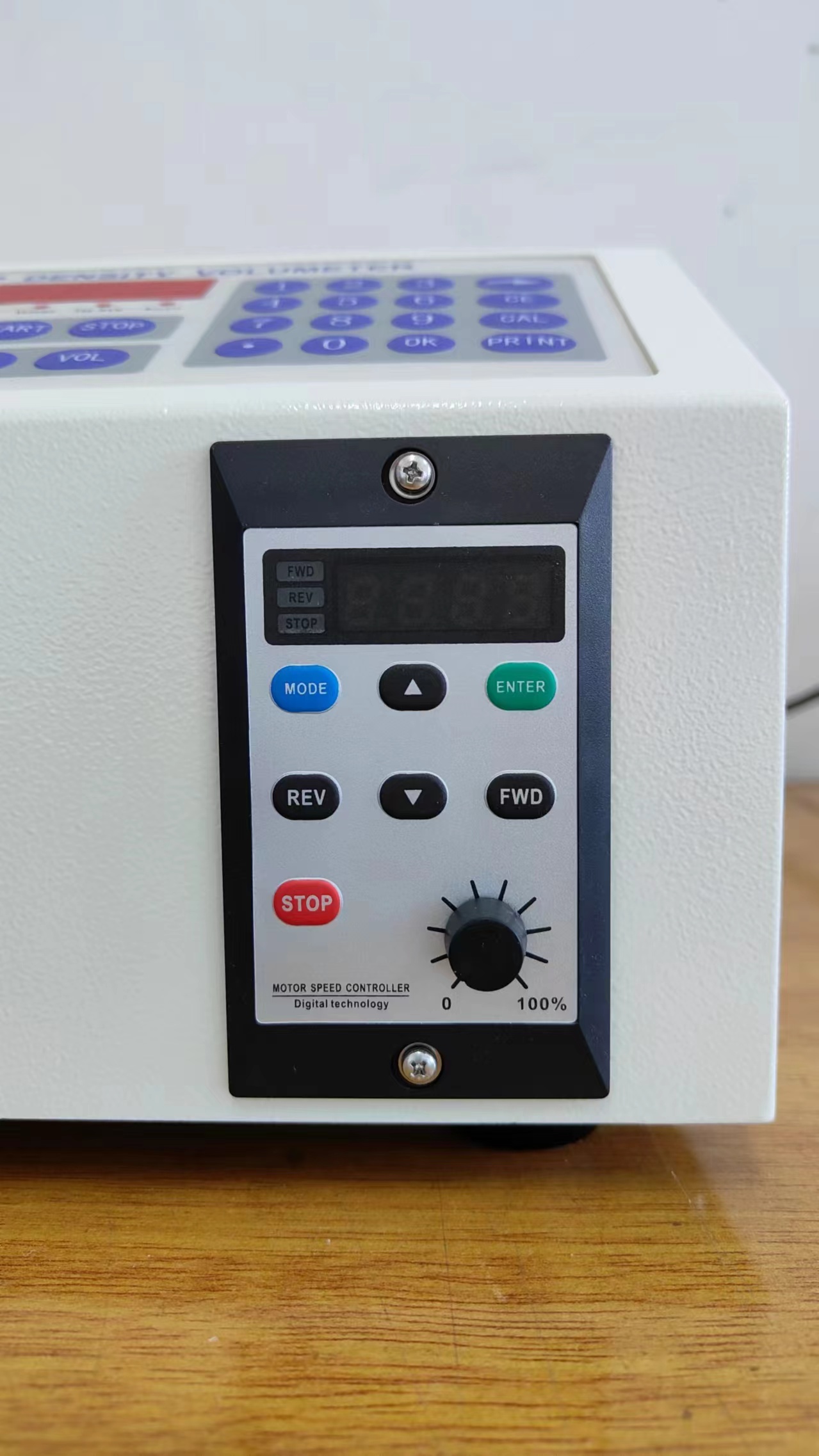

BHY-100A,B,C Powder density tester consists of an adjustable-speed motor,vibration
assembly,micro-computer and micro printer.,etc.It has the feature of compact
structure,stable,and easy operation.,etc.
Technical Parameter
| Weight of the testing object | <=500.00g |
| The volume of testing object | <=250.00ml(standard accessory including 25ml,50ml,100ml,250ml measuring cylinder) |
| Single vibration times | <=0-99999 times(the result will come out as bulk density when input zero times) |
| Allowable motor force | 0.86 N.m. |
| Vibration frequency | maximum 300 round per minute(0-300 round per minute is adjustable,USA pharmacopeia standard is 300 round per minute) |
| Vibration amplitude | maximum 15mm(1mm-15mm is adjustable,International standard is 3mm) |
| Repeatability error | <=1% |
| Accuracy error | <=1% |

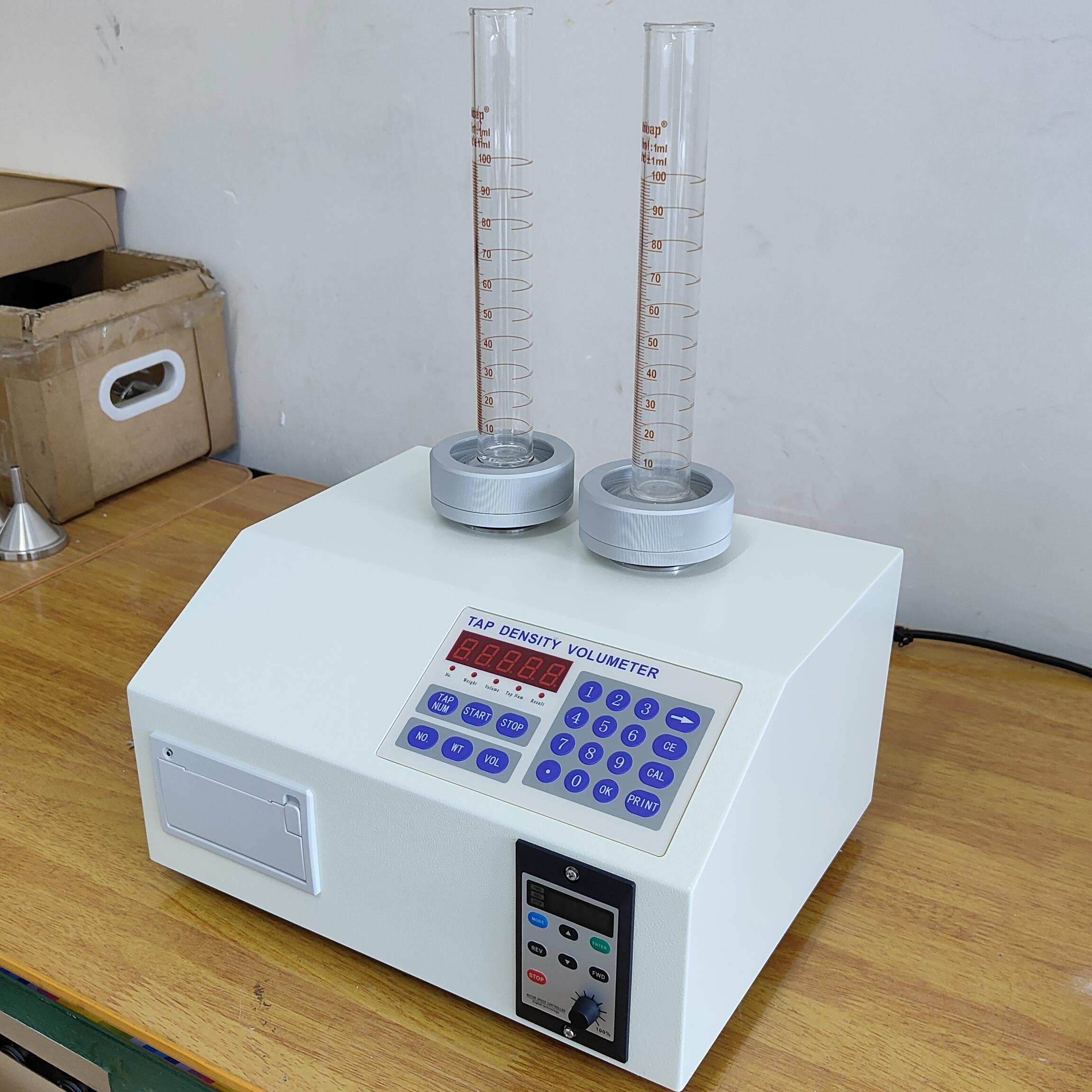

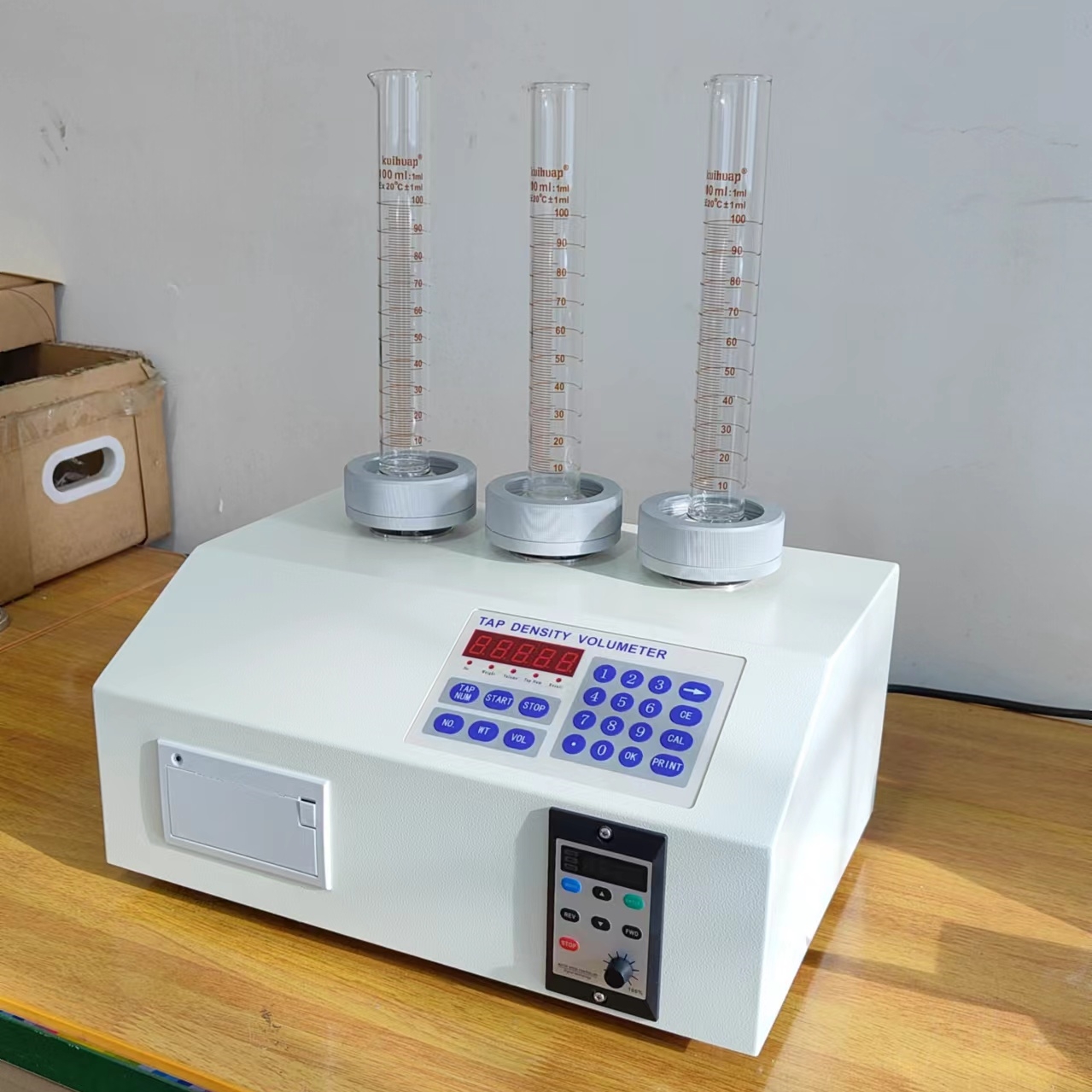

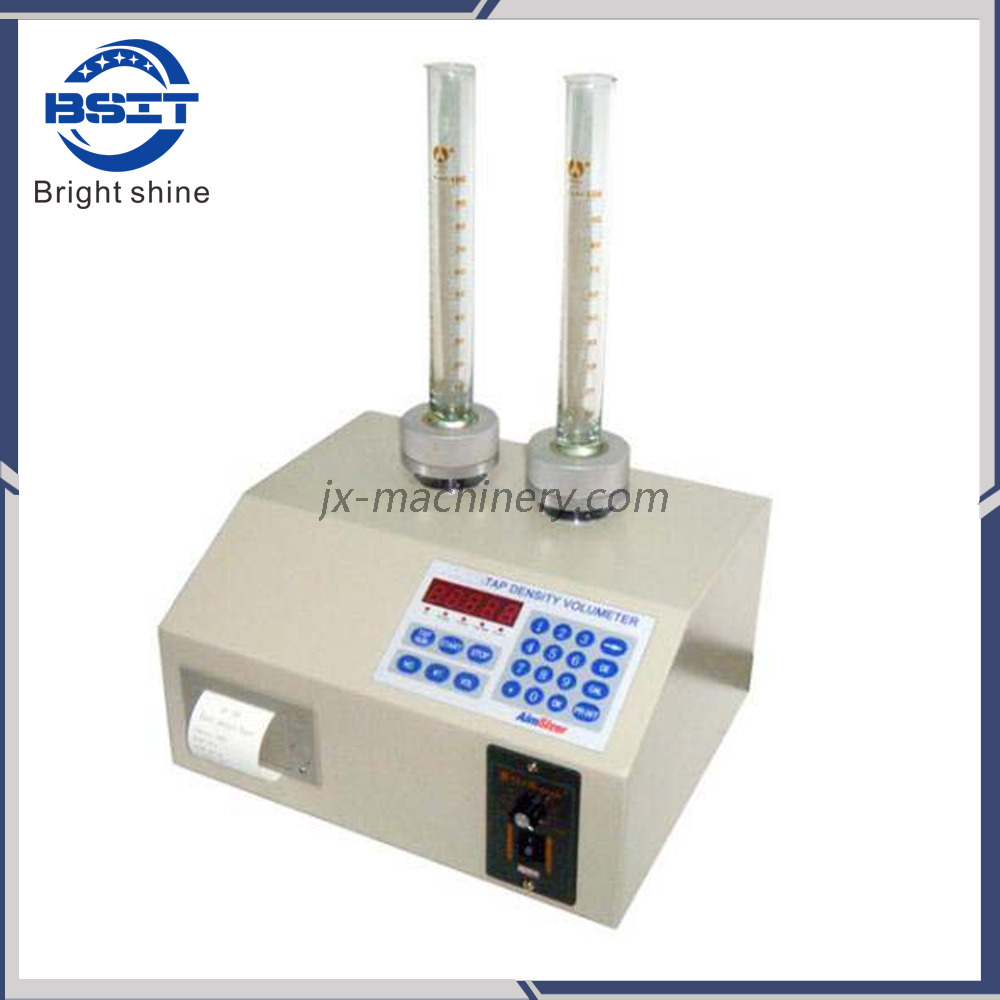

The single tapped density tester with up to 3 workstations to meet different measurement needs and scale up your productivity even further.
| one workstation | two workstations | three workstations |
 |  |  |
BHY-100A,B,C Powder density tester is based on GB/T5162-2006/ISO3953:1993,ASTM B527.For non-metallic powder,This instrument extended several functions.such as"vibration amplitude" from 3m standard extended to 1mm-15mm;"vibration frequency"from 100-300 times per minute extended to 0-300 times per minute."vibration times"from 3000 times standard extended to 0-99999 times.All of them can be setup freely.
BHY-100A,B,C Powder density tester consists of an adjustable-speed motor,vibration
assembly,micro-computer and micro printer.,etc.It has the feature of compact
structure,stable,and easy operation.,etc.
Technical Parameter
| Weight of the testing object | <=500.00g |
| The volume of testing object | <=250.00ml(standard accessory including 25ml,50ml,100ml,250ml measuring cylinder) |
| Single vibration times | <=0-99999 times(the result will come out as bulk density when input zero times) |
| Allowable motor force | 0.86 N.m. |
| Vibration frequency | maximum 300 round per minute(0-300 round per minute is adjustable,USA pharmacopeia standard is 300 round per minute) |
| Vibration amplitude | maximum 15mm(1mm-15mm is adjustable,International standard is 3mm) |
| Repeatability error | <=1% |
| Accuracy error | <=1% |
The single tapped density tester with up to 3 workstations to meet different measurement needs and scale up your productivity even further.
| one workstation | two workstations | three workstations |
| | |
