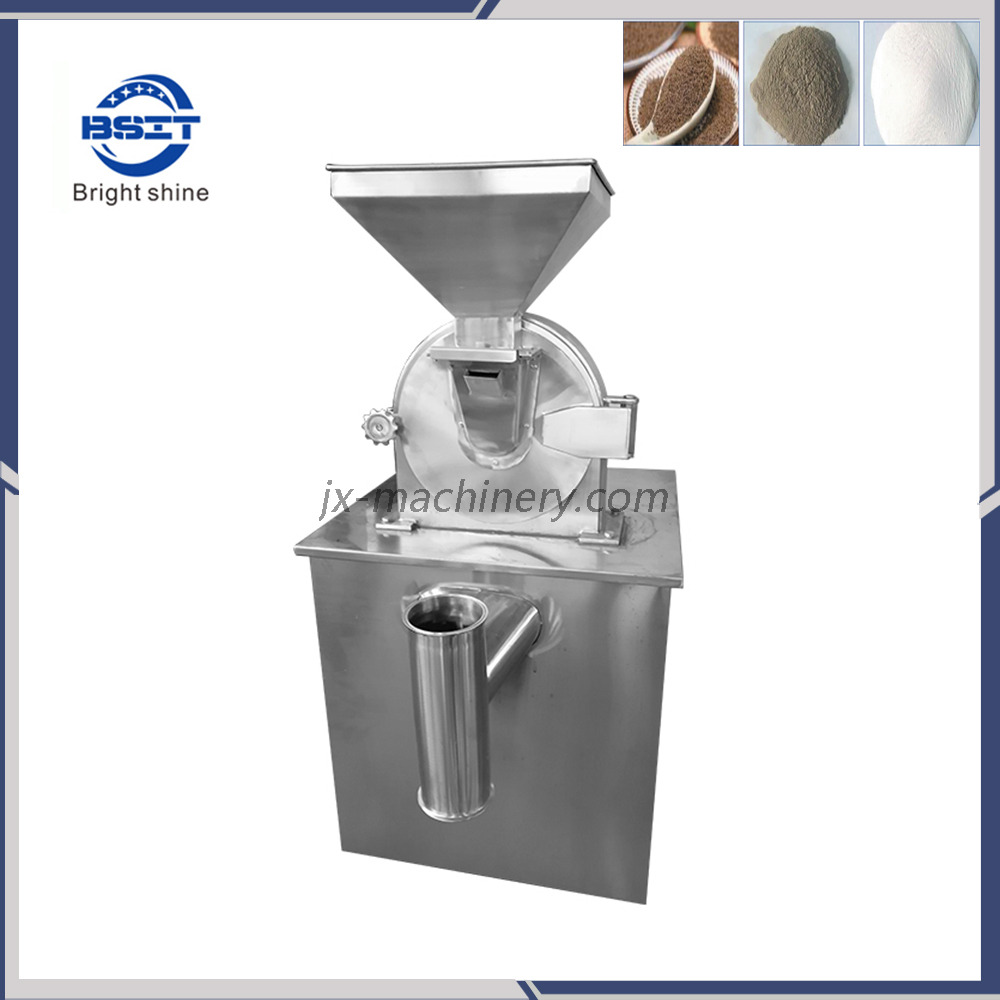

Pharmaceutical Good Quality Universal Grinder Machine (30B) Application: 1.This machine is suitable for the material crushing by the industries of pharmaceutics, chemical and foodstuff etc. cosmetics, pesticides,dyes, resins, shell materials and other materials
2. high efficiency mill by the host, auxiliary equipment, electronic control of three components, compact design, reasonable structure. Grinder built with hierarchical institution, the crushing and grading once. Thermal vacuum conveying the grinding mill machine when operating cavity produced a steady stream discharge, it is also adapted to the crushing heat-sensitive materials. 3.This grinder to adapt a wide range of highly efficient, continuous production process, the particle size is adjustable; capable of handling such as: crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.
4.The grinder set consists of grinder, EXC collector of raw material and ESC collective duster. It solves the problem, i.e. the dust is flying during the period of crushing raw material. 5.The principle of work is as follows: after raw material is fed into the crushing chamber, it undertakes the comprehensive actions such impacted by teeth, shearing force, friction force, impacted between raw materials, finally the raw materials are crushed. Through sieving. The needed powder can be got. 5.The grinder, collector of raw material and ESC collective duster are all made of stainless steel and are in conformity with the requirements of GMP. 6. The relative motion of the machine and stationary use activities chainring teeth interrogations that was crushed by the impact of the teeth or hammer type, the combined effects of friction and physical shock each other to get crushed. The machine structure is simple, robust, stable operation, good crushing effect, crushed material can be discharged directly from the grinding chamber, the particle size by changing different aperture sieve to obtain.
This is Universal Grinder Machine without collective duster.
This is Universal Grinder Machine with collective duster.
This machine uses the relative movement between the active fluted disc and the fixed fluted to impact, grind and crush the target materials. The size of granules can be achieved by changing of the screen
Features: 1) Contact material as SS304l
2) Output 50-300 kg per hour
3)the face plate is glass and thickness is 10mm
4)two lock and top and below at door
5) Silicon sealing
6) Collect material with container
7) Output 50-300 kg.
8) Sieve, 120 mesh 2 pcs.
9) Gearing behind the machine should be full closed.
10)Discharge sleeve ( to connect bin for product with discharge hole)
11)Energy stop button Technical parameters: capacity(kg/h) | 100-300kg |
Main shaft speed(r/mim) | 3800 r/min |
Size of input granules | < 10mm |
Size of output granules | 12-120 mesh |
