NJP Capsule Filling Machine

This is a newly created full-automatic closed intermittent capsule filling machine with multiple tamping stations. It completes the following
 process: feeding capsule, detaching capsule, filling, ejecting defective capsule, closing capsule, discharging finished capsule automatically.

  • NJP
  • BSIT
  • 8422303090
  • shanghai seaport china
  • 30-50 sets per year
  • L/C, T/T, Western Union, Paypal, Money Gram
  • 1 set
  • export case

            Automatic Herbal #0 Hard Gelatin Pellet Capsule Power Capsule Filling Machine (NJP1200)


hard capsule filling machine-汇总
Why choose our automatic Capsule filling machine?

1.PLC Control and electrical components choose the international famous brand, such as MITSUBISHI, Siemens, SCHNEIDER, OMRON and so on, nicely, safely, reliability.
2. Screen control with computer windows scenically, advanced, efficient.
3. Advanced SEW motor and Siemens vacuum pump guarantee the stability of the machine.
4. The machine adopt the High-tech imported cam graduation system, which guarantee high performance, stable running, high graduation precision, compact structure, low noise.


Our Machine good features:

This machine can be equipped with vacuum loader for capsules and powder, which reduces the employer cost, all the operation is conducted on the touch screen, which is a highly automation machine of water, electricity and pneumatic.

1.Accurate orientation, Capsule vacuum positioned mechanism to make the capsule upload percentage over 99%.
2.Freely adjusting dosage, easy speed selection and closed capsule length adjustment.
3.PLC program control panel with LCD .touch screen operation, and monitoring function.
4.Displaying in-time speed and accumulative output.
5.Auto-trouble shooting, lack of material, lack of capsule, block in material channel and other mechanical trouble with be show on HMI ,Machine stop
6.Electrical Appliance control system approved to CE, and international standard.
7.Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
8.Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
9.working station cam runs under the good lubricating condition, extends the operating life of change parts. All the Precious are made by USA HASS and DMG CNC machine.

10. Alarm list
a. Alarm when doors and windows are opened
b. Main motor inverter alarm
c. Feeding motor overload alarm
d. Lock of  capsules alarm
e. Lcok of  powder  alarm
f. Scram alarm
g. Off phase and phase sequence alarm protection
h. Vacuum overload alarm
i. Dust collector overload alarm

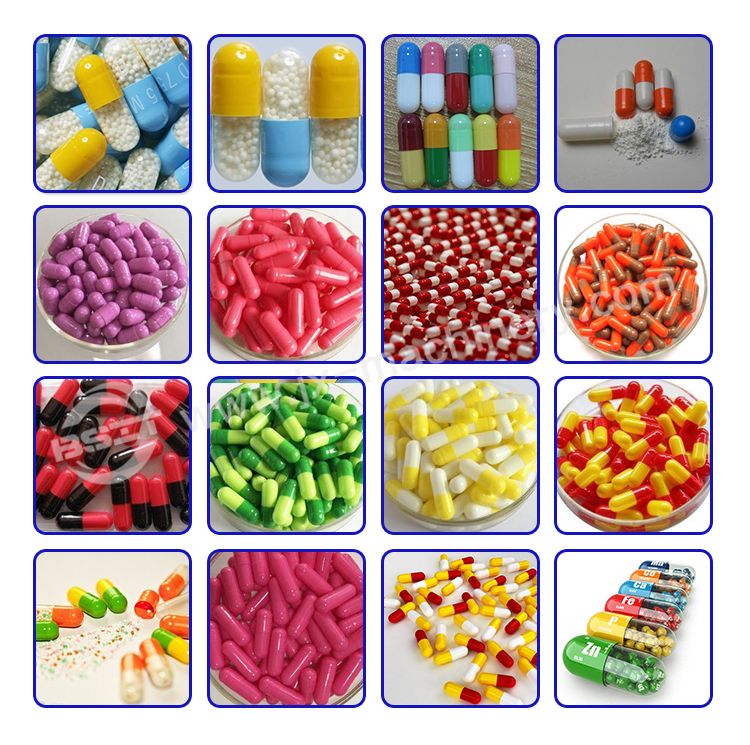

Capsule sample:

胶囊成品,

Main Technical Data

NameNJP500NJP800NJP1200
No. of die orifice469
Max output (capsules/h)300004800072000
Vacuum27m3/h -0.02-0.08Mpa
Capsule numberNo. 00-5
Filling percentage≥ 99%
Filling difference< ± 3
Idle load noise db(A) < 70
Power380V 50Hz 3KW
Size L x W x H (mm)800x750x1950
Weight (kg) 850
