DGN-II
BSIT
Shanghai, China
50 Sets/Month
T/T, Western Union, Paypal, Money Gram
Laboratory Tester Multi-Function Pharmaceutical Machinery Testing (DGN)

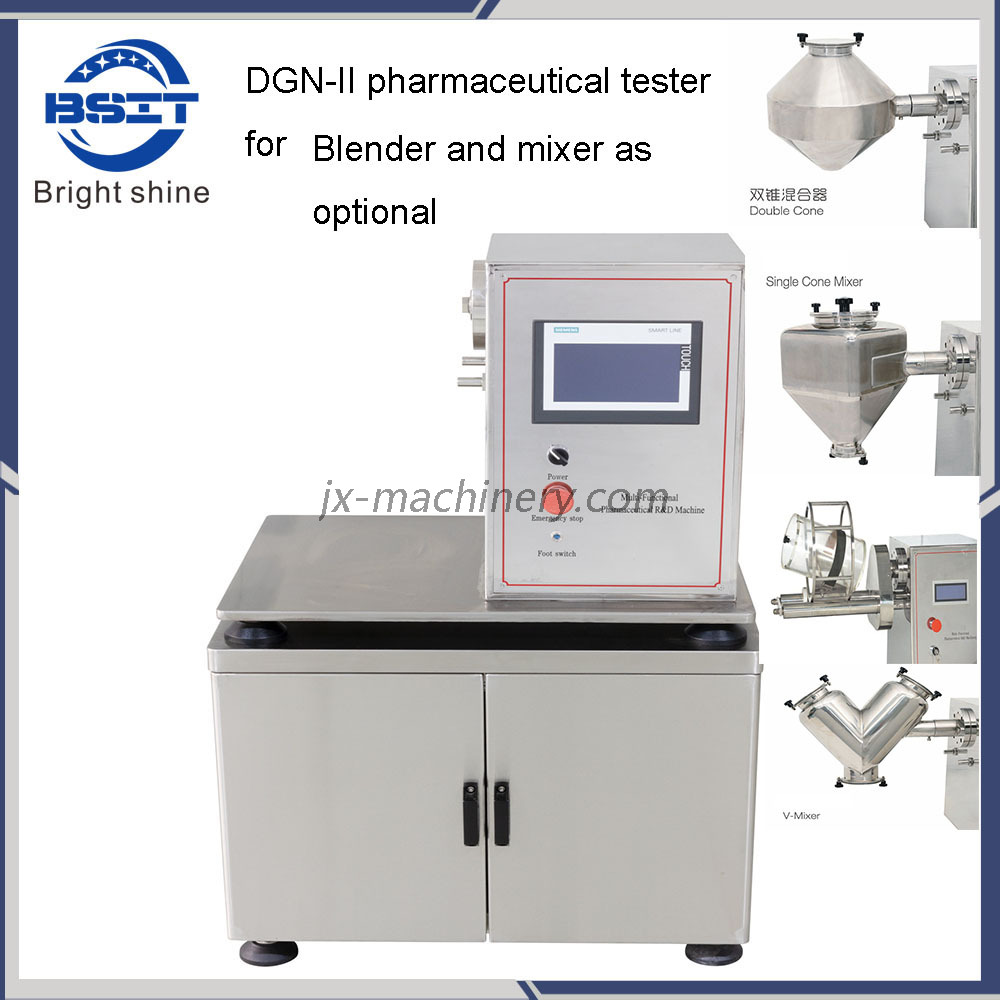

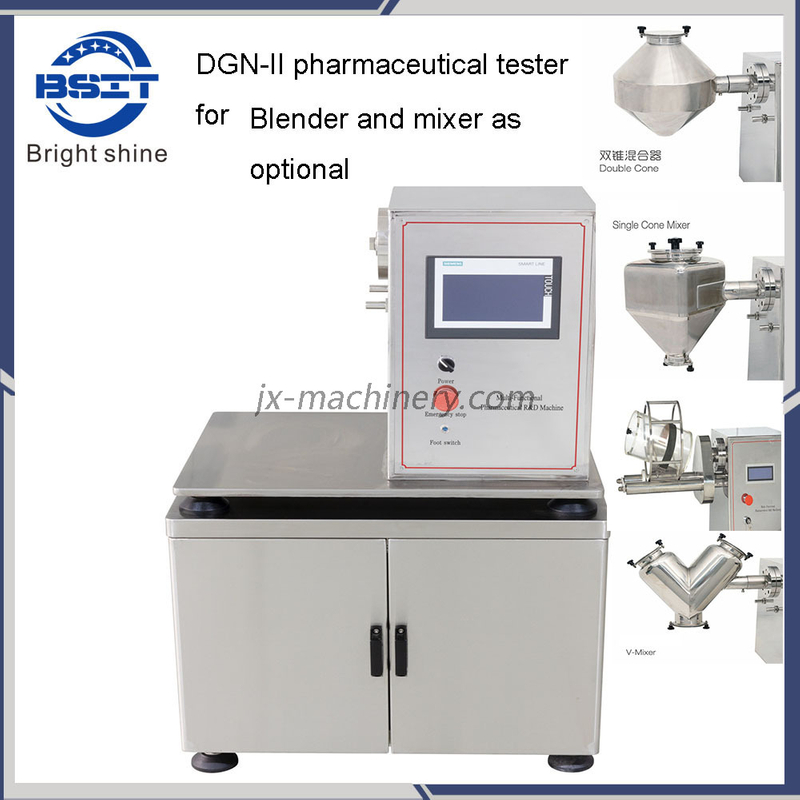

DGN-II Multi-functional Pharmaceutical laboratory machine is designed for development of pharmaceuticals in the laboratory. Equipped with some accessory devices (volume 10L) to meet different laboratory test purpose, including: Oscillating Granulator, Trough Mixer, V-Mixer, Coating Ball, Double Cone Mixer, Square-taper Mixer, Oscillating Sifter, Agitator, Cubic Mixer.
Power supply: 220V, 1P.
Accessory Devices
Oscillating Granulator
Oscillating Granulator adopts rocking and rotating granular solids to make granular solids pass the desired mesh belt, with its max productivity of 30kg/h, which depends on the materials and the mesh standard. There are screens of two sizes.
Trough Mixer
Trough mixer adopts a Z-chip to rotate in the groove container in different angles. It is made of stainless steel, with the different speed and the outline of stainless chip, it mixes materials very well. The whole container can rotate at a 180 degree after cutting off the power, so it is easy to discharge and to be cleaned.
V-Mixer
V-Mixer consists of two cylinders made into asymmetrical, so that the materials produced by the reciprocating motion of the severity of impact, ran the purpose to achieve uniform mixing, with no dead ends, no accumulation of material, speed and so on.
Coating Ball
Coating Ball adopts a linking gear to connect all kinds of coating balls and the driving main engine, facilitating operators to produce coating materials uniformly in a correct angle. It is possible to equip with an electric air heater with a fixed pole above the ball, to drying promptly.
Double Cone Mixer
Double Cone Mixer is used for all free-flowing powder and granules. In the course of the campaign, it can quickly produce multi-dimensional move- ment and purpose to achieve a perfect mix.
Oscillating Sifter
When rocking, it forces the granular solids to be screened by mesh, so you can choose the desired materials of mesh standard. There are screens of two sizes.
Agitator
Agitator can mix all kinds of liquid with high and low viscosity. The stirring is finished by artificiality the container and stirrer mixer are both made of stainless steel.
Cubic Mixer
Cubic Mixer using three-dimensional rolling action to produce uniform blending, mixing action extreme moderate, the device particularly suitable for sensitive and strong materials. Gear in general, can be 0 ~ 75 ° Angle for any arbitrary adjustment to increase or decrease the intensity of mixing action. With the strategic side cloth body was three rows of stainless steel rods to supplement the mixing of materials.
Technical data:
| Model | DGN (BSIT-II) |
| Power | 220V/0.37KW |
| Dimension | 500mmx400mmx510mm |
| Net weight | 50KG |
| Rotating speed | 0-120r/min |
| Accessory capacity | 10L |
