FM450 Automatic Box Shrink Film Packing Machine

  • Shanghai, China
  • 30-180bag/Min
  • L/C, T/T, Western Union, Paypal, Money Gram
  • FM450
  • Pallet Wrapping Machine
  • Pre Tension
  • T Series - Pallet Wrapping Machine
  • Heat Shirnk Wrapping Machine
  • 30-180bag/Min
  • Length 70-400mm, Width: 32-200mm, Height: 5-120mm
  • Length X Width: 7200mmx 965mm
  • 3.7kw, One Phase 220V
  • 1000kg
  • Paper/PE, OPP/PE, OPP/Al/PE etc, Packing Materials
  • Box Wrapping Machine
  • BSIT
  • Wooden Case
  • meet with GMP standards
  • Made in China
  • 8422400000
  • Film Packing
  • Soap Shrink Film Packing Machine
  • Pneumatic
  • Beverage
  • Automatic
  • Fully Wrapped Winding Machine
FM450 Automatic box Shrink Film Packing Machine


FM450 Automatic Box Shrink Film Packing Machine


Mechanical feature:

1. This machine can packing single or group, it is a automatic hot shrink film packing machine that design for assembly line and mass packing

2. Users can choose automatic feeder to realize no works operation feeding base the detailed specification of products, kinds of conveyor to ensure material no moving or threshing.

3. No damage packing product and increase the efficiency by anti -cut safety clutch device

4. Line type sealed after packing, clear and beautiful.

5. Adjust belt length, speed, temperature lonely, easy and accuracy.

Electrical feature:


1. PLC: Use imported PLC, inverter control, realize continuously variable transmission control, adjusting during running dynamically.

2. New vertical sealing heating, sealed in low temperature, reduce hear film

3. There are two temperature zone in hot shrink stove, control temperature automatic

4: High efficiency hot air cycle, ensure shrink quality

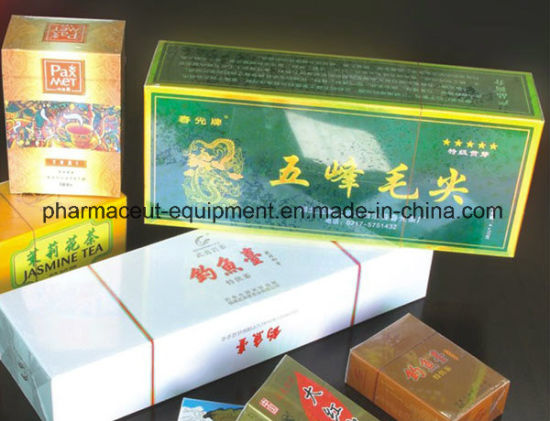

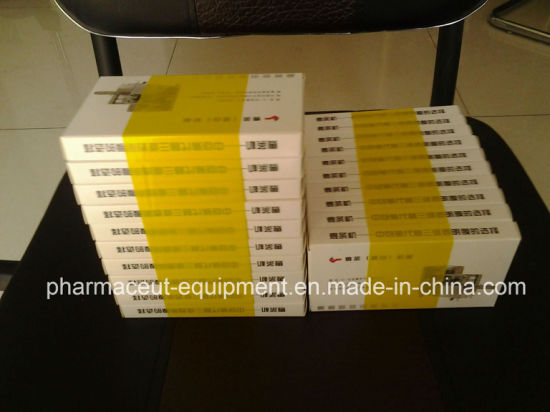

Finished product:

FM450 Automatic Box Shrink Film Packing Machine
Technical data:
1 Packing capacity: 30-180bag/min
2 Packing specification: Length 70-400mm, width: 32-200mm, height: 5-120mm
3 Total dimensions: Length x width: 7200mmx 965mm
4 Power: 3.7kw, one phase 220V
5 Total weight: 1000kg
6 Packing material: Paper/PE, OPP/PE, OPP/AL/PE etc, packing materials that are suitable for heating


sealing.
FM450 Automatic Box Shrink Film Packing Machine
FM450 Automatic Box Shrink Film Packing Machine
FM450 Automatic Box Shrink Film Packing Machine
FM450 Automatic Box Shrink Film Packing Machine
